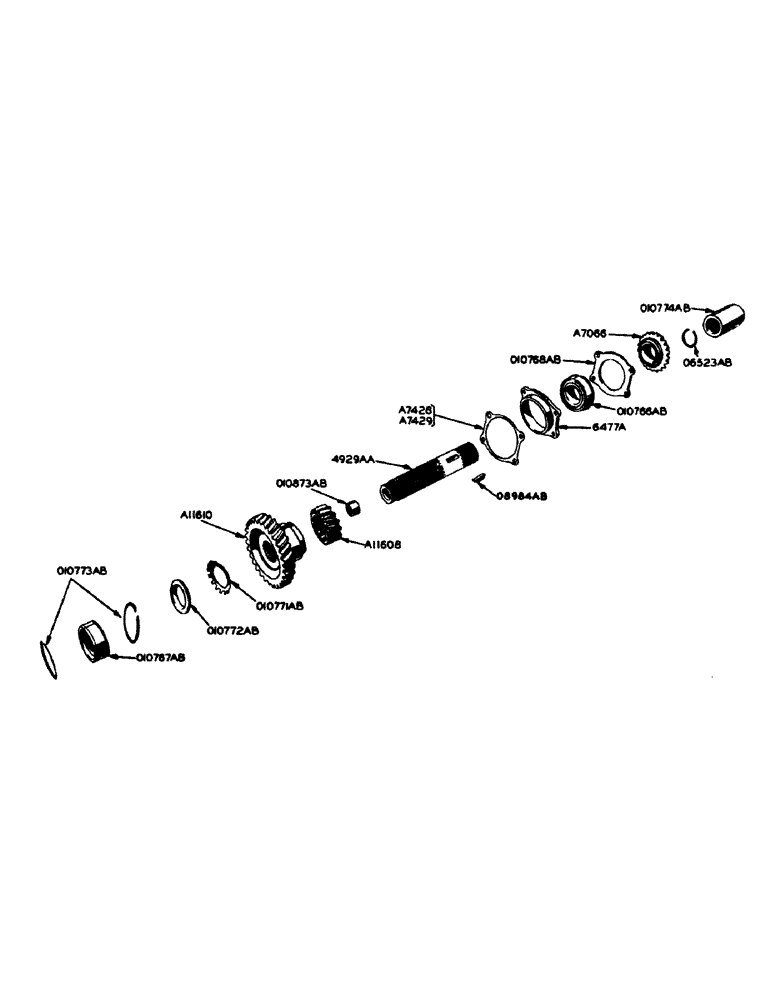

Запчасти Case IH 700 (118) - RANGE DRIVE SHAFT, "700" SERIES (06) - POWER TRAIN

A7066

PINION, belt pulley drive, on range drive shaft

1шт.

A7428

SHIM, for 6477A bearing carrier (.003")

4шт.

A7429

SHIM, for 6477A bearing carrier (.005")

6шт.

A8344

WRENCH, spanner, for 010772AB range drive shaft gear lock nut

1шт.

A11608

GEAR, low range drive helical

1шт.

A11610

GEAR, high range drive helical

1шт.

6477A

CARRIER, bearing, range drive shaft, front

1шт.

4929AA

SHAFT, range drive, with 010873AB bushing

1шт.

O6523AB

X

SNAP RING, range drive shaft

1шт.

O8984AB

X

KEY, Woodruff, range drive shaft

1шт.

O10766AB

X

BEARING, range drive shaft, front (new departure #45510)

1шт.

O10767AB

X

BEARING, range drive shaft, rear (hyatt #1207-TAS)

1шт.

O10768AB

PLATE, range drive shaft front bearing retainer

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

4шт.

O10771AB

X

LOCKWASHER, range drive shaft gear

1шт.

O10772AB

X

LOCK NUT, range drive shaft gear

1шт.

O10773AB

X

SNAP RING, range drive shaft rear bearing

2шт.

O10774AB

COUPLING, range drive shaft, front

1шт.

O10873AB

X

BUSHING, in rear of range drive shaft, for PTO and hydraulic pump drive shaft

1шт.
