Запчасти Case IH 700 (114) - TRANSMISSION CASE (06) - POWER TRAIN

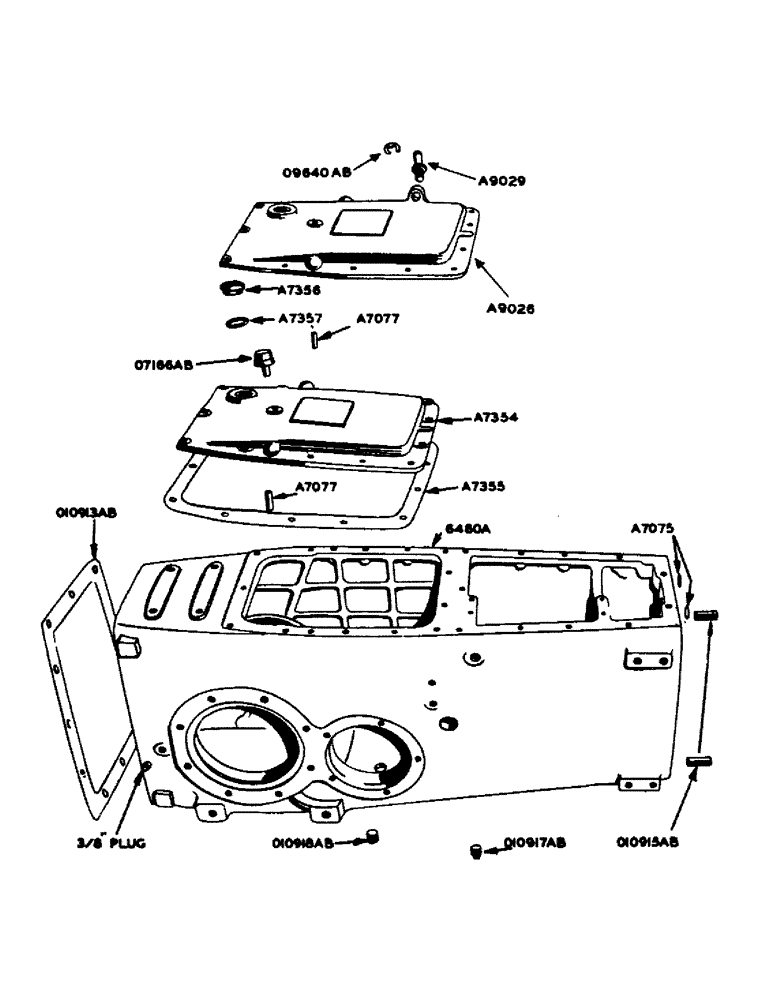

Схема запчастей Case IH 700 - (114) - TRANSMISSION CASE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7075

GASKET

GASKET, rubber, for top dowel pin (010915AB) between transmission case and clutch housing

1шт.

A7075

GASKET

GASKET, rubber, transmission case oil transfer hole

1шт.

A7075

GASKET

GASKET, rubber, transmission case front end

1шт.

A7077

DOWEL

PIN, transmission case to A7354 rear top cover

2шт.

A7354

COVER, top, transmission case rear (see A9026)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher (std. 4-wheel tractor)

12шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher (general purpose)

10шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.C. hex bolt w/lockwasher (general purpose)

2шт.

A7355

GASKET

transmission case rear top cover

1шт.

A7356

PLUG

transmission oil filler

1шт.

A7357

GASKET, transmission oil filler plug

1шт.

A8611

PLUG, for brake cross shaft holes (for orchard models)

2шт.

A8612

STUD, for brake ratchet stud hole (for orchard models)

1шт.

A9026

COVER, top transmission case rear (for tractors w/hand clutch) (see A7354)

1шт.

A11220

PLATE, transmission breather baffle

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" N.C. hex bolt w/lockwasher

2шт.

6480A

CASE, transmission

1шт.

NSS

NOT SOLD SEPARAT

3/8" sq. hd. pipe plug

1шт.

O7166AB

X

BREATHER, transmission case

1шт.

O10913AB

X

GASKET, hydraulic housing to transmission case

1шт.

O10915AB

X

DOWEL PIN, transmission case to clutch housing

2шт.

O10917AB

PLUG, sq. hd. pipe, 3/4" Lisle magnetic

1шт.

O10918AB

PLUG, sq. hd. pipe, 1" Lisle magnetic

1шт.

Выбрано товаров: 23
