(113) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY, SPECIAL

Запчасти Case IH 700 (113) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY, SPECIAL (06) - POWER TRAIN

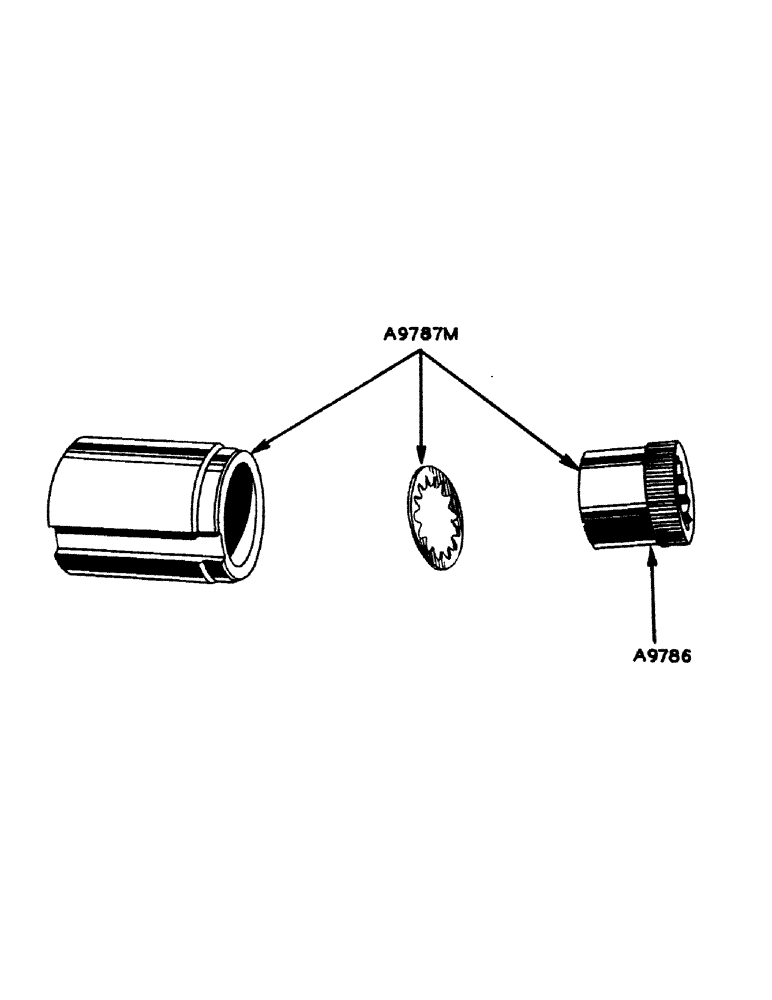

Схема запчастей Case IH 700 - (113) - BELT PULLEY SHEAVE ADAPTER SLEEVE ATTACHMENT, LESS PULLEY, SPECIAL (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9786

NUT, belt pulley adapter socket (1" - 14 N.F. thrd.)

1шт.

NSS

NOT SOLD SEPARAT

1" int. tooth Shakeproof lockwasher #1236-00

1шт.

A9787M

SLEEVE, belt pulley adapter, with 1 - A9786 nut and 1 - 1" int. tooth Shakeproof lockwasher #1236-00 (machy, item)

1шт.
