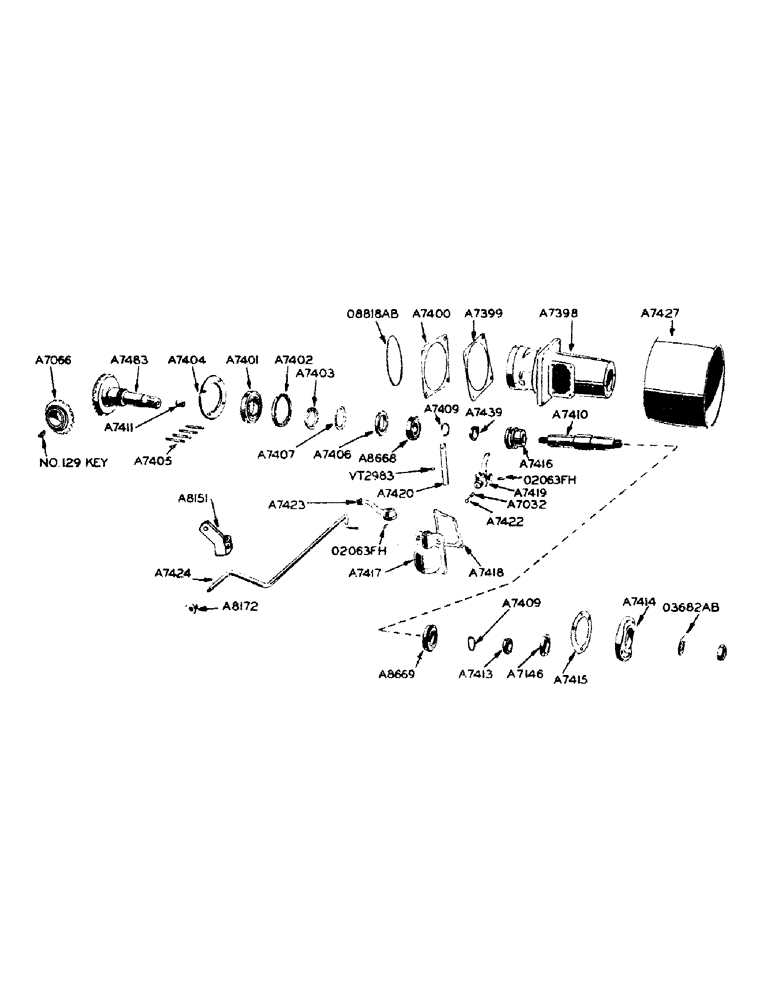

Запчасти Case IH 700 (112) - BELT PULLEY, "700" SERIES (06) - POWER TRAIN

A7032

SPRING

belt pulley clutch detent plunger

1шт.

A7066

PINION, belt pulley drive, on range drive shaft

1шт.

NSS

NOT SOLD SEPARAT

No. 129 Woodruff key

1шт.

A7146

OIL SEAL

belt pulley shaft outer

1шт.

A7398

HOUSING, belt pulley drive

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

4шт.

A7399

SHIM, belt pulley housing (.003")

4шт.

A7400

SHIM, belt pulley housing (.005")

9шт.

A7401

BEARING, belt pulley inner (new departure no. 77511)

1шт.

A7402

SPACER, belt pulley inner bearing, large

1шт.

A7403

SPACER, belt pulley shaft inner bearing, small

1шт.

A7404

PLATE, belt pulley inner bearing retaining

1шт.

A7405

STUD, belt pulley inner bearing retainer

4шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex nut and lockwasher

4шт.

A7406

LOCK NUT

LOCKNUT, belt pulley inner bearing

1шт.

A7407

X

LOCKWASHER, belt pulley inner bearing

1шт.

A7409

SNAP RING,#137, Ext

RING, snap, , belt pulley shaft center and outer bearings #137, Ext

2шт.

A7410

SHAFT, belt pulley, outer

1шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex jam nut

1шт.

A7411

BUSHING, belt pulley shaft pilot

1шт.

A7413

SLEEVE, belt pulley outer shaft

1шт.

A7414

CAP, end, belt pulley housing

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher

3шт.

A7415

GASKET, belt pulley housing end cap

1шт.

A7416

SLEEVE, belt pulley clutch sliding

1шт.

A7417

HOUSING, belt pulley clutch

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher

4шт.

A7418

GASKET, belt pulley clutch housing

1шт.

A7419

FORK, belt pulley clutch

1шт.

A7420

SHAFT, belt pulley clutch fork

1шт.

A7422

PLUNGER, belt pulley clutch detent

1шт.

A7423

LEVER, belt pulley clutch

1шт.

A7424

ROD, belt pulley clutch

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin

1шт.

A7427

PULLEY, belt

1шт.

A7439

COLLAR, belt pulley clutch stop

1шт.

A7483

SHAFT AND GEAR, belt pulley, with A7411 bushing

1шт.

A8151

SUPPORT, belt pulley clutch control rod

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-3/4" N.C. hex bolt w/lockwasher

1шт.

A8172

KNOB, belt pulley clutch hand control

1шт.

NSS

NOT SOLD SEPARAT

1/4" Shakeproof internal tooth lockwasher #1214-00

1шт.

A8343

GAUGE, for setting belt pulley drive gears

1шт.

A8348

ARBOR, for pressing A7411 bushing into belt pulley inner shaft

1шт.

A8668

BEARING, belt pulley shaft center (new departure no. 7507)

1шт.

A8669

BEARING, belt pulley shaft outer (new departure no. 47207)

1шт.

O3682AB

LOCKWASHER, belt pulley outer shaft

1шт.

O8818AB

X

"O" RING, belt pulley drive housing

1шт.

O2063FH

X

ROLL PIN, 1 for belt pulley clutch lever and 1 for belt pulley clutch fork (3/16" x 1-1/8")

2шт.

VT2983

X

"O" RING, belt pulley clutch fork shaft

1шт.
