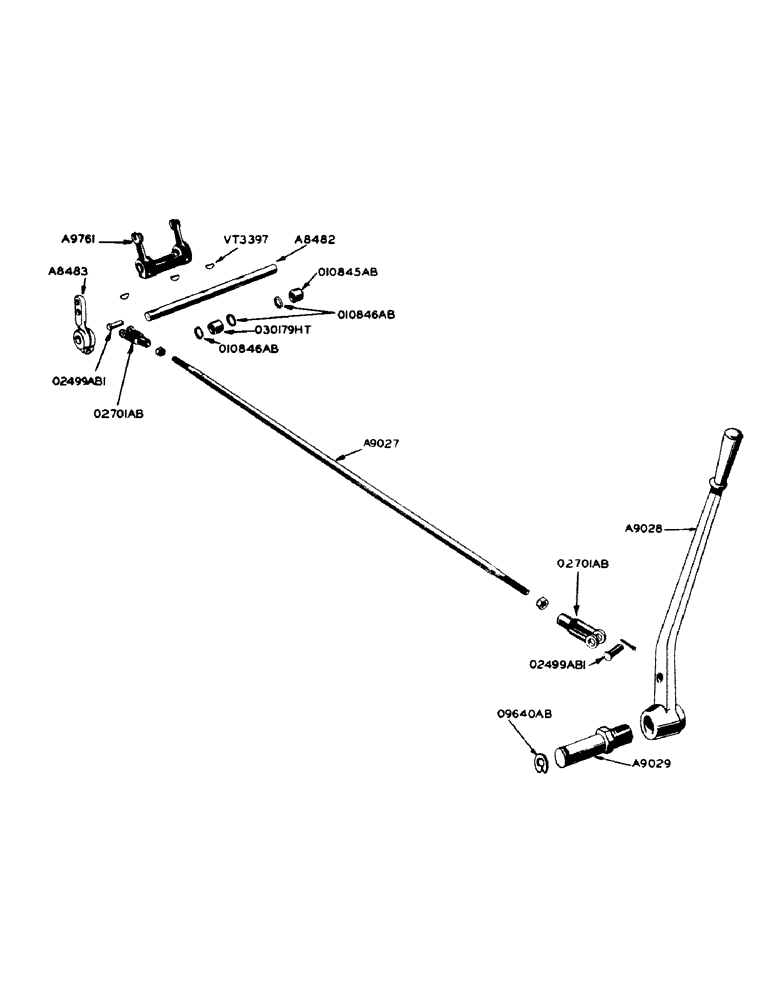

Запчасти Case IH 700 (111) - HAND CLUTCH THROWOUT PARTS, FOR STANDARD AND SPECIAL 4-WHEEL TRACTORS, " 700 " SERIES (06) - POWER TRAIN

A8482

SHAFT, clutch throwout

1шт.

A8483

LEVER, clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" N.F. hex bolt w/hex nut and lockwasher

1шт.

A9027

ROD, clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut

2шт.

A9028

LEVER, clutch hand

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

A9029

STUD, clutch hand lever

1шт.

A9761

YOKE

clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

6499A

X

YOKE, clutch throwout (use A9761)

1шт.

O2499AB1

X

PIN, clutch throwout rod yoke end

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

O2701AB

X

YOKE END, clutch throwout rod

2шт.

O9640AB

X

"E" RING, clutch hand lever stud

1шт.

O10845AB

X

BEARING, needle, clutch throwout shaft, closed end (Torrington no. M16161)

1шт.

O10846AB

X

OIL SEAL, clutch throwout shaft

3шт.

O30179HT

X

BEARING, needle, clutch throwout shaft, open end (Torrington no. B1616-OH)

1шт.

VT3397

KEY, for A8482 shaft (woodruff #15 hardened)

3шт.
