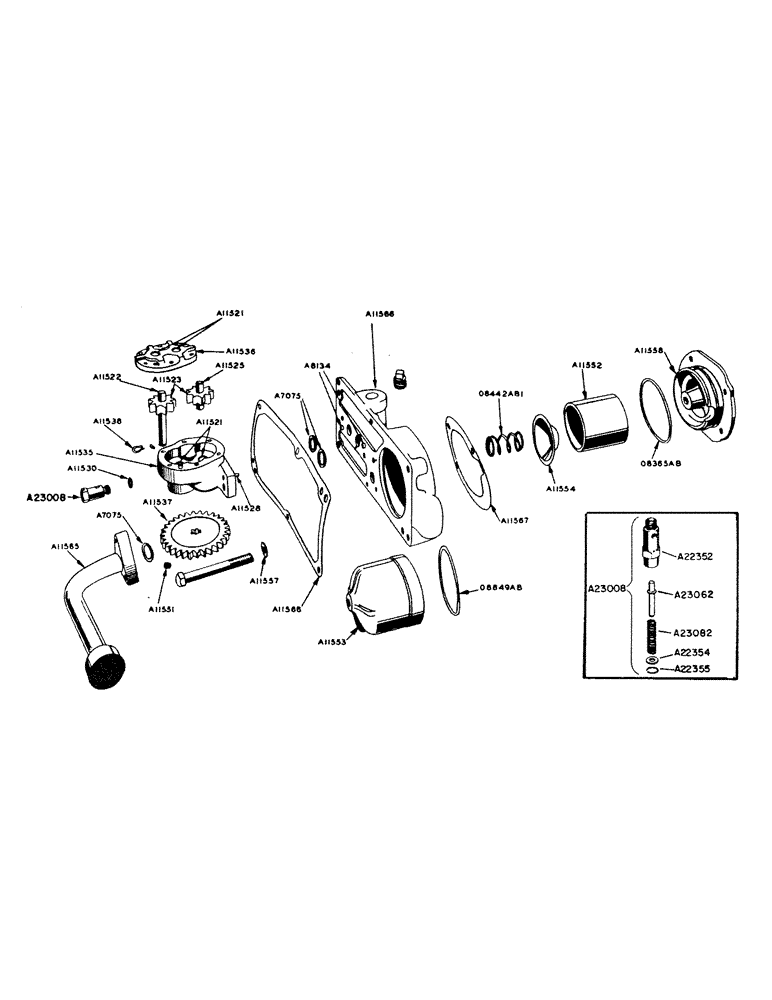

Запчасти Case IH 700 (108) - CONVERTER OIL PUMP, MANIFOLD AND FILTER, "800" SERIES (06) - POWER TRAIN

A7075

GASKET

GASKET, oil pump housing

2шт.

A11520

HOUSING, oil pump (use A11535)

1шт.

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

oil pump shaft

4шт.

A11522

SHAFT

oil pump drive

1шт.

A11523

GEAR

oil pump

2шт.

NSS

NOT SOLD SEPARAT

#3 1/8" x 1/2" dia. woodruff key

2шт.

A11525

SHAFT

oil pump idler gear

1шт.

A11527

COVER, oil pump (use A11536)

1шт.

A11528

PIN,7.81mm OD x 14.29mm L

DOWEL PIN, oil pump

2шт.

A11530

GASKET

oil pump relief valve

1шт.

A11534

PUMP, HYDRAULIC

PUMP, oil assembly

1шт.

A11535

HOUSING, oil pump w/bushings

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" (NC) fin. hex hd. bolt w/lockwasher

6шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" (NC) fin. hex hd. bolt w/lockwasher

2шт.

A11536

COVER, oil pump w/bushings

1шт.

A11537

GEAR

oil pump main drive

1шт.

NSS

NOT SOLD SEPARAT

#3 1/8" x 1/2" woodruff key

1шт.

A11538

SNAP RING,#50, Ext

RING, snap, , oil pump drive shaft #50, Ext

1шт.

A11551

SCREW, oil pump main drive gear, set

1шт.

A22352

BODY, oil pump relief valve

1шт.

A22354

WASHER

valve spring retainer

1шт.

A22355

SNAP RING, internal

1шт.

A23008

KEY

VALVE, oil pump relief, with A11530 gasket

1шт.

A23062

PISTON, oil pump relief valve

1шт.

A23082

SPRING

oil pump relief valve

1шт.

A7075

GASKET

GASKT, oil manifold intake pipe, and filter

1шт.

A8134

PIN

DOWEL PIN, torque converter oil manifold, and filter

2шт.

A11552

ELEMENT

filter, oil, and manifold

1шт.

A11553

HOUSING

oil filter, and manifold

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" (NC) fin. hex hd. bolt w/lockwasher, oil filter and manifold

4шт.

A11554

RETAINER, filter spring, oil, and manifold

1шт.

A11557

GASKET

GASKET, filter bolt, oil, and manifold

1шт.

A11558

COVER, oil filter, and manifold

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 4" (NC) fin. hex hd. bolt, oil filter and manifold

1шт.

A11565

BRACKET

PIPE, oil intake, filter, and manifold

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" (NC) fin. hd. bolt w/lockwasher, oil filter and manifold

2шт.

A11566

MANIFOLD, oil, and filter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" (NC) fin. hex hd. bolt w/lockwasher, oil filter and manifold

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" (NC) fin. hex hd. bolt w/lockwasher, oil filter and manifold

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. countersunk headless pipe plug, oil filter and manifold

1шт.

A11567

GASKET

oil filter cover, and manifold

1шт.

A11568

GASKET

pump manifold, and oil filter

1шт.

O8365AB

X

"O" RING, filter housing, oil, and manifold

1шт.

O8442AB1

X

SPRING, filter retainer, oil, and manifold

1шт.

O8849AB

X

"O" RING, filter housing, oil, and manifold

1шт.
