Запчасти Case IH 700 (106) - TORQUE CONVERTER CONTROL VALVE PARTS (06) - POWER TRAIN

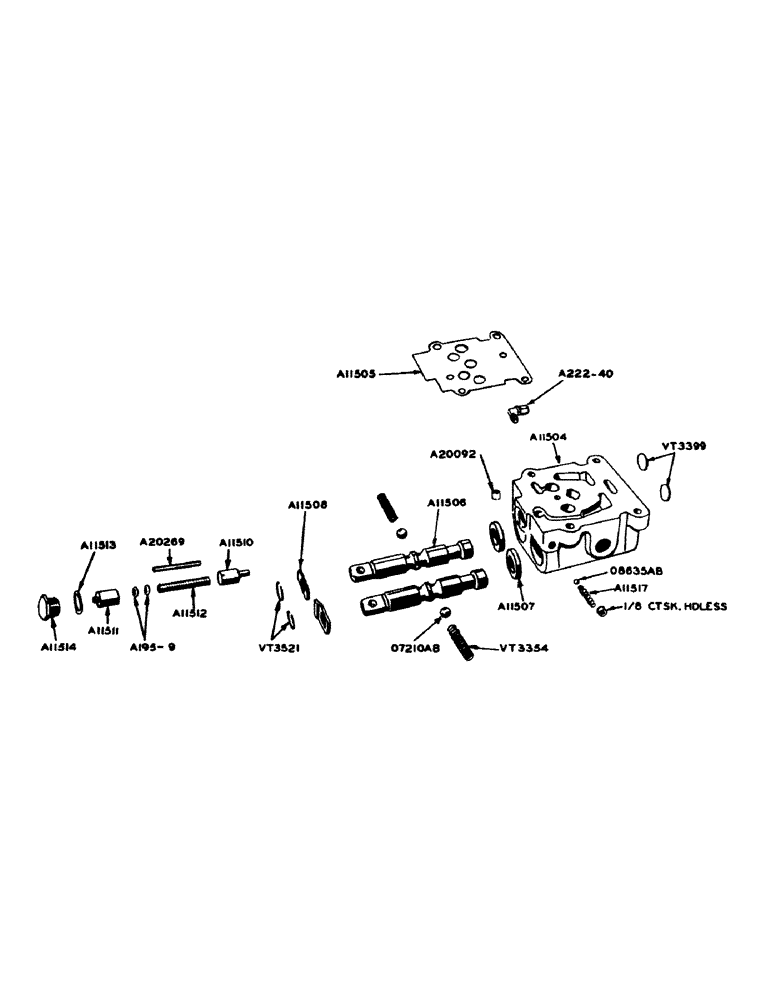

Схема запчастей Case IH 700 - (106) - TORQUE CONVERTER CONTROL VALVE PARTS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

195-9

WASHER, 3/16" SAE plain (for A11511 plunger)

1шт.

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

1/8" x 1/8" for pressure tube

1шт.

A11504

BODY, control valve

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex hd. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/8" Countersunk hd. pipe plug

2шт.

A11505

GASKET

control valve

1шт.

A11506

SPOOL, direct clutch control valve

2шт.

A11507

OIL SEAL

OIL SEAL, control valve spools

2шт.

A11508

PLATE

control valve spool, upper

1шт.

A11509

LARGE PLATE

PLATE, control valve spool, lower

1шт.

A11510

PLUNGER

small, pressure regulator

1шт.

A11511

PLUNGER

large, pressure regulator

1шт.

A11512

VALVE SPRING

SPRING, pressure regulator, outer

1шт.

A11513

GASKET

pressure regulator cap

1шт.

A11514

CAP, pressure regulator screw

1шт.

A11517

VALVE SPRING

SPRING, pressure regulator check valve

1шт.

A11518

VALVE, torque converter control, assembly

1шт.

A20092

PLUG

pressure regulator orifice

1шт.

A20269

SPRING

converter pressure regulator, inner

1шт.

O7210AB

X

BALL, steel, valve spool detent spring

2шт.

O8635AB

X

BALL, steel, pressure regulator check valve

1шт.

VT3354

X

SPRING, valve spool detent

2шт.

VT3399

WELCH PLUG, valve body (1")

2шт.

VT3521

X

SNAP RING, valve spool

2шт.

Выбрано товаров: 24
