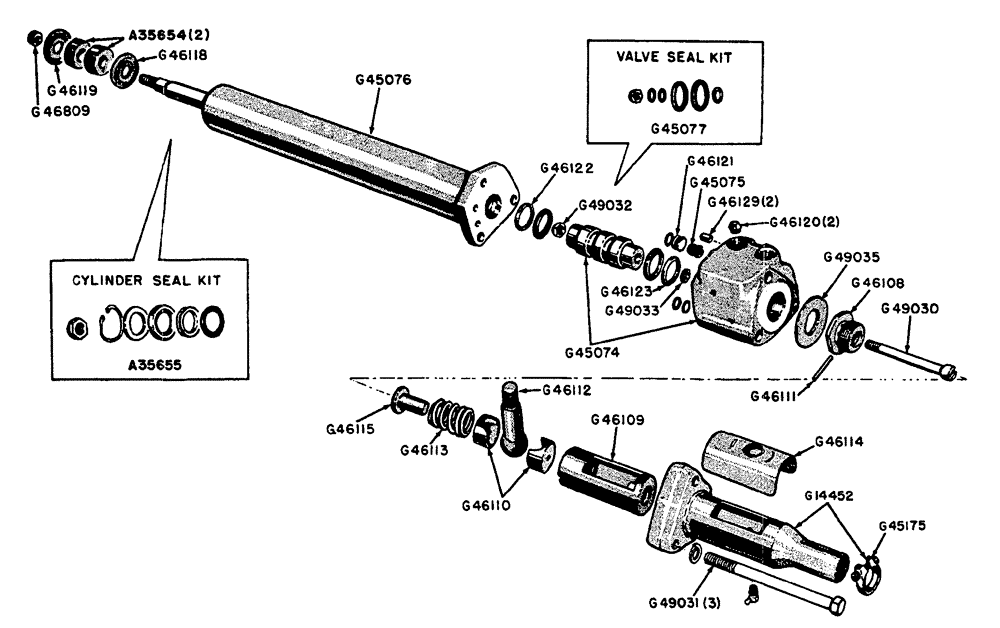

Запчасти Case IH 630 (107) - PARTS FOR G14451 HYDRAULIC CYLINDER (08) - HYDRAULICS

G14452

SLEEVE

outer, cylinder, w/flange (includes G45175 clamp)

1шт.

G45074

SPARE PART valve, w/spool assembly

1шт.

G45075

LOCK VALVE

relief, w/ball

1шт.

G45076

CYLINDER BLOCK

complete, less valve

1шт.

G45077

KIT

valve seals (Includes seals for small end of valve spool and large end of valve spool, "o" ring for oil passage and relief valve and 1 - G49032 lock nut

1шт.

G45078

KIT

ball stud (Includes 2 - G46110 seats, 1 - G46112 stud and 1 - G46114 dust shield)

1шт.

A35655

KIT

cylinder seals (Includes dust seal bushing, seal, ring, washer and G46809 nut)

1шт.

G45175

CLAMP

tie rod to cylinder sleeve

1шт.

G46108

SCREW

stop, torque adjusting

1шт.

G46109

SLEEVE

inner, ball stud spring

1шт.

G46110

SEAT

ball stud (See G45078)

2шт.

G46111

PIN

lock, adjusting screw

1шт.

G46112

STUD

ball (See G45078)

1шт.

G46113

VALVE SPRING

ball stud

1шт.

G46114

SHIELD

dust, ball stud (See G45078)

1шт.

G46115

STOP

SPARE PART spring, ball stud

1шт.

A35654

GROMMET

rubber, piston rod (See A35655)

2шт.

G46118

WASHER

inner, retaining, rubber grommet

1шт.

G46119

WASHER

outer, retaining, rubber grommet

1шт.

G46120

SEAT,0.375" DIA.

flared tube

2шт.

G46121

PLUG

relief valve

1шт.

G46122

BUSHING

Large, valve spool

1шт.

G46123

BUSHING

SPARE PART small, valve spool

1шт.

G46129

SPARE PART oil passage, Serial Range: valve-cylinder

2шт.

G46809

SPARE PART NUT- piston rod (7/16")

1шт.

G49030

BOLT (SPREADER)

valve spool

1шт.

G49031

BOLT (SPREADER)

flange to valve housing

3шт.

G49032

NUT

lock, valve spool (See G45077)

1шт.

G49033

SPACER

valve spool

1шт.

G49035

PLATE ASSY.

valve, Serial Range: housing-flange

1шт.
