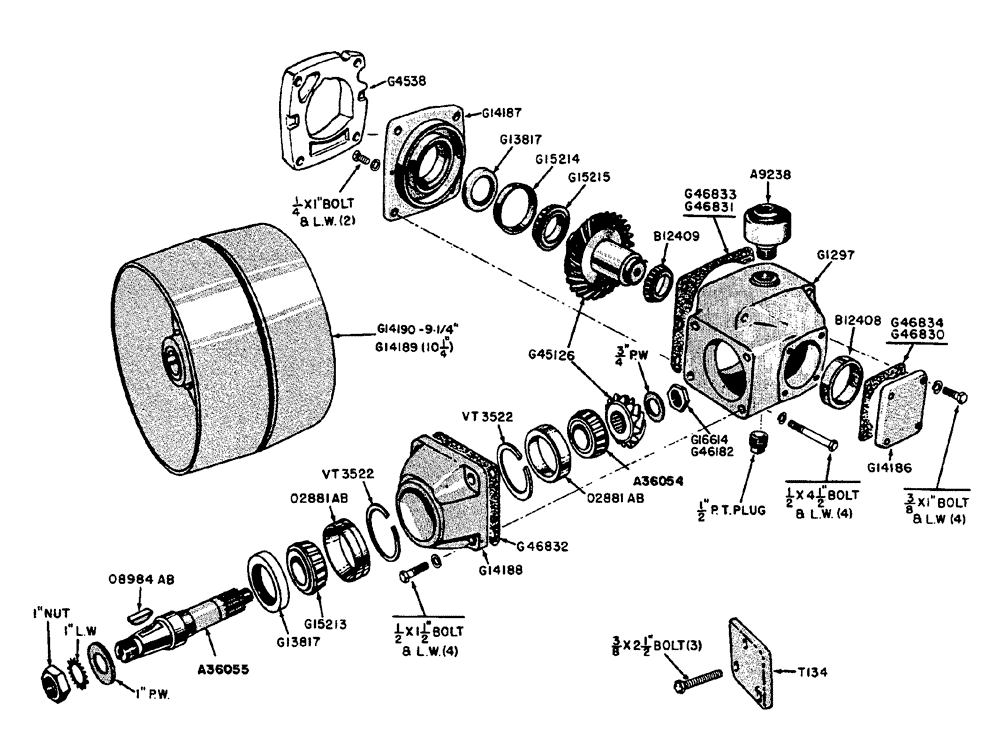

Запчасти Case IH 630 (112) - REAR MOUNTED BELT PULLEY (06) - POWER TRAIN

A9238

BREATHER

- oil, belt pulley housing

1шт.

A10059

FILTER, ELEMENT

ELEMENT - breather (Not shown)

1шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rear bearing (Timken #LM67010)

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - rear, (Timken #LM67048)

1шт.

G1287

HOUSING, (Use G14186)

1шт.

G1288

HOUSING, (Use G14188)

1шт.

G1289

HOUSING, (Use G14187)

1шт.

G1297

HOUSING - belt pulley

1шт.

1/2" std. sq. hd. pipe plug

1шт.

1/2" x 4-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

G4539

PLATE - adaptor, belt pulley (w/dry clutch drive)

1шт.

1/2" x 5-1/2" carr. bolt

4шт.

G13817

SEAL ASSY.

SEAL oil - front bearing carrier and pulley shaft

2шт.

G14186

HOUSING - rear bearing (includes B12408 cup)

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

4шт.

G14187

HOUSING - front bearing (includes G15214 cup)

1шт.

1/4" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G14188

HOUSING - output (includes bearing cups and snap rings)

1шт.

1/2" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G14189

PULLEY - belt (10-1/4") w/dry clutch drive

1шт.

G14190

PULLEY - belt (9-1/4") w/Case-0-Matic

1шт.

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft (Timken #2585)

1шт.

G15214

BEARING CUP

CUP - front bearing, drive gear (Timken #LM603011)

1шт.

G15215

ROLLER BEARING

CONE - drive gear (Timken #LM603049)

1шт.

A36055

SHAFT

- pulley

1шт.

1" N.F. hex nut w/E.T. Shakeproof lockwasher and plain washer

1шт.

G16614

NUT

- lock, drive pinion (3/4" - 24 thread) See G46182

1шт.

G45126

GEAR - pinion drive (matched set of 2 w/stub shaft)

1шт.

G46182

NUT - lock, drive pinion (3/4" - 20 thread) See G16614

1шт.

3/4" plain washer

1шт.

G46830

GASKET - rear bearing (.005")

1шт.

646831

GASKET - front bearing (.005")

1шт.

G46832

GASKET - output housing

1шт.

G46833

GASKET

- front bearing (.010")

1шт.

G46834

GASKET - rear bearing (.010")

1шт.

A36054

CONE

- inner bearing, pulley shaft (Timken #2580)

1шт.

02881AB

CUP - inner and outer bearing, pulley shaft (Timken #2573)

2шт.

08984AB

KEY - pulley to shaft (Woodruff)

1шт.

VT3522

X

RING - snap, bearing cup, output housing

2шт.

T134

PULLER - belt pulley

1шт.

3/8" x 2-1/2" N.C. hex hd. bolt

3шт.
