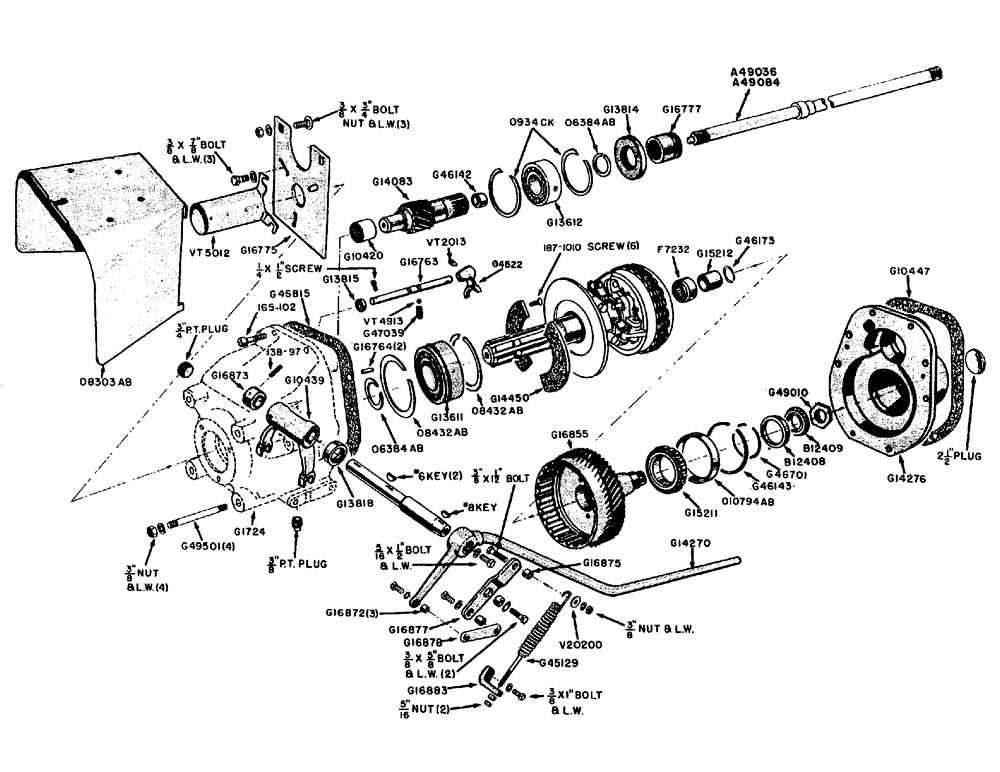

Запчасти Case IH 630 (110) - INDEPENDENT P.T.O. (06) - POWER TRAIN

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, front, clutch drum (Timken #LM67010)

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE, front, clutch drum (Timken #LM67048)

1шт.

F7232

BEARING

- front, driven shaft (Torrington #BH 1812)

1шт.

G1242

HOUSING, (Use G14276)

1шт.

G1724

HOUSING, rear, P.T.O.

1шт.

3/8" std. sq. hd. pipe plug

1шт.

3/4" socket hd. pipe plug

1шт.

G4522

FORK - shift, throwout

1шт.

G10420

NEEDLE BEARING

BEARING - needle, rear of input gear (Torrington #B-1616)

1шт.

G10447

GASKET

- drum housing to transmission case

1шт.

G13611

BALL BEARING

BEARING - rear, driven shaft (N.D. #RW507) includes G13819 oil seal and G46844 ""0"" ring

1шт.

G13612

BALL BEARING

BEARING - rear, input gear (N.D. #5207W)

1шт.

G13814

OIL SEAL

- drum housing

1шт.

G13815

OIL SEAL

OIL seal - shift shaft

1шт.

G13819

SEAL

OIL seal - rear bearing, driven shaft (Part of G13611)

1шт.

G14083

GEAR - input drive (14T) includes G46142 bushing

1шт.

G14276

HOUSING - clutch drum (includes bearing cups and snap rings)

1шт.

2-1/2" dia. Welch plug

1шт.

A49036

PIPE

SHAFT - P.T O. drive (45-3/4" long)

1шт.

G14450

KIT

lining - clutch plate brake (includes 2 linings and 6 - G187-1010 screws)

1шт.

G15211

ROLLER BEARING

CONE - rear, clutch drum (Timken #368A)

1шт.

G15212

RACE

- bearing, driven shaft (Torrington #IR-1416)

1шт.

G16763

SHAFT - shift, throwout

1шт.

1/4" x 1/2" socket hd. cap screw

1шт.

G16764

PIN - dowel

2шт.

G16775

PLATE - guard mounting

1шт.

3/8" x 7/8" N.C. hex hd. bolt w/lockwasher

3шт.

G16777

COLLAR - clutch shaft

1шт.

G16855

DRUM - P.T.O. clutch (51T)

1шт.

A49084

SHAFT - P.T.O. drive (44-5/16" long)

1шт.

Use when converting non Case-O-Matic tractor for Independent P.T.O.

1шт.

G46142

BUSHING - input gear

1шт.

G4S143

RING - snap, rear bearing, driven gear

1шт.

G46173

RING, SNAP

RING - snap, driven shaft bearing race

1шт.

G46701

RING, SNAP

RING - snap, front bearing, driven gear

1шт.

G46815

GASKET

- rear housing to clutch housing

1шт.

G46844

O-RING,2.628" ID

"O"- RING - rear bearing, driven shaft (Part of G13611)

1шт.

G47039

SPRING

- detent ball, throwout shift shaft

1шт.

G49010

LOCK NUT

- adjusting, clutch drum

1шт.

G49501

STUD

- housing to transmission case (3/8" x 5-3/4")

4шт.

3/8" N.F. hex nut and lockwasher

4шт.

06384AB

RING snap - bearing to shaft and bearing to input gear

2шт.

08303AB

GUARD - universal joint

1шт.

3/8" x 3/4" carr. bolt w/hex nut and lockwasher

2шт.

08432AB

RING snap - rear bearing, driven shaft

2шт.

010794AB

CUP - rear bearing, clutch drum (Timken #362A)

1шт.

0934CK

RING - snap,bearing, input gear

2шт.

VT2013

X

SCREW - lock, shift fork

1шт.

VT4913

X

BALL- detent, throwout shift rail

1шт.

VT5012

X

GUARD - P T.0. driven shaft

1шт.

165-102

CAPSCREW,Prev Torque, 3/8" - 16 x 1 3/4"

SCREW - self-locking, G1724 housing (3/8" x 1-3/4" N.C. Nylok)

2шт.

171-206

SCREW,Flat Hd, Spin Lock, 1/4" X 3/4"

(1/4" x 3/4" flat hd. Spinlock)

2шт.

187-1010

SCREW - brake lining (#10-32 x 1/2" self-tapping)

6шт.
