Запчасти Case IH 630 (002) - GASKET KITS (02) - ENGINE

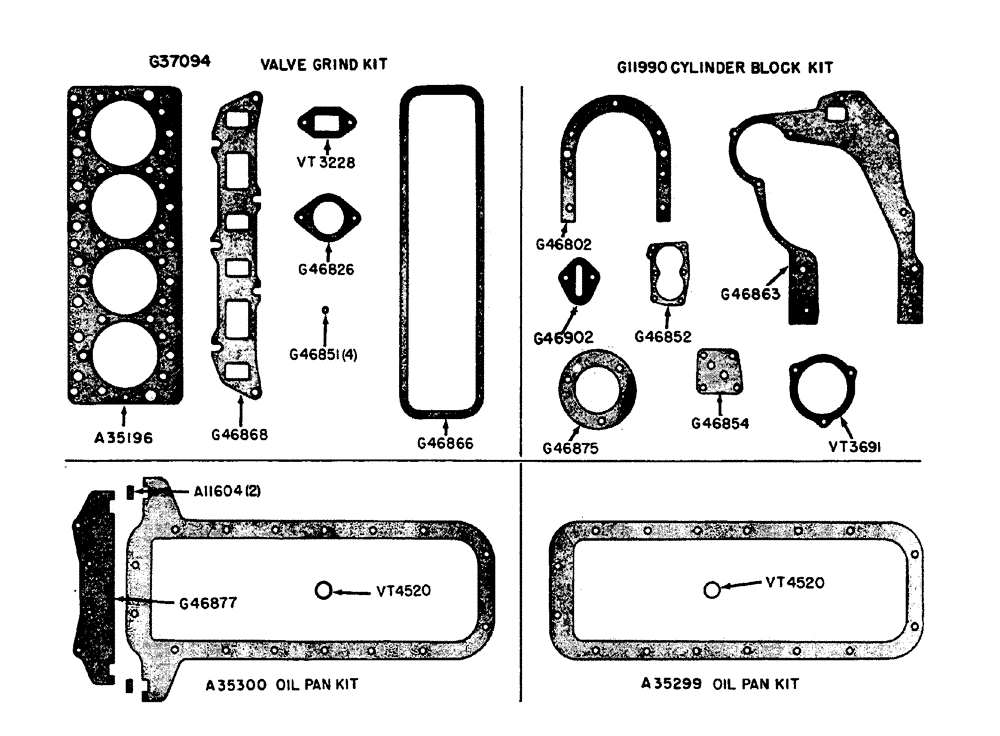

Схема запчастей Case IH 630 - (002) - GASKET KITS (02) - ENGINE
g46875
a35300
g37094
g46877
g46902
a11604
vt4520
vt3228
g46863
a35299
g46852
vt4520
g46826
g46868
g46851
g46866
g11990
g46802
g46854
vt3691
a35196

Артикул

Название

Примечание

Количество

A35299

KIT

OIL pan gasket, w/dry clutch drive (includes VT4520 drain plug gasket)

1шт.

A35300

KIT

OIL pan gasket, w/Case-O-Matic (includes G46877 and (2) A11604 pivot bracket gaskets and VT4520 drain plug gasket)

1шт.

G11990

X

KIT cylinder block gasket - (includes G46902 fuel pump, G46802 rear oil seal, G46852 oil pump cover

1шт.

G37094

X

KIT valve grind gasket - (includes G46826 carburetor, (4) G46851 valve seal, A35196 cylinder head, G4

1шт.

Выбрано товаров: 4
