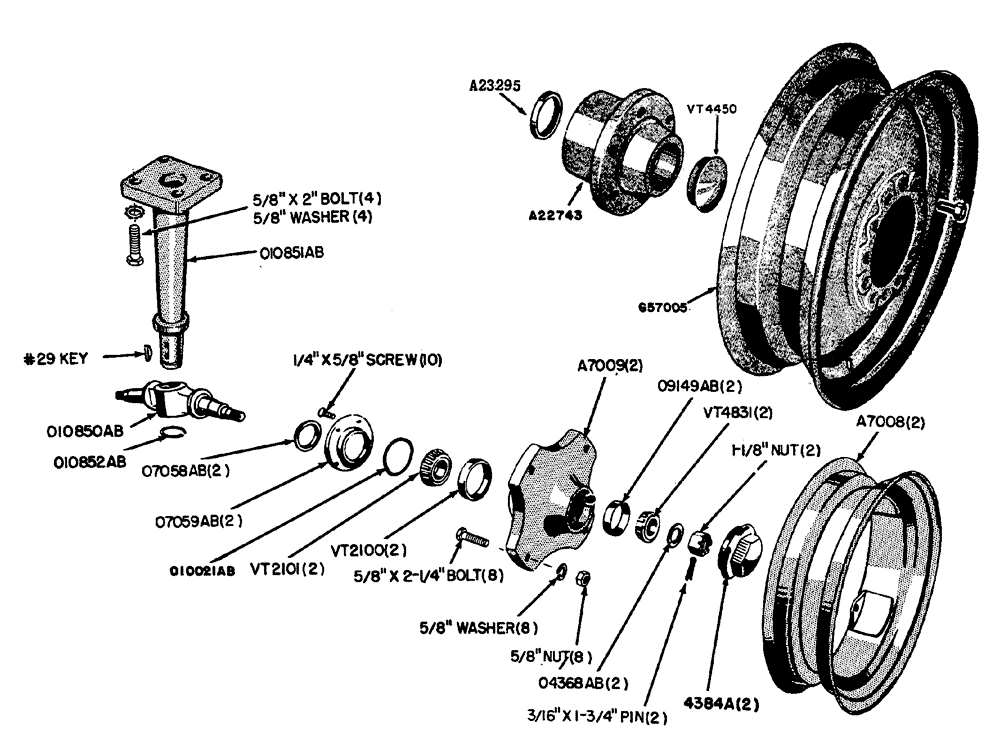

Запчасти Case IH 630 (097) - DUAL FRONT WHEEL AND SPINDLE GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

A7008

RIM

- front wheel (6.00" x 16" tires) Before tractor #8208001

2шт.

5/8" x 2-1/4" N.F. hex hd. bolt w/hex nut and lockwasher

8шт.

A7009

SPARE PART

WHEEL - front (includes 09149AB and VT2100 cups) Before tractor #8208001

2шт.

A22743

HUB

- wheel (includes 09149AB and VT2100 cup) Tractor #8208001 and after

2шт.

A23295

X

SEAL - oil , hub (Tractor #8208001 and after)

2шт.

4384A

X

CAP - nut (Before tractor #8208001)

2шт.

6485A

WHEEL, (Use A7009)

1шт.

G57005

WHEEL

- complete (Tractor #8208001 and after)

2шт.

04368AB

WASHER - spindle nut

2шт.

07058AB

SEAL - oil, wheel (Before tractor #8208001)

2шт.

07059AB

RETAINER - oil seal

2шт.

1/4" x 5/8" flat hd. mach. screw

10шт.

09149AB

CUP - outer bearing (Timken #25820)

2шт.

09150AB

CONE - outer bearing (Timken #25878) Use VT4831

1шт.

010021AB

"O" RING - oil seal retainer

2шт.

010850AB

SPINDLE - dual wheel

1шт.

1-1/8" slotted hex nut (thick)

2шт.

3/16" x 1-3/4" cotter pin

2шт.

010851AB

SPINDLE - steering

1шт.

#29 Woodruff key

1шт.

5/8" x 2" N.F. hex hd. bolt w/Shakeproof lockwasher

4шт.

010852AB

SNAP RING, wheel spindle to steering spindle

1шт.

VT2100

X

CUP - inner bearing (Timken #25520)

2шт.

VT2101

X

CONE - inner bearing (Timken #25580)

2шт.

VT4450

X

CAP - hub (Tractor #8208001 and after)

2шт.

VT4831

X

CONE - outer bearing (Timken #25877)

2шт.
