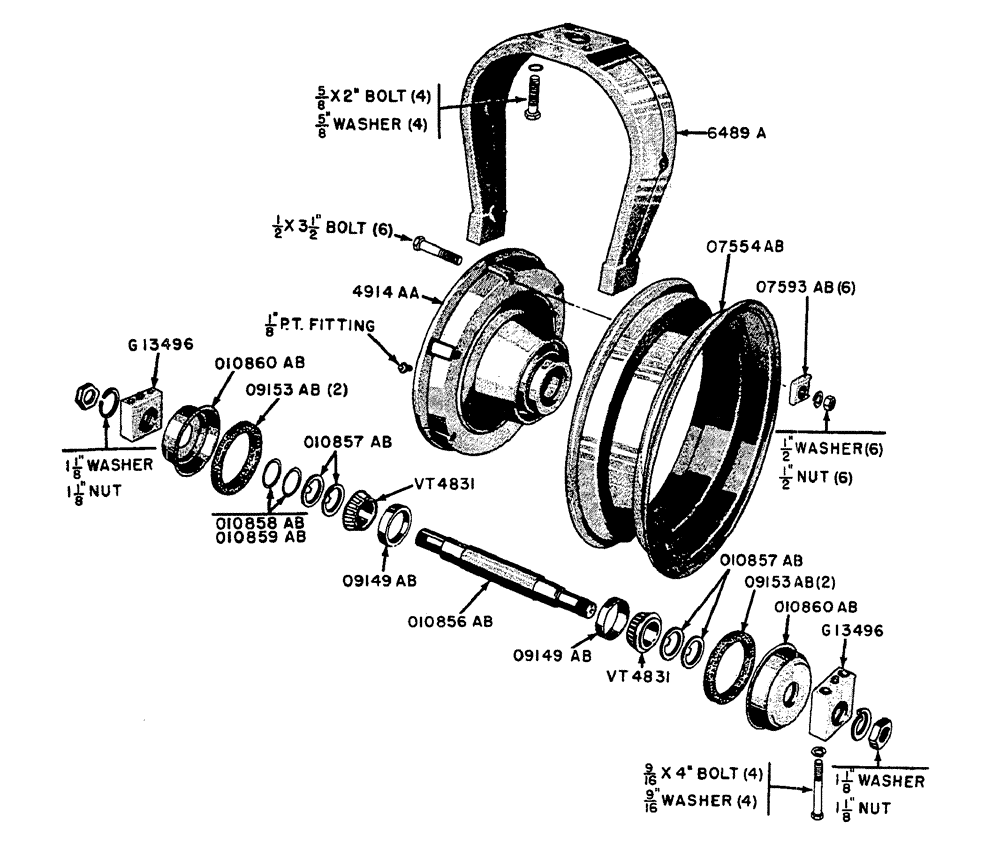

Запчасти Case IH 630 (096) - SINGLE FRONT WHEEL AND FORK GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

G13496

BLOCK and PIN - fork extension

2шт.

9/16" x 4" N.F. hex hd. bolt w/lockwasher

4шт.

6488A

WHEEL, (Use 4914AA)

1шт.

6489A

FORK - single front wheel

1шт.

5/8" x 2" N.F. hex hd. bolt w/external Shakeproof lockwasher #1128

4шт.

4914AA

WHEEL - front, includes 2 - 09149AB bearing cups

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

07554AB

RIM - 4.50F x 16 full drop center

1шт.

07593AB

CLAMP - front wheel rim

6шт.

1/2" x 3-1/2" N.F. hex hd. bolt w/hex nut

6шт.

09149AB

CUP - bearing, front wheel (Timken #25820)

2шт.

09150AB

CONE - bearing, front wheel (Timken #25878) Use VT4831

1шт.

09153AB

WASHER - felt, front wheel hub

4шт.

010856AB

SHAFT - axle, single front wheel

1шт.

1-1/8" N.F. hex jam nut w/lockwasher

2шт.

010857AB

WASHER - axle shaft

4шт.

010858AB

SHIM - axle shaft (.033"")

1шт.

010859AB

SHIM - axle shaft (.005"")

1шт.

010860AB

RETAINER - felt washer

2шт.

VT4831

X

CONE - bearing, front wheel (Timken #25877)

2шт.

4914AA

WHEEL - front, includes 2 - 09149AB bearing cups

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.
