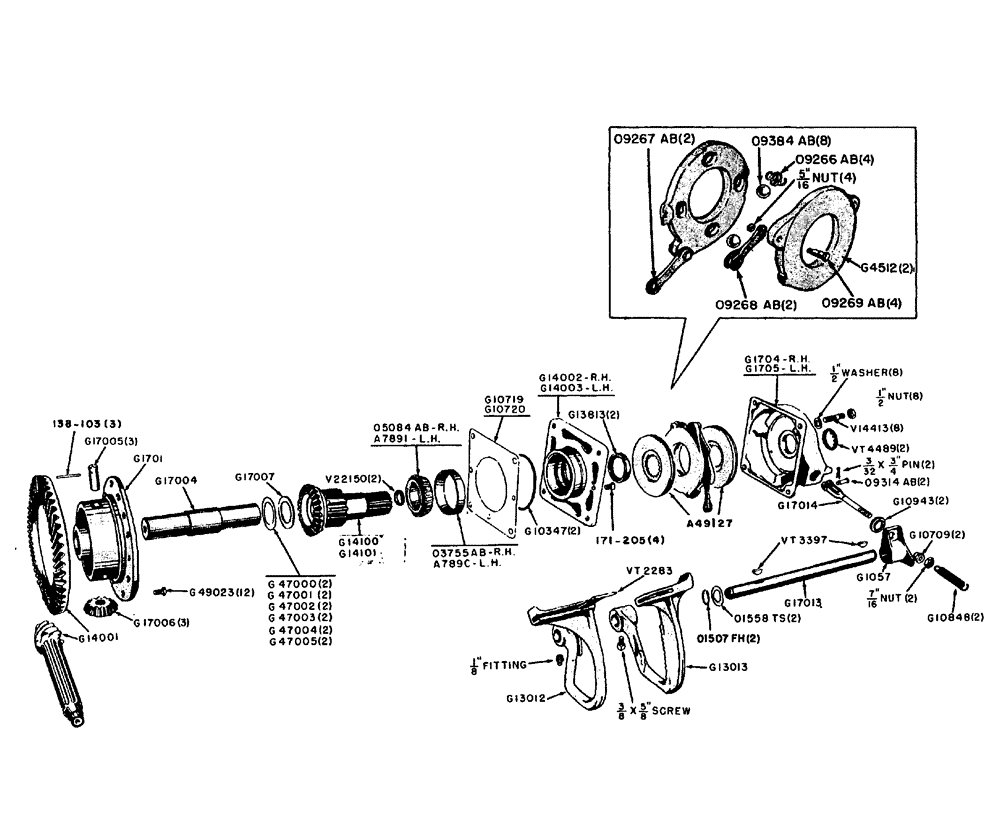

Запчасти Case IH 630 (084) - DIFFERENTIAL RING GEAR AND COUNTERSHAFT AND BRAKE ASSEMBLY, BEFORE TRACTOR #6165137 (06) - POWER TRAIN

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, L.H. side gear (Timken #3920)

1шт.

A7891

ROLLER BEARING

CONE, L.H. side gear (Timken #3982)

1шт.

G1701

X

WHEEL - center

1шт.

G1702

CARRIER - (Use G14002)

1шт.

G1703

CARIER - (Use G14003)

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O"-RING - bearing carrier (5-1/4" dia.)

2шт.

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

G13813

OIL SEAL

OIL - bearing carrier

2шт.

G14001

RING and COUNTERSHAFT w/spiral bevel pinion (matched set)

1шт.

G14002

CARRIER - bearing, R.H. side gear (includes 03755AB cup)

1шт.

G14003

CARRIER - bearing, L.H. side gear (includes A7890 cup)

1шт.

G14100

GEAR - differential side, includes V22150 plug (14T) (Utility)

2шт.

G14101

GEAR - differential side, includes V22150 plug (13T) (General Purpose)

2шт.

G17004

SHAFT - cross, differential

1шт.

G17005

SHAFT - pinion gear

3шт.

G17006

GEAR WHEEL

GEAR - pinion, differential

3шт.

G17007

SHIM - thrust washer (.010")

1шт.

G47000

WASHER - thrust, center wheel (.089")

2шт.

G47001

WASHER - thrust, center wheel (.094")

2шт.

G47002

WASHER - thrust, center wheel (.099")

2шт.

G47003

WASHER - thrust, center wheel (.104")

2шт.

G47004

WASHER - thrust, center wheel (.109")

2шт.

G47005

WASHER - thrust, center wheel (.119")

2шт.

G49023

BOLT - ring gear to center wheel

12шт.

03755AB

CUP - bearing, R.H. side gear (Timken #394A)

1шт.

05084AB

CONE - bearing, R.H. side gear (Timken #395)

1шт.

V22150

CAP

PLUG - differential side gear

2шт.

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, , Differential pinion shaft 3/16" x 1 7/8", Slotted

3шт.

171-205

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 1"

- bearing carrier (3/8" x 1" flat hd. Spin Lock)

4шт.

G1057

LEVER

L.H., brake cross shaft, differential brake assembly before tractor #6165137

1шт.

G1072

PEDAL, (Use G13012), differential brake assembly before tractor #6165137

1шт.

G1073

X

PEDAL, (Use G13013), differential brake assembly before tractor #6165137

1шт.

G1704

COVER - brake, R.H., differential brake assembly before tractor #6165137

1шт.

G1705

COVER - brake, L.H., differential brake assembly before tractor #6165137

1шт.

G4512

DISC

- brake actuating, differential brake assembly before tractor #6165137

4шт.

G10709

NUT

- adjusting, brake rod, differential brake assembly before tractor #6165137

2шт.

G10848

SPRING

- return, brake pedal, differential brake assembly before tractor #6165137

2шт.

G10943

DUST CAP

CAP - brake rod, differential brake assembly before tractor #6165137

2шт.

G13012

PEDAL

- R.H. brake (includes VT2283 interlock), differential brake assembly before tractor #6165137

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8" x 67-1/2° fitting (Lincoln #5300), differential brake assembly before tractor #6165137

1шт.

G13013

PEDAL

- - L.H. brake (includes 3/8"" x 5/8'' N.C. sq. hd. cup pt. set screw), differential brake assembly before tractor #6165137

1шт.

A49127

X

DISC - middle, with bonded brake lining, differential brake assembly before tractor #6165137

4шт.

G17013

SHAFT - cross, clutch and brake pedals, differential brake assembly before tractor #6165137

1шт.

G17014

ROD- brake yoke link, differential brake assembly before tractor #6165137

2шт.

7/16" N.F. hex nut, differential brake assembly before tractor #6165137

2шт.

09266AB

SPRING - - actuating, brake discs, differential brake assembly before tractor #6165137

4шт.

09267AB

LINK - plain actuating, brake discs, differential brake assembly before tractor #6165137

2шт.

09268AB

LINK - straddle, brake actuating, differential brake assembly before tractor #6165137

2шт.

09269AB

BOLT - actuating link stud, differential brake assembly before tractor #6165137

4шт.

5/16" N.F. hex jam nut, differential brake assembly before tractor #6165137

4шт.

09314AB

PIN - yoke, brake rod, differential brake assembly before tractor #6165137

2шт.

3/32" x 3/4" cotter pin (132-26), differential brake assembly before tractor #6165137

2шт.

O9384AB

X

BALL - actuating disc (7/8" dia.), differential brake assembly before tractor #6165137

8шт.

VT2283

INTERLOCK - brake pedal, R.H., differential brake assembly before tractor #6165137

1шт.

151-400

1/4" x 1-1/4" ctsk. Hd. rivet, differential brake assembly before tractor #6165137

1шт.

VT3397

KEY - Woodruff, G13013 pedal and G1057 lever to shaft, differential brake assembly before tractor #6165137

2шт.

VT4489

X

PLUG - button, brake cover, differential brake assembly before tractor #6165137

2шт.

O1507FH

X

SNAP RING - brake pedal cross shaft, differential brake assembly before tractor #6165137

2шт.

O1558TS

X

WASHER - cross shaft ends (1-7/8" 0.D. x 1/32" I.D. x #16 ga.), differential brake assembly before tractor #6165137

2шт.

V14413

STUD - brake cover to transmission (1/2" x 2-13/16"), differential brake assembly before tractor #6165137

8шт.

1/2" N.F. hex nut and lockwasher, differential brake assembly before tractor #6165137

8шт.
