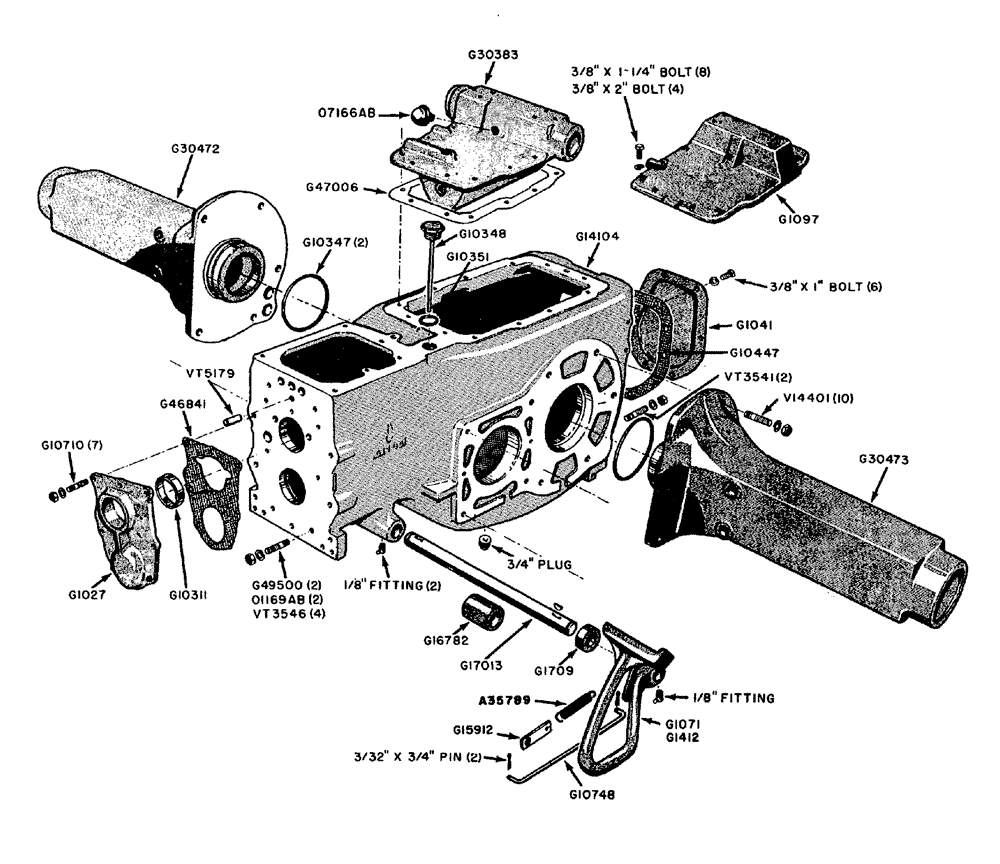

Запчасти Case IH 630 (082) - TRANSMISSION CASE AND REAR AXLE HOUSINGS (06) - POWER TRAIN

G1027

COVER

- front, transmission case (4 speed transmission only)

1шт.

G1041

COVER

- rear, P.T.0. opening

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

6шт.

G1071

PEDAL - clutch (Before tractor #8191147) Use G13011

1шт.

1/8" 67-1/2° fitting (Lincoln #5300) (219-40)

1шт.

G1097

COVER - top rear, transmission case (w/o Eagle Hitch)

1шт.

3/8" x 1-1/4" N.C. hex hd. bolt w/lockwasher

8шт.

3/8" x 2" N.C. hex hd. bolt w/lockwasher

4шт.

G1388

HOUSING, (Use G30472)

1шт.

G1389

HOUSING, (Use G30473)

1шт.

G1390

HOUSING, (Use G30472)

1шт.

G1391

HOUSING, (Use G30473)

1шт.

G1412

PEDAL - clutch (Tractor #8191147 and after)

1шт.

G1700

CASE - transmission (Use G14104)

1шт.

G1709

SPACER - clutch pedal

1шт.

G1710

HOUSING (Use G30472)

1шт.

G1711

HOUSING (Use G30473)

1шт.

G1728

HOUSING (Use G30472)

1шт.

G1729

HOUSING (Use G30473)

1шт.

G1742

HOUSING - Eagle Hitch rockshaft (Use A48047 on Figure 123)

1шт.

G10311

COLLAR

- pilot, for G1027 cover

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing inner seal (5-1/4")

2шт.

G10348

DIPSTICK

- oil level, transmission

1шт.

G10351

GASKET

- dipstick

1шт.

G10447

GASKET

- rear cover

1шт.

G10710

STUD

- front cover to transmission case (3/8" x 1-3/4")

7шт.

3/8" N.F. hex nut and lockwasher

7шт.

G10748

LINK

ROD - clutch, Serial Range: pedal-lever

1шт.

3/32" x 3/4" cotter pin (132-26)

2шт.

G13011

PEDAL - clutch w/1/8"- 67-1/2° fitting (See G1071)

1шт.

G14104

CASE - transmission, complete (includes 2 - VT2067 snap ring, 2 - VT2097 bearing cup, 7 - G10710 stud, 2 - 01169AB stud, 8 - V14413 stud, 2 - VT 3541stud, 4 - VT3546 stud and 10 - V14401 stud)

1шт.

3/4" std sq hd pipe plug

1шт.

1/8" 45° fitting (Lincoln #5000) (219-1)

2шт.

G15912

BRACKET - return spring, clutch pedal (Tractor #8191147 and after)

1шт.

G16782

SPACER - cross shaft (in place of G1071 or G1412 pedal w/Case-O-Matic)

1шт.

G17013

SHAFT - cross, clutch and brake pedal

1шт.

G30472

HOUSING - R.H. rear axle (includes bearing cups and 2 - A9176 bushing)

1шт.

G30473

HOUSING - L.H. rear axle (includes bearing cups and 2 - A9176 bushing)

1шт.

G46841

GASKET

- front cover

1шт.

G47006

GASKET

- G1097, Serial Range: cover-case

1шт.

G49500

STUD

- torque tube to transmission case (1/2" x 2-3/16")

2шт.

STUD - 1/2" N.F. hex nut and lockwasher

2шт.

01169AB

STUD - torque tube to transmission case (1/2" x 4-7/8")

2шт.

1/2" N.F. hex nut and lockwasher

2шт.

A35789

SPRING

- clutch return

1шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2")

2шт.

5/8" N.F. hex nut and lockwasher

2шт.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2")

4шт.

1/2" N.F. hex nut and lockwasher

4шт.

VT5179

X

PIN - dowel, torque tube to transmission case (1/2" x 1-5/16")

2шт.

V14401

STUD - axle housing to transmission case (5/8" x 2-11/16")

10шт.

5/8" N.F. hex nut and lockwasher

10шт.
