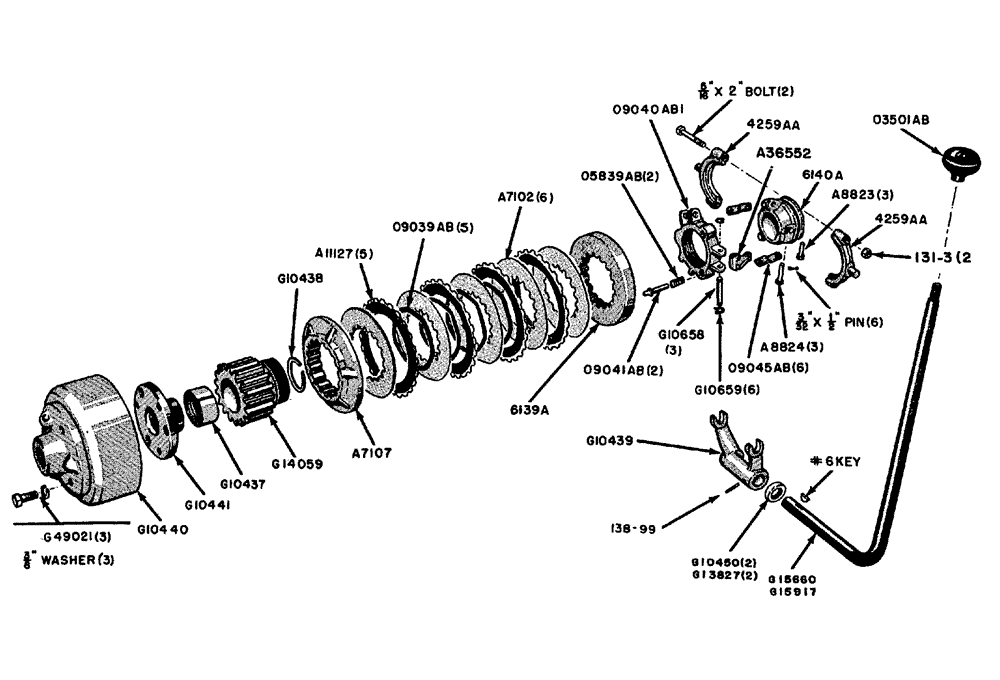

Запчасти Case IH 630 (080) - HAND CLUTCH AND MULTIPLE PLATE CLUTCH WITH DRY CLUTCH DRIVE ONLY (06) - POWER TRAIN

G10439

COUPLING

YOKE - clutch throwout

1шт.

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

OIL - hand clutch lever (Before tractor #8191147)

2шт.

G13827

OIL SEAL

OIL - hand clutch lever (Tractor #8191147 and after)

2шт.

G15660

LEVER

- hand clutch (Before tractor #8191147)

1шт.

#6 Woodruff key (126-12)

1шт.

G15917

X

LEVER - hand clutch (Tractor #8191147 and after)

1шт.

#6 Woodruff key (126-12)

1шт.

03501AB

KNOB - clutch lever

1шт.

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Yoke to clutch lever 3/16" x 1 3/8", Slotted

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - hand clutch, driven (steel ground finish surface), parts for multiple clutch

6шт.

A7107

PLATE

- hand clutch, backing, parts for multiple clutch , parts for multiple clutch

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

- clutch lever link, outer (1-1/32" long), parts for multiple plate clutch

3шт.

3/32" x 1/2" cotter pin (132-24), parts for multiple plate clutch

3шт.

A8824

PIN

- clutch lever link, inner (1-15/64" long), parts for multiple plate clutch

3шт.

3/32" x 1/2" cotter pin (132-34), parts for multiple plate clutch

3шт.

A11127

PLATE

- clutch drive, parts for multiple plate clutch

5шт.

G10437

BEARING

BUSHING - clutch hub, parts for multiple plate clutch

1шт.

G10438

RING

- internal snap, clutch hub, parts for multiple plate clutch

1шт.

G10440

DRUM HUB

DRUM - clutch, parts for multiple plate clutch

1шт.

G10441

HUB CAP

HUB - clutch drum, parts for multiple plate clutch

1шт.

G10658

AXLE PIN

PIN - clutch finger pivot, parts for multiple plate clutch

3шт.

G10659

SNAP RING,#31, Ext

Ring, Snap, , pivot pin, parts for multiple plate clutch #31, Ext

6шт.

G14059

HUB CAP

HUB - hand clutch assembly w/bushing and snap ring, parts for multiple plate clutch

1шт.

G49021

BOLT (SPREADER)

BOLT - drilled, clutch drum to hub, parts for multiple plate clutch

3шт.

6139A

X

PLATE - clutch pressure, parts for multiple plate clutch

1шт.

6140A

X

SLEEVE - clutch sliding, parts for multiple plate clutch

1шт.

6141A

X

COLLAR (Use 4259AA), parts for multiple plate clutch

1шт.

05839AB

SPRING - clutch adjusting lock pin, parts for multiple plate clutch

2шт.

09039AB

SPRING - clutch drive plate separator, parts for multiple plate clutch

5шт.

09040 AB1

YOKE - clutch adjusting, parts for multiple plate clutch

1шт.

09041AB

PIN - clutch adjusting lock, parts for multiple plate clutch

2шт.

A36552

FINGER

- clutch, parts for multiple plate clutch

3шт.

09045AB

LINK - clutch lever, parts for multiple plate clutch

6шт.

131-3

LOCK NUT,5/16"-24, GB

STOP - elastic, 5/16" - 24 for bolts in 4259AA collar, parts for multiple plate clutch

2шт.

4259AA

X

COLLAR - clutch throw-out (consists of collar with (2) 5/16" x 2" bolts N.F. hex and (2) 131-3 st, parts for multiple plate clutch

1шт.
