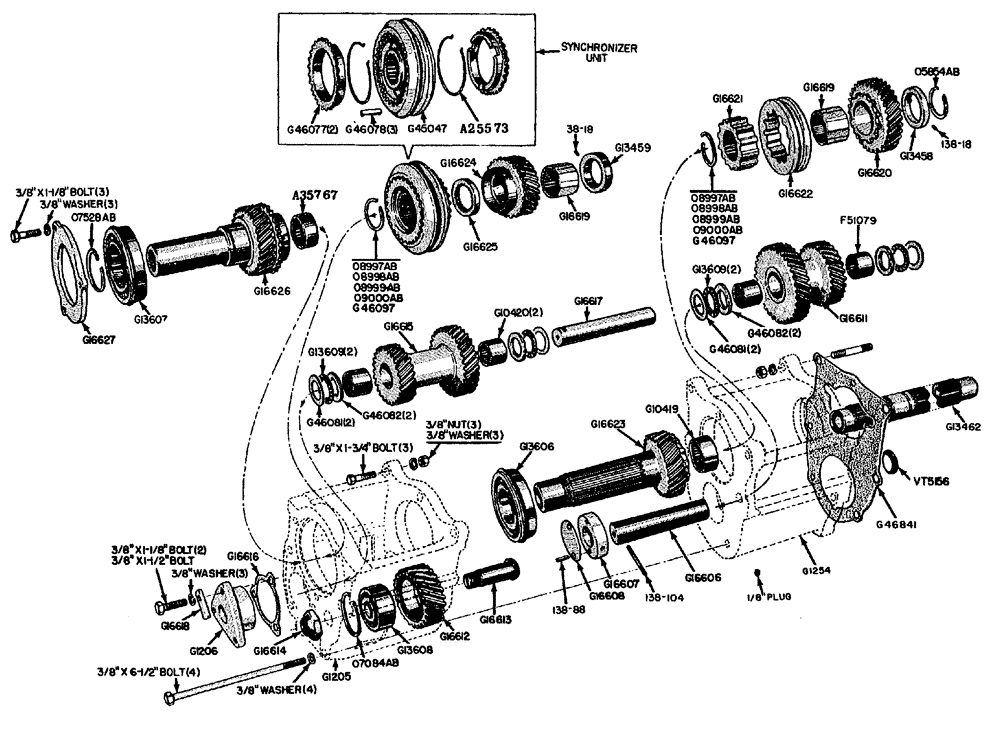

Запчасти Case IH 630 (072) - SHUTTLE AND LOW RANGE UNITS WITH DRY CLUTCH DRIVE (06) - POWER TRAIN

G1205

HOUSING

- reverse shuttle gear

1шт.

3/8" x 1-3/4" N.F. hex hd. bolt w/hex nut and lockwasher

3шт.

3/8" x 6-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

G1206

RING

BUSHING - front, countershaft

1шт.

3/8" x 1-1/8" N.C. hex hd. bolt w/lockwasher

2шт.

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, shuttle input gear (Torrington #BH2212)

1шт.

G10420

NEEDLE BEARING

BEARING - needle, countershaft cluster gear (Torrington #B1616)

2шт.

G13459

COLLAR

- thrust, shuttle output gear (includes B138-18 roll pin)

1шт.

G13607

BALL BEARING

BEARING - ball, w/snap ring, shuttle input gear (N.D. #4321OLY1A)

1шт.

G13608

BALL BEARING

BEARING - ball, double, shuttle reverse idler gear (N.D. #53O4LY1A)

1шт.

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Shuttle countershaft (Torrington #NTA1625)

2шт.

G16612

GEAR

- reverse idler, shuttle (24T)

1шт.

G16613

STUD

- reverse idler gear, shuttle

1шт.

G16614

NUT

- idler gear stud

1шт.

G16615

GEAR

- cluster, shuttle countershaft (25T and 30T)

1шт.

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

G16617

SHAFT

COUNTERSHAFT - cluster gear, shuttle

1шт.

G16618

LATCH

LOCK - countershaft

1шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

1шт.

G16619

SLEEVE

- output gear, shuttle

1шт.

G16624

GEAR

- output, shuttle (27T)

1шт.

G16625

COLLAR

- thrust, shuttle output gear

1шт.

G16626

GEAR

- input, shuttle (28T)

1шт.

G16627

RETAINER

- bearing, input gear

1шт.

3/8" x 1-1/8" N.C. hex hd. bolt w/lockwasher

3шт.

G45047

HUB and SLEEVE - synchronizer unit

1шт.

G46077

RING

- blocking, synchronizer unit

2шт.

G46078

PLATE

- shifter, synchronizer unit

3шт.

A25573

SPRING

- synchronizer unit

2шт.

G46081

BEARING WASHER

WASHER - thrust, outer, shuttle countershaft (.031")

2шт.

G46082

WASHER

- thrust, inner, sh ttle countershaft (.125")

2шт.

G46097

RING

SNAP RING - synchronizer unit to main shaft (.087")

1шт.

07084AB

SNAP RING - G13608 bearing to reverse idler gear G16612

1шт.

07528AB

SNAP RING - G13607 bearing to shuttle input gear G16626

1шт.

08997AB

SNAP RING - synchronizer unit to main shaft (.076")

1шт.

08998AB

SNAP RING - synchronizer unit to main shaft (.080")

1шт.

08999AB

SNAP RING - synchronizer unit to main shaft (.083")

1шт.

09000AB

SNAP RING - synchronizer unit to main shaft (.091")

1шт.

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar, G13459 5/64" x 3/8", Slotted

1шт.

F51079

NEEDLE BEARING

BEARING - needle, cluster gear (Torrington #JH1616-0H)

2шт.

G1254

HOUSING - low range gear

1шт.

1/8" socket hd. pipe plug

1шт.

G10419

NEEDLE BEARING

BEARING - needle, input gear (Torrington #BH2212), low range unit - with dry clutch drive

1шт.

G13458

COLLAR

- thrust, output gear (includes B138-18 roll pin), low range unit - with dry clutch drive

1шт.

G13606

BALL BEARING

BEARING - input gear (ND #43208LTIA includes snap ring), low range unit - with dry clutch drive

1шт.

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Countershaft (Torrington 0NTA1625), low range unit - with dry clutch drive

2шт.

G16606

SHAFT

COUNTERSHAFT - low range, low range unit - with dry clutch drive

1шт.

G16607

COLLAR

- countershaft, low range unit - with dry clutch drive

1шт.

G16608

SHIM,.005" Thk

Countershaft, Low range unit - with dry clutch drive .005" Thk

1шт.

G16611

GEAR

- cluster, countershaft (34T and 27T), low range unit - with dry clutch drive

1шт.

G16619

SLEEVE

- output gear, low range unit - with dry clutch drive

1шт.

G16620

GEAR

- output (32T), low range unit - with dry clutch drive

1шт.

G16621

CARRIER

- shift collar (12 T), low range unit - with dry clutch drive

1шт.

G16622

X

COLLAR - shift, low range unit - with dry clutch drive

1шт.

G16623

GEAR

- input (25T), low range unit - with dry clutch drive

1шт.

G46081

BEARING WASHER

WASHER - thrust, countershaft outer (.031"), low range unit - with dry clutch drive

2шт.

G46082

WASHER

- thrust, countershaft inner (.125"), low range unit - with dry clutch drive

2шт.

G46097

RING

SNAP RING - shift collar (.087"), low range unit - with dry clutch drive

1шт.

G46841

GASKET

- housing to transmission case, low range unit - with dry clutch drive

1шт.

05854AB

SNAP RING - thrust collar to main shaft, low range unit - with dry clutch drive

1шт.

08997AB

SNAP RING - shift collar (.076"), low range unit - with dry clutch drive

1шт.

08998AB

SNAP RING - shift collar (.080"), low range unit - with dry clutch drive

1шт.

08999AB

SNAP RING - shift collar (.083"), low range unit - with dry clutch drive

1шт.

09000AB

SNAP RING - shift collar (.091"), low range unit - with dry clutch drive

1шт.

VT5156

PLUG - rear, low range gear housing (1-1/2" Welch), low range unit - with dry clutch drive

1шт.

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar, G13458, low range unit - with dry clutch drive 5/64" x 3/8", Slotted

1шт.

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Countershaft collar, Low range unit - with dry clutch drive 3/16" x 1/2", Slotted

2шт.

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to countershaft, low range unit - with dry clutch drive 3/16" x 2", Slotted

1шт.
