Запчасти Case IH 630 (062) - G30373 TORQUE CONVERTER PARTS (06) - POWER TRAIN

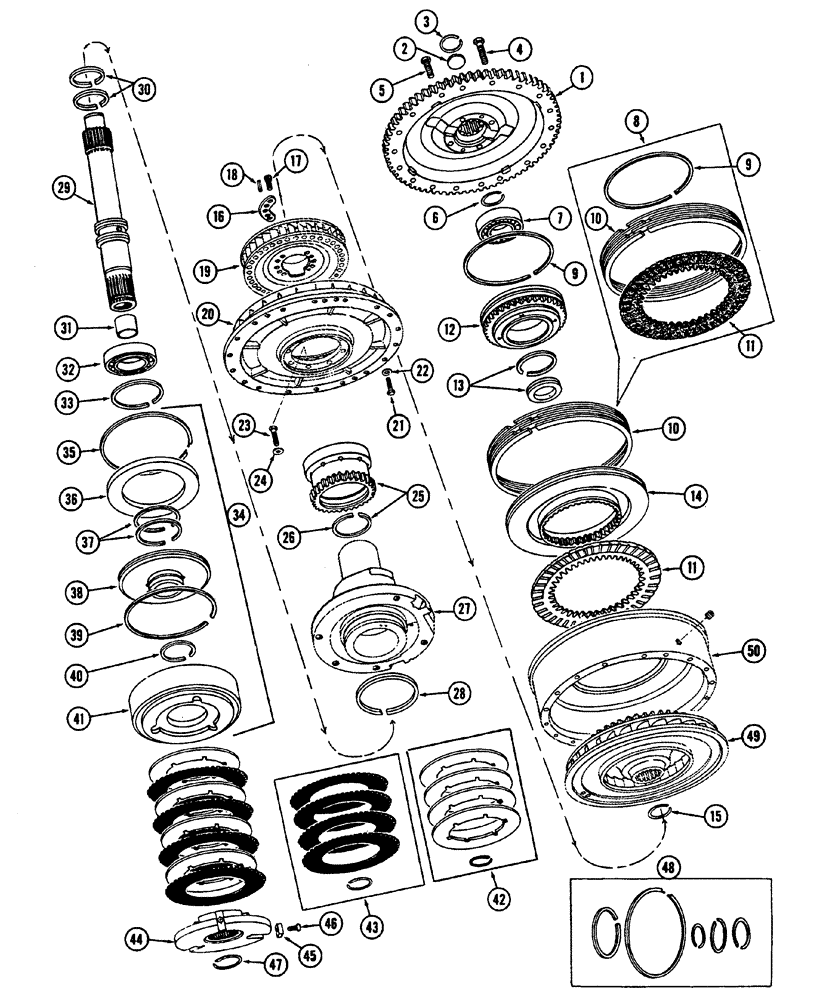

Схема запчастей Case IH 630 - (062) - G30373 TORQUE CONVERTER PARTS (06) - POWER TRAIN
17
9
45
47
15
28
9
50
49
21
30
32
19
20
18
25
1
15
8
6
22
36
10
29
14
31
11
42
10
43
33
34
24
16
12
48
5
46
35
3
27
4
26
23
44
38
39
2
37
41
7
40
13

Артикул

Название

Примечание

Количество

1

A36378

CARRIER - clutch, Includes: Ref. 2 and 3

1шт.

2

A36372

PLUG

1шт.

3

A36277

SNAP RING,1.125", Int, #112

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- carrier to housing, 5/16" x1 -1/4" N.C. hex hd.

18шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bearing carrier Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

A36385

RING

SNAP RING - front bearing

1шт.

7

A36266

BEARING

1шт.

8

A36260

PLATE

KIT - front clutch plate, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

12

A36265

CARRIER

- bearing

1шт.

13

A36267

SEAL

OIL SEAL - bearing carrier

1шт.

14

A36264

PISTON

- clutch

1шт.

15

G46700

SNAP RING

-, Serial Range: turbine-sleeve

1шт.

16

A36278

PLATE

- lock

2шт.

17

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - cap, 5/16" x 3/4" N.C. socket hd.

6шт.

18

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

4шт.

19

NSS

NOT SOLD SEPARAT

STATOR

1шт.

20

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Impeller to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

18шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Gear to impeller Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

8шт.

25

A36270

X

GEAR - pump drive, Includes: Ref. 26

1шт.

26

A36273

RING

- seal

1шт.

27

NSS

NOT SOLD SEPARAT

CARRIER - stator

1шт.

28

A36412

SEAL ASSY.

RING

1шт.

29

A36274

SLEEVE - output, Includes: Ref. 30 and 31

1шт.

30

A20229

RING

- seal

2шт.

31

G49634

BUSHING

1шт.

32

3013

DRAIN VALVE

TSI BEARING - rear

1шт.

33

A36373

RING, SNAP

SNAP RING -, Serial Range: bearing-sleeve

1шт.

34

G45476

PISTON ASSY.

PISTON ASSY - master clutch, Includes: Ref. 35 - 41

1шт.

35

A36374

RING, SNAP

SNAP RING -, Serial Range: plate-piston

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - piston

1шт.

37

A36376

SEAL

RING - piston carrier

2шт.

38

NSS

NOT SOLD SEPARAT

CARRIER - piston

1шт.

39

A36379

SEALING RING

RING - piston carrier

1шт.

40

A36380

SEAL

RING - piston

1шт.

41

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

42

G14280

CLUTCH ASSEMBLY

KIT - internal tooth clch. plate (incl.ref. 47)

1шт.

43

G14281

CLUTCH ASSEMBLY

KIT - external tooth clch. plate (incl. ref. 47)

1шт.

44

G45438

PLATE ASSY.

PLATE - back, master clutch, Includes: Ref. 45 and 46

1шт.

45

A36383

KEY

3шт.

46

A36382

SCREW

3шт.

47

G46700

SNAP RING

- backplate

1шт.

48

A36276

KIT

- snap ring (incl. A36277, A36385, (2) G46700, A36373 and A36374)

1шт.

49

NSS

NOT SOLD SEPARAT

TURBINE

1шт.

50

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

G46817

GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk

- converter to flywheel (Not shown)

1шт.

G30373

CONVERTER

TORQUE - complete

1шт.

Выбрано товаров: 52
