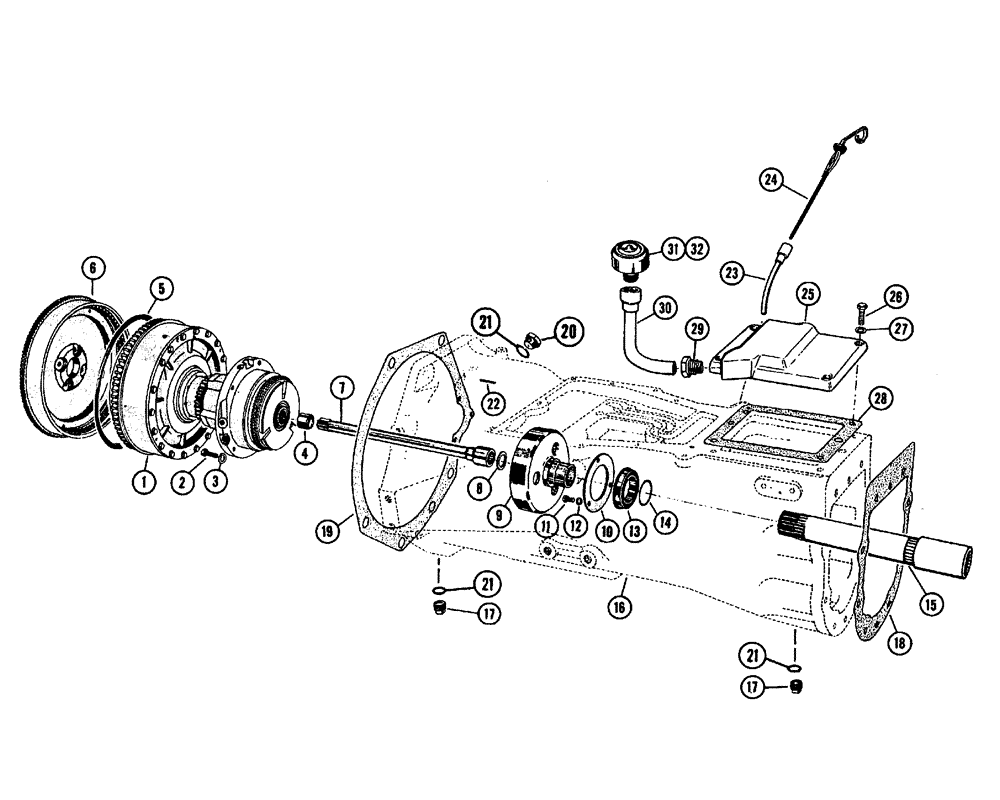

Запчасти Case IH 630 (061) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
G30373
CONVERTER
- torque (for repairs See Fig. 77B)
1шт.
2
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8" x 1-1/2" N.C. hex hd.
5шт.
3
92-6
LOCK WASHER,3/8"
std. 3/8"
5шт.
4
G49634
BUSHING
- converter to drive shaft
1шт.
5
G46817
GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk
-, Serial Range: converter-flywheel
1шт.
6
G1186O
FLYWHEEL engine
1шт.
7
G16793
X
SHAFT - clutch main drive
1шт.
8
G49046
WASHER
- thrust, mainshaft
1шт.
9
G16792
DRUM HUB
DRUM - driven, traction clutch
1шт.
10
G16780
CAP - bearing retainer
1шт.
11
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
12
92-5
LOCK WASHER,5/16"
LOCKWASHER - std. 5/16"
3шт.
13
40027
BALL BEARING,49.99mm ID x 80mm OD x 16mm W
- drum, traction clch. (N.D. #43L10)
1шт.
14
G46177
SNAP RING,#196, 1.849", Ext
- cup bearing
1шт.
15
G14118
COUPLING - converter to trans. (w/4 speed only)
1шт.
16
G30391
TORQUE tube (incl. Ref. 20, 21, 22 & 23)
1шт.
17
A14280
PLUG
- drain
2шт.
18
G46840
GASKET
GASKET - housing to transmission case
1шт.
19
G46876
GASKET
-, Serial Range: housing-engine
1шт.
20
A14280
PLUG
- timing hole
1шт.
21
09844AB
GASKET - plug, timing hole and drain
2шт.
22
138-63
LOCK PIN,1/8" x 1 1/4", Slotted
PIN, , Timing pointer 1/8" x 1 1/4", Slotted
1шт.
23
G30284
SUPPORT - dipstick
1шт.
24
G45253
DIPSTICK
- oil level
1шт.
25
G1360
COVER - rear (w/4 speed transmission)
1шт.
26
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8" x 1-1/2" N.C. hex hd.
4шт.
27
92-6
LOCK WASHER,3/8"
std. 3/8"
4шт.
28
G46842
GASKET
- cover
1шт.
29
222-508
TUBE NUT,1"-18
NUT - breather tube, to cover (81LB-3/4")
1шт.
30
G30309
BREATHER,0.7535" OD x 1.5" L
TUBE
1шт.
31
A9238
BREATHER
- oil (incl. Ref. 32)
1шт.
32
A10059
FILTER, ELEMENT
ELEMENT - oil breather (not shown)
1шт.
33
A14280
PLUG
- timing hole (Tractor #8191147 and after)
1шт.
34
09844AB
GASKET - timing hole plug (Tractor #8191147 and after)
1шт.
Выбрано товаров: 34
