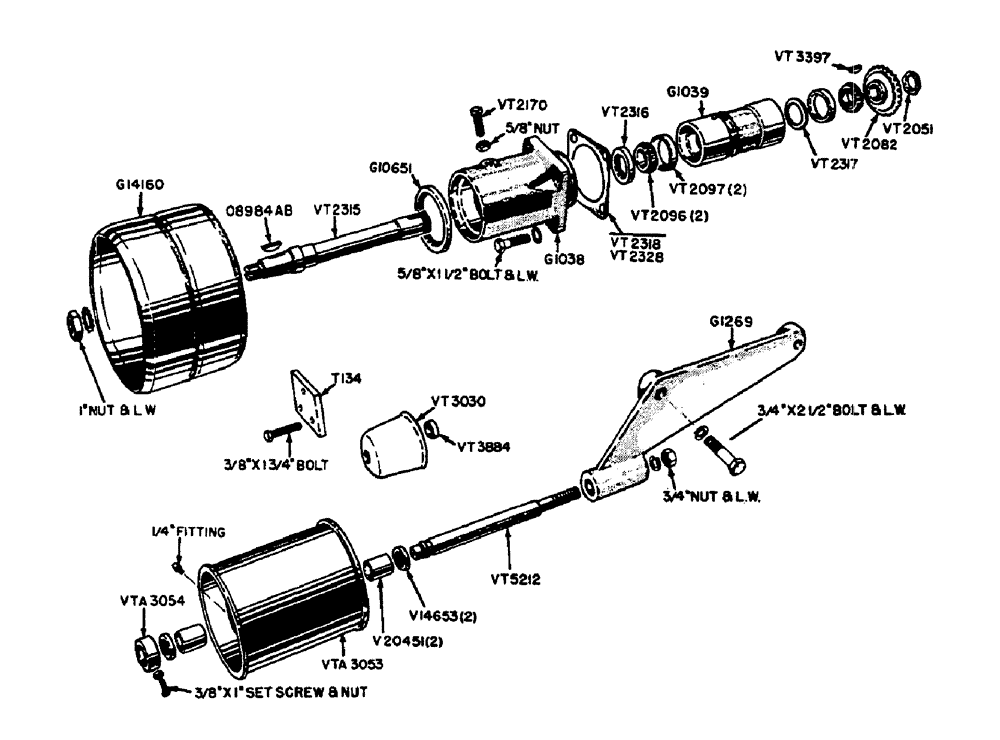

Запчасти Case IH 630 (060) - SIDE MOUNTED BELT PULLEY ATTACHMENT (06) - POWER TRAIN

G1038

HOUSING - sleeve, belt pulley

1шт.

5/8" x 1-1/2" hex hd. bolt, N.C. w/I.T. Shakeproof lockwasher

4шт.

G1039

SLEEVE - belt pulley shaft

1шт.

G10651

OIL SEAL

- front, sleeve housing

1шт.

G14160

PULLEY - belt (9-1/4" O.D. x 6-3/8" wide)

1шт.

08984AB

KEY - pulley to shaft (Woodruff)

1шт.

VT2051

NUT - adjusting, shaft

1шт.

VT2082

GEAR - belt pulley shaft

1шт.

VT2096

X

CONE - bearing (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT2170

SCREW set - belt pulley sleeve

1шт.

5/8" hex nut, N.C.

1шт.

VT2315

SHAFT - belt pulley

1шт.

1" hex jam nut, N.F. and E.T. Shakeproof lockwasher

1шт.

VT2316

X

SEAL oil - pulley shaft

1шт.

VT2317

SHIELD - oil, shaft

1шт.

VT2318

SHIM - pulley sleeve housing (.005" blue)

1шт.

VT2328

SHIM - pulley sleeve housing (.003" green)

1шт.

VT3030

COVER - pulley shaft

1шт.

VT3397

KEY - gear to shaft (Woodruff)

1шт.

VT3884

SPACER - between cover and shaft

1шт.

G1269

BRACKET - pulley mounting, idler

1шт.

3/4" x 2-1/2" hex hd. bolt, N.C. w/lockwasher, idler pulley

2шт.

VT631

PULLEY - (Use VTA3053), idler

1шт.

VT5212

SHAFT - pulley, idler

1шт.

3/4" hex nut, N.C. and lockwasher, idler pulley

1шт.

VTA3053

PULLEY - idler, includes bushings, idler

1шт.

1/4" str. drive fitting (Alemite #1743), idler pulley

1шт.

VTA3054

THRUST COLLAR ASSEMBLY - (includes 3/8" x 1" sq. hd. dog pt. set screw w/hex jam nut), idler pulley

1шт.

V14653

SEAL oil, idler pulley

2шт.

V20451

BUSHING - idler pulley

2шт.
