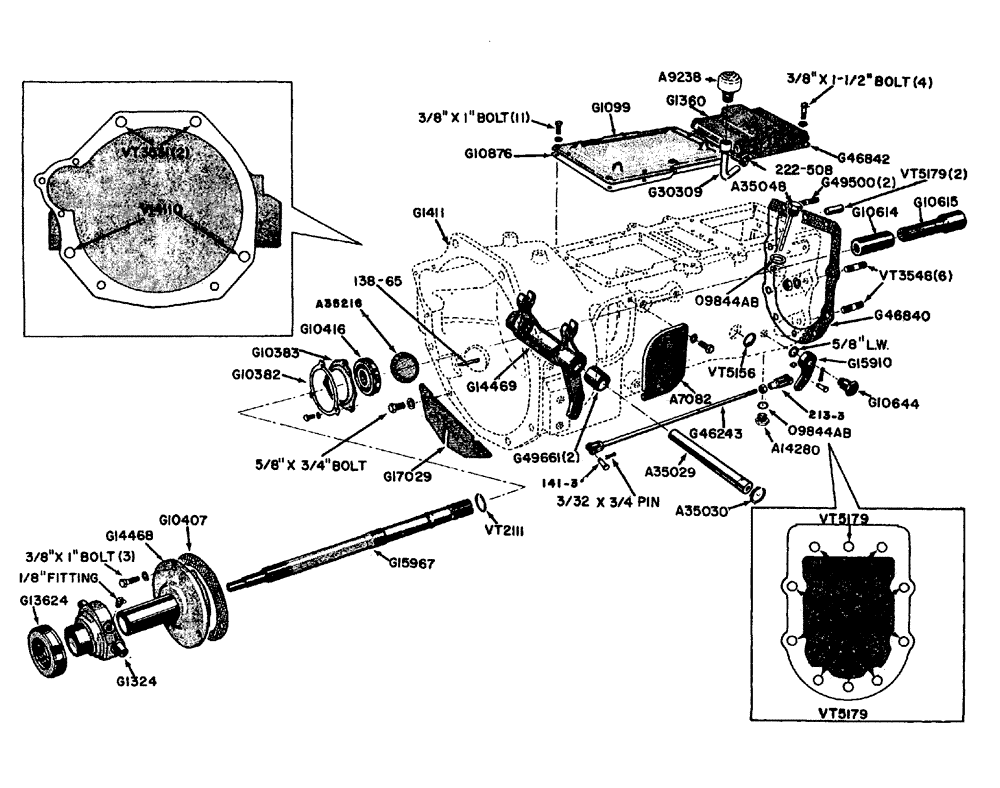

Запчасти Case IH 630 (058) - TORQUE TUBE - DRY CLUTCH DRIVE TRACTOR #8191147 AND AFTER (06) - POWER TRAIN

.

A7082

COVER

- hand hole

1шт.

.

3/8" x 1/2" N.C. hex hd. bolt

2шт.

.

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, clutch rod 5/16" x .940"

2шт.

.

3/32" x 3/4" cotter pin (132-26)

2шт.

.

A9238

BREATHER

- oil (includes A10059)

1шт.

.

A10059

FILTER, ELEMENT

ELEMENT - A9238 breather (not shown)

1шт.

.

A14280

PLUG

- drain, torque tube (3/4" N.C.)

1шт.

.

A35029

SHAFT

- pivot, clutch throwout

1шт.

.

A35030

RING

SNAP RING - pivot shaft

1шт.

.

A35048

DIPSTICK

- oil level

1шт.

.

G1099

COVER

- top front (tractors without hydraulics)

1шт.

.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

11шт.

.

G1324

CARRIER

- throwout bearing

1шт.

.

1/8" x 45° fitting (Lincoln #5200) (219-36)

1шт.

.

G1360

COVER - rear (w/4 speed transmission only)

1шт.

.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

.

G1411

TUBE - torque

1шт.

.

G4515

YOKE - (Use G14469)

1шт.

.

G10382

LOCK

- bearing retainer

1шт.

.

5/16" x 1" N.C. hex hd. bolt w/lockwasher

3шт.

.

G10383

BEARING CAP

CAP - bearing, clutch shaft

1шт.

.

G10407

GASKET

- drive housing, hydraulic pump

1шт.

.

G10416

BALL BEARING,30mm ID x 72mm OD x 19mm W

BEARING - clutch mainshaft (N.D. #43306)

1шт.

.

G10614

SLEEVE - coupling, drive shaft (tractors without hand clutch)

1шт.

.

G10615

SLEEVE - coupling, drive shaft (w/4 speed transmission)

1шт.

.

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

.

5/8" I.T. Shakeproof lockwasher (193-34)

1шт.

.

G10876

GASKET

- front cover, G1099

1шт.

.

G13624

BEARING

- throwout (Aetna #A2721)

1шт.

.

G14468

HOUSING

SLEEVE - throwout bearing carrier (includes bearing housing)

1шт.

.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

3шт.

.

G14469

YOKE

- clutch throwout (includes G49661 bushings)

1шт.

.

G15910

X

LEVER - clutch throwout rod

1шт.

.

1/4" fitting (Lincoln #5010) (219-8)

1шт.

.

G15967

SHAFT

- clutch main drive

1шт.

.

G17029

COVER - flywheel

1шт.

.

5/8" x 3/4" N.C. hex hd. bolt w/lockwasher

2шт.

.

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - to cover

1шт.

.

G46243

ROD

- clutch throwout

1шт.

.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

.

G46842

GASKET

- rear cover, G1360

1шт.

.

G49S00

STUD - upper, torque tube to transmission case 1/2" x 2-13/16")

2шт.

.

1/2" N.F. hex nut and lockwasher

2шт.

.

G49661

BUSHING

- throwout yoke

2шт.

.

09844AB

GASKET - drain plug and dipstick

2шт.

.

VT2111

X

SNAP - RING - clutch shaft bearing

1шт.

.

VT3531

X

STUD - engine to torque tube (5/8" x 3")

2шт.

.

5/8" N.F. hex nut and lockwasher

2шт.

.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2")

6шт.

.

1/2" N.F. hex nut and lockwasher

6шт.

A35216

COVER

- timing hole

1шт.

.

VT5156

PLUG - expansion (hand clutch lever opening)

1шт.

.

VT5179

X

DOWEL - torque tube to transmission case

2шт.

.

V14110

BOLT - ground body, engine to torque tube (5/8" x 3-1/2")

2шт.

.

5/8" N.F. hex nut and lockwasher

2шт.

.

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - clutch throwout rod

1шт.

.

5/16" N.F. hex jam nut

1шт.

.

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

.

222-508

TUBE NUT,1"-18

NUT - breather tube to cover (81LB-3/4")

1шт.
