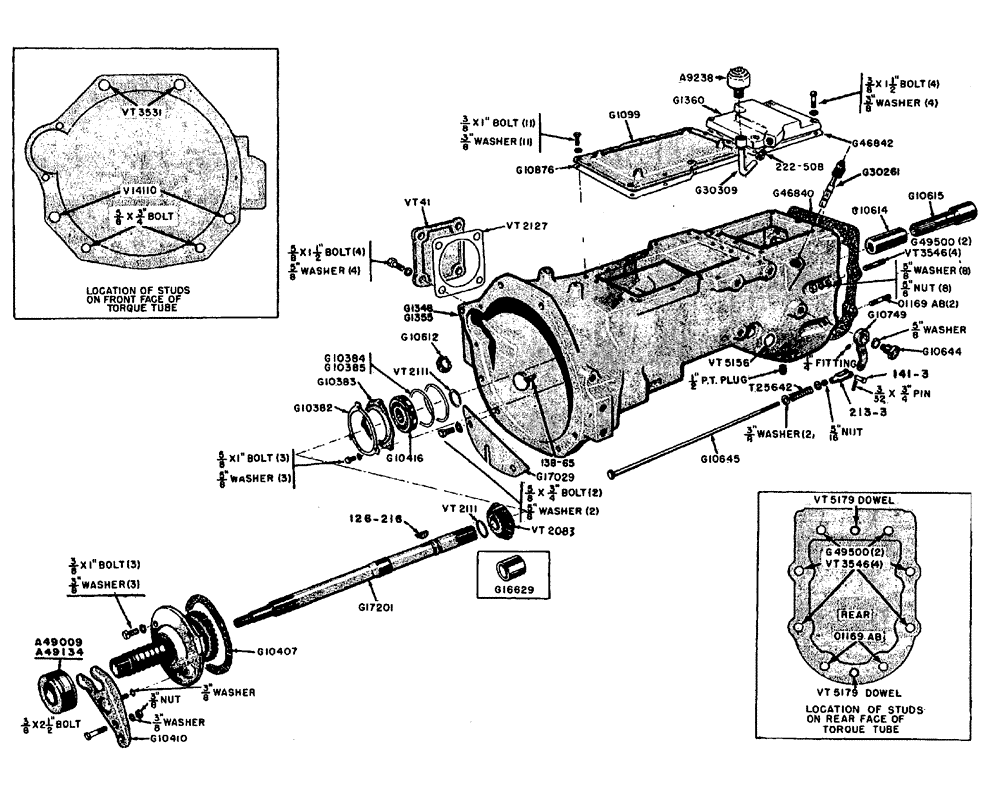

Запчасти Case IH 630 (057) - TORQUE TUBE - DRY CLUTCH DRIVE BEFORE TRACTOR #8191147 (06) - POWER TRAIN

.

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, clutch rod 5/16" x .940"

1шт.

.

3/32" x 3/4" cotter pin (132-26)

1шт.

.

A9238

BREATHER

- torque tube cover

1шт.

.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather (not shown)

1шт.

.

G1099

COVER

- front (tractors without hydraulics)

1шт.

.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

11шт.

.

G1348

TUBE - torque (See G1355)

1шт.

.

1/2" sq. hd. pipe plug

1шт.

.

G1355

TUBE - torque (w/shuttle transmission) see G1348

1шт.

.

1/2" sq. hd. pipe plug

1шт.

.

G1360

COVER - rear (w/4 speed transmission only)

1шт.

.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

.

G10382

LOCK

- bearing retainer

1шт.

.

5/16" x 1" N.C. hex hd. bolt w/lockwasher

3шт.

.

G10383

BEARING CAP

CAP - bearing, clutch shaft

1шт.

.

G10384

SHIM - adjusting, rear bearing (.005")

1шт.

.

G10385

SHIM - adjusting, rear bearing (.010")

1шт.

.

G10407

GASKET

- drive housing, hydraulic pump

1шт.

See Figure 059 for Pump Cover Breakdown

1шт.

.

G10410

X

YOKE - clutch throwout

1шт.

.

3/8" x 2-1/2" N.C. hex hd. bolt (cut thrd.) w/hex nut and lockwasher

1шт.

.

G10416

BALL BEARING,30mm ID x 72mm OD x 19mm W

BEARING - clutch mainshaft (N.D. #43306)

1шт.

.

A49009

X

BEARING - throwout (w/11" clutch) See G14038

1шт.

.

G10612

COVER

- timing hole

1шт.

.

G10614

SLEEVE - drive shaft coupling (tractors without hand clutch)

1шт.

.

G10615

SLEEVE - drive shaft coupling (w/4 speed transmission)

1шт.

.

G10644

SCREW

BOLT - shoulder, clutch lever

1шт.

.

5/8" I.T. Shakeproof lockwasher

1шт.

.

G10645

ROD - clutch throwout

1шт.

.

G10749

LEVER - clutch throwout rod

1шт.

.

1/4" grease fitting (Lincoln #5013)(219-10)

1шт.

.

G10876

GASKET

- front cover, G1099

1шт.

.

A49134

X

BEARING - throwout (w/10" clutch) See G10610

1шт.

.

G16629

SPACER - main shaft (replaces VT2083 w/shuttle transmission)

1шт.

.

G17029

COVER - flywheel

1шт.

.

5/8" x 3/4" N.C. hex hd. bolt w/lockwasher

2шт.

.

G17201

SHAFT - clutch main drive

1шт.

.

G30261

DIPSTICK - oil level

1шт.

.

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - to G1360 cover

1шт.

.

G46840

GASKET

GASKET - torque tube to transmission case

1шт.

.

G46842

GASKET

- rear cover, G1360

1шт.

.

G49500

STUD

- upper, torque tube to transmission case (1/2" x 2-3/16")

2шт.

.

1/2" N.F. hex nut and lockwasher

2шт.

.

01169AB

STUD- torque tube to transmission case (1/2" x 4-7/8")

2шт.

.

1/2" N.F. hex nut and lockwasher

2шт.

.

VT41

COVER - belt pulley opening

1шт.

.

5/8" x 1-1/2" N.C. hex hd. bolt w/ET Shakeproof lockwasher

4шт.

.

VT2083

GEAR - drive, belt pulley (17T)

1шт.

.

VT2111

X

RING snap - pulley, Serial Range: gear-shaft

2шт.

.

VT2127

X

GASKET - opening cover, belt pulley

1шт.

.

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley drive gear to shaft (Woodruff)

1шт.

.

VT3531

X

STUD - engine to torque tube (5/8" x 3")

2шт.

.

5/8" N.F. hex nut and lockwasher

2шт.

.

VT3546

X

STUD - torque tube to transmission case (1/2" x 2-1/2")

4шт.

.

1/2" N.F. hex nut and lockwasher

2шт.

.

VT5156

PLUG - expansion (hand clutch lever opening)

1шт.

.

VT5179

X

DOWEL - torque tube to transmission case

2шт.

.

V14110

BOLT - ground body, engine to torque tube (5/8" x 3-1/2")

2шт.

.

5/8" N.F. hex nut and lockwasher

2шт.

.

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - clutch throwout rod

1шт.

.

5/16" N.F. hex. jam nut

1шт.

.

T25642

SPRING - clutch throwout rod

1шт.

.

3/8" plain washer

2шт.

.

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

.

222-508

TUBE NUT,1"-18

NUT - breather tube to cover (81LB - 3/4")

1шт.
