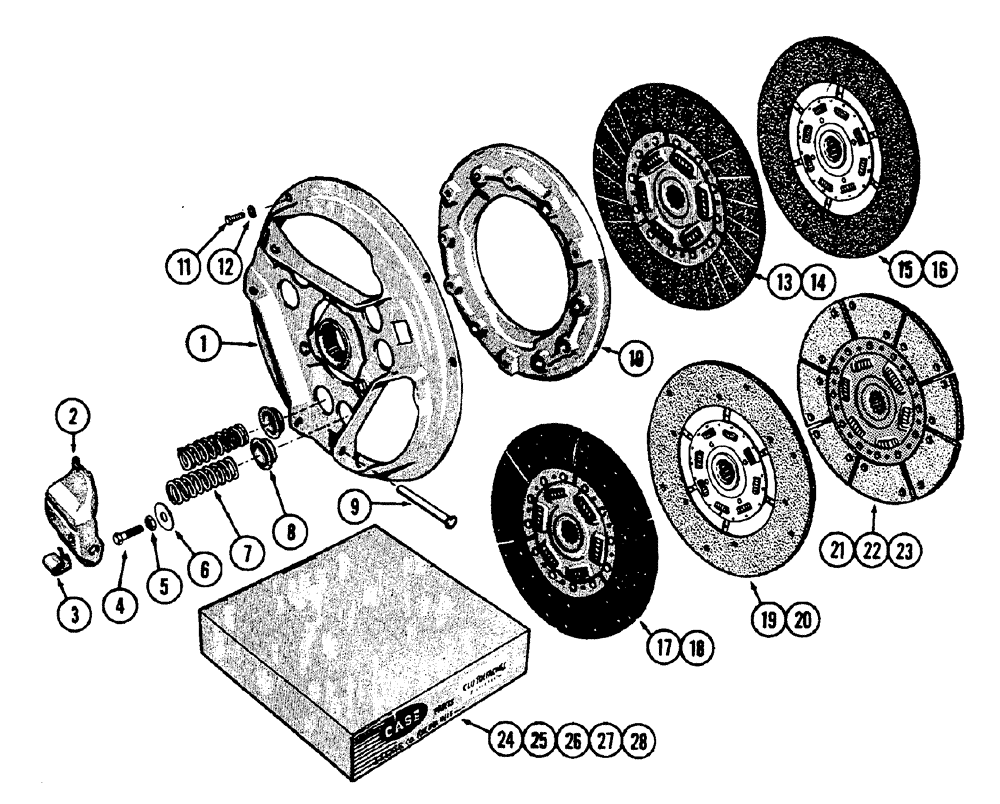

Запчасти Case IH 630 (056) - 11" CLUTCH (06) - POWER TRAIN

A49119

X

PRESSURE PLATE ASSYEMBLY - (Includes Ref. 1 - 10)

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET & HUB ASSEMBLY

1шт.

2

G47010

LEVER

LAVER - pressure plate

3шт.

3

G46061

CLIP

- clutch return

3шт.

4

G49049

X

SCREW - adjusting

3шт.

5

G49005

NUT - jam, adjusting screw

3шт.

6

G49048

WASHER

- adjusting screw

3шт.

7

G47013

SPRING

- lever (white)

6шт.

8

G47012

CUP - spring

6шт.

9

G47011

PIN

- pivot, lever

3шт.

10

G4506

PLATE

- pressure

1шт.

11

G11207

BOLT

- pressure plate to flywheel (5/16" x 1")

6шт.

12

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

6шт.

13

G11174

PLATE

- driving (Standard for Utility tractor before #8191147 with gas engine)

1шт.

14

G45797

PLATE

- driving (Standard for Utility tractor #8191147 and after with gas engine)

1шт.

15

G45781

PLATE

- driving (Standard for Utility tractor before #8191147 w/diesel engine) Can use A36142

1шт.

16

G45799

PLATE

- driving (Standard for Utility tractor #8191147 and after w/diesel engine) Use A36036

1шт.

17

G45798

PLATE

- driving (heavy duty w/gas engine tractor #8191147 and after) Can use A36414

1шт.

18

G11539

PLATE ASSY.

PLATE - driving (heavy duty w/gasoline engine tractor before #8191147)

1шт.

19

G45800

X

PLATE - driving (heavy duty w/diesel engine tractor #8191147 and after) Use A36036

1шт.

20

G45782

X

PLATE - driving (heavy duty w/diesel engine tractor #8191147 and after) Can use A36142

1шт.

21

A36142

PLATE

- driving,ww/ferramic lining and rubber cushion hub (diesel engine tractor before #8191147)

1шт.

22

A36036

PLATE

- driving, w/ferramic lining and rubber cushion hub (diesel engine tractor #8191147 and after

1шт.

23

A36414

PLATE ASSY.

PLATE - driving, w/ferramic lining and rubber cushion hub (gas engine tractor #8191147 and after)

1шт.

24

G11825

KIT - facing, G11539 and G45798 plates (includes rivets)

1шт.

25

G37028

G45781 and G45799 plates (includes rivets)

1шт.

26

G37029

FACING

KIT - G45782 and G45800 plates (includes rivets)

1шт.

27

G45702

G11174 and G45797 plates (includes rivets)

1шт.

28

A36149

KIT

- facing, A36036, A36142 and A36414 plates (includes rivets)

1шт.
