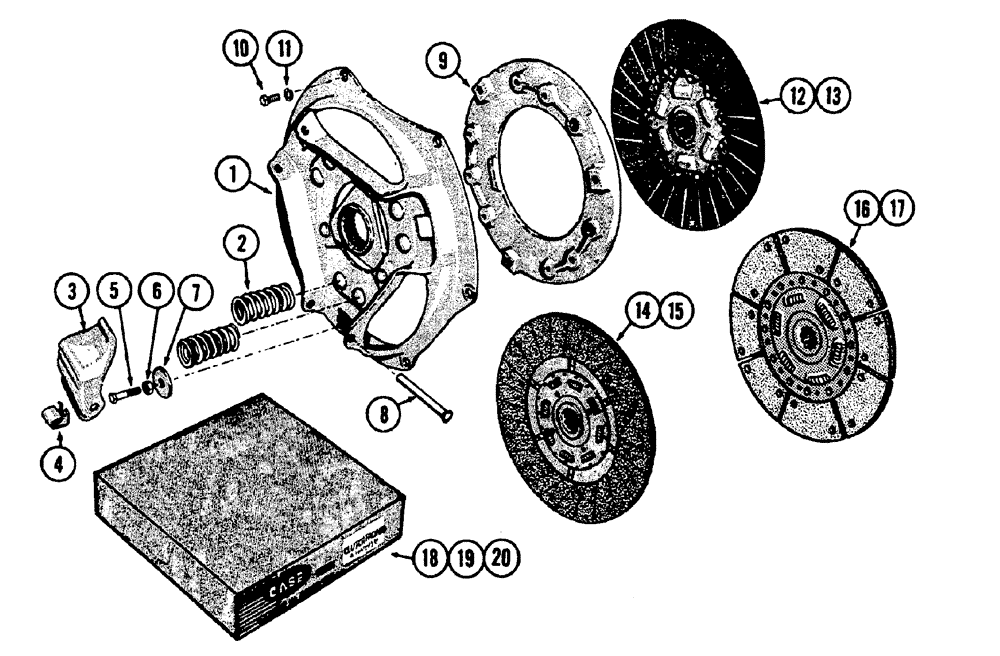

Запчасти Case IH 630 (055) - 10" CLUTCH (06) - POWER TRAIN

A36569

X

KIT - clutch replacement, (DIESEL ENGINE TRACTOR #8191147 AND AFTER) INCLUDES A36567 AND REF. 18 - A36147 PLATE1

1шт.

A36570

X

KIT - clutch replacement (Diesel engine tractor before #8191147) Includes A36567 and ref. 17 - A36145 plate

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET & HUB ASSEMBLY

1шт.

2

G47027

SPRING

- (light green)

6шт.

3

G47028

LEVER

- pressure plate

3шт.

4

G46061

CLIP

- return

3шт.

5

G49049

X

SCREW - adjusting

3шт.

6

G49005

NUT - jam, adjusting screw

3шт.

7

G49048

WASHER

- adjusting screw

3шт.

8

G47029

PIN

- pivot, lever

3шт.

9

A36568

PLATE

- pressure

1шт.

10

G49026

BOLT - pressure plate to flywheel (3/8" x 1-1/4")

6шт.

11

92-6

LOCK WASHER,3/8"

std. 3/8"

6шт.

12

G11178

PLATE

- driving (Gas engine tractor before #8191147)

1шт.

13

G45795

PLATE - driving (Gas engine tractor #8191147 and after)

1шт.

14

G45780

X

PLATE - driving (10 spline w/fiberfacing) Diesel tractor before #8191147) Use A36570 kit

1шт.

15

G45796

X

PLATE - driving (17 spline w/fiber facing) Diesel tractor #8191147 and after) Use A36569

1шт.

16

A36145

LARGE PLATE

PLATE - driving (w/ferramic facing and rubber cushion hub) Diesel tractor before #8191147

1шт.

A36145 or A36147 clutch plates will not replace spring cushion hub plates without using A36567 pressure plate. See A36569 and A36570 replacement clutch assembly

1шт.

17

A36147

PLATE

- driving (w/ferramic facing and rubber cushion hub) Diesel tractor #8191147 and after

1шт.

18

G45709

KIT - G11178 and G45795 plate (includes rivets)

1шт.

19

G37027

KIT - G45780 and G45796 plate (includes rivets)

1шт.

20

A36148

KIT - A36145 and A36147 plate (includes rivets)

1шт.
