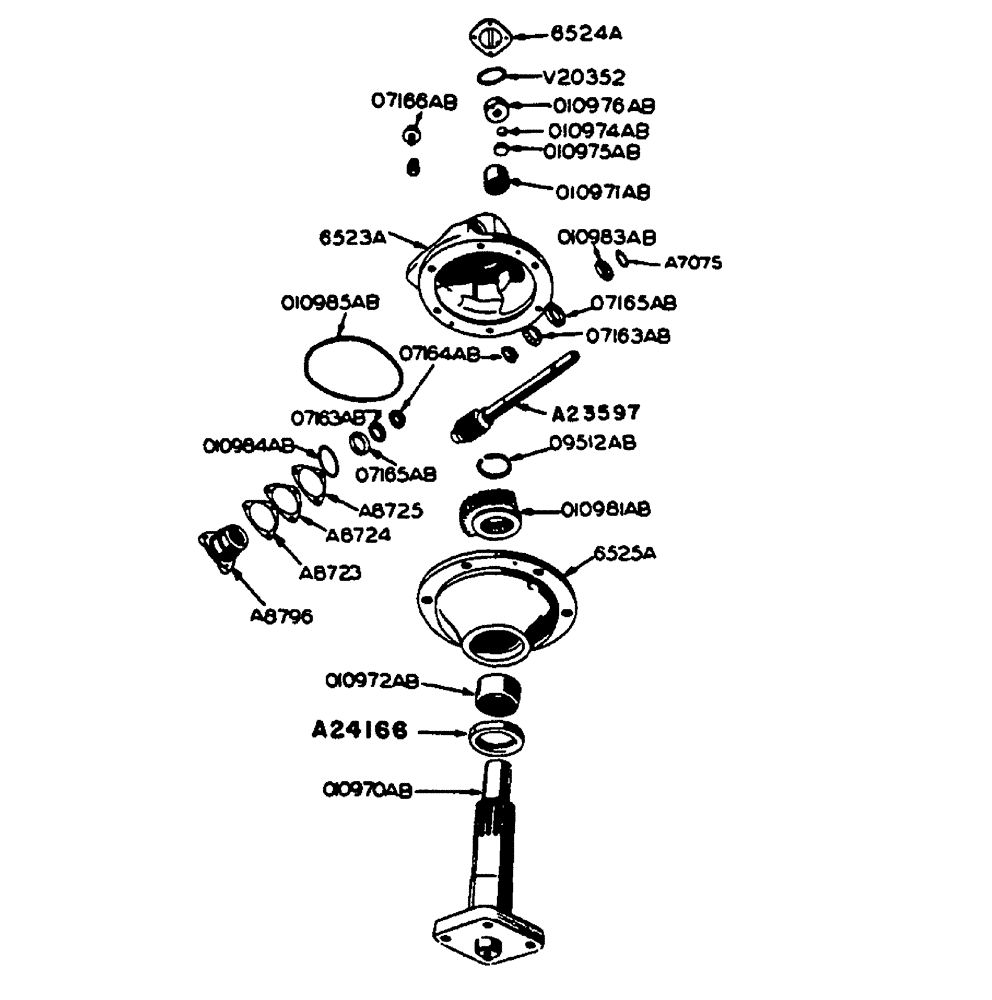

Запчасти Case IH 630 (092) - MECHANICAL STEERING GEAR GENERAL PURPOSE TRACTOR #8191147 AND AFTER (05) - STEERING

A7075

GASKET

GASKET - rubber, steering worm shaft

1шт.

A24166

SEAL

OIL - steering spindle

1шт.

A8723

SHIM,.003" Thk

Brg. carrier .003" Thk

4шт.

A8724

SHIM - bearing carrier (.005")

3шт.

A8725

SHIM,.010" Thk

Brg. carrier .010" Thk

4шт.

A8796

CARRIER - bearing, steering worm shaft

1шт.

A23597

WORM and SHAFT, steering

1шт.

#11 Woodruff key

1шт.

6523A

HOUSING - steering gear

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

1/2" P.T. x 1-1/8" std. pipe nipple

1шт.

1/2" x 1/4" P.T. reducer coupling

1шт.

1/4" sq. hd. pipe plug

1шт.

6524A

COVER - top, steering gear housing

1шт.

5/16" x 7/8" N.C. hex bolt w/lockwasher

4шт.

1/8" sq.hd. pipe plug

1шт.

6525A

HOUSING - steering upper spindle support

1шт.

5/8" x 2-1/4" N.C. hex hd. bolt w/lockwasher (I.T. Shakeproof)

6шт.

1/4" sq. hd. pipe plug

1шт.

07163AB

ROLLER ASSEMBLY - steering gear bearing (Timken #11BC)

2шт.

07164AB

CONE - bearing, steering gear (Timken #12CB)

2шт.

07165AB

CUP - bearing, steering gear (Timken #13C)

2шт.

07166AB

BREATHER - steering gear housing

1шт.

09512AB

RING - snap, upper spindle (.109 )

1шт.

010970AB

SPINDLE - upper section (1-9/16" spline)

1шт.

010971AB

BEARING - needle, upper spindle (Torrington #B2824)

1шт.

010972AB

BEARING - needle, upper spindle (Torrington #NB37)

1шт.

O10974AB

X

BALL - thrust, upper spindle (1" dia.)

1шт.

010975AB

SADDLE - ball, upper spindle

1шт.

010976AB

PLUG - retaining, thrust ball

1шт.

010981AB

GEAR - steering worm

1шт.

010983AB

SEAL - oil, steering worm shaft

1шт.

010984AB

"O" RING - bearing carrier, steering worm shaft

1шт.

010985AB

"O" RING - steering gear housing

1шт.

V20352

SCREW

"O" RING - top cover, steering gear housing

1шт.
