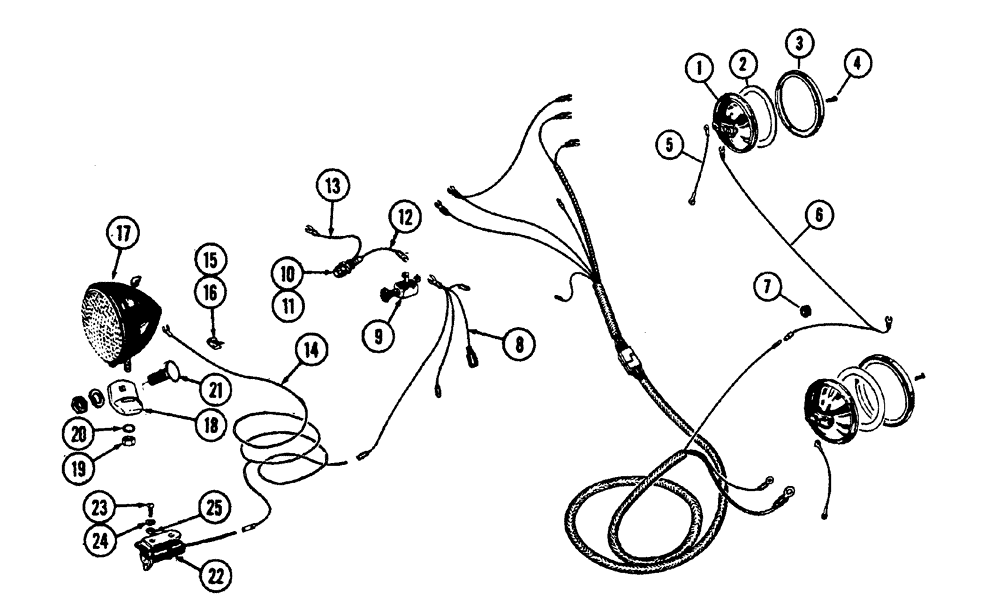

Запчасти Case IH 630 (051) - ELECTRIC LIGHTING (04) - ELECTRICAL SYSTEMS

1

A24572

LAMP

HAED LAMP - (includes gasket)

2шт.

2

A11276

GASKET

- head lamp

2шт.

3

A11275

RING

- retainer, head lamp

2шт.

4

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- #6-32 x 1" pan hd.

6шт.

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, , Gripco #6-32, GA

6шт.

5

A11768

ELECTRICAL WIRE

CABLE - ground, head lamp

2шт.

6

G44050

CABLE - extension, head lamp

1шт.

7

08332AB

GROMMET - extension cable

1шт.

8

G44048

CABLE - light switch (Before tractor #8200690. Included in master cable #8200690 and after)

1шт.

9

G13142

IGNITION SWITCH

SWITCH - light (includes knob)

1шт.

10

G44874

X

FUSE holder (w/wires attached) includes cap, fuse and cables

1шт.

11

A22874

HOLDER

FUSE HOLDER - (w/wires separate) includes cap and fuse

1шт.

223-20

FUSE,20 Amp, Type SFE

(Mfrs. #SFE-20) Not shown

1шт.

12

A22875

ELECTRICAL WIRE

CABLE - fuse for light switch (Use with A22874)

1шт.

13

A22876

ELECTRICAL WIRE

CABLE - fuse to starting switch (Use with A22874)

1шт.

14

G13162

CABLE - tail lamp and outlet (Before tractor #8200690)

1шт.

A35751

CABLE

- tail lamp and outlet (Tractor #8200690 and after)

1шт.

15

G46047

CLIP -, Serial Range: cable-fender

3шт.

16

02457AB

CLIP - cable

5шт.

17

A20965

LAMP BASE

LAMP - combination flood and tail

1шт.

18

6122A

X

BRACKET - tail lamp

1шт.

19

B50210

X

NUT -, Serial Range: lamp-bracket

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

92-6

LOCK WASHER,3/8"

std. 3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

22

A8170

SOCKET

- outlet

1шт.

23

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.
