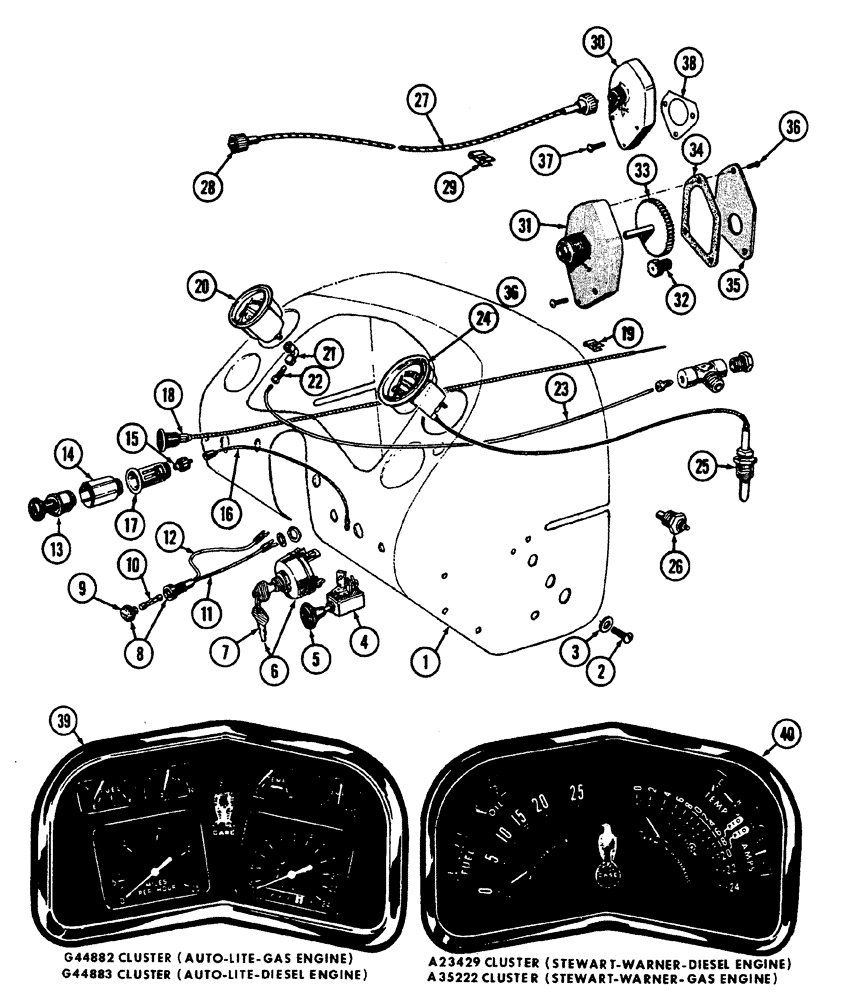

Запчасти Case IH 630 (047) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

G30394

PANEL - instrument mounting

1шт.

2

174-209

SCREW,Phil Rnd Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N.F. hex hd.

3шт.

3

195-518

WASHER,1/4", SAE

- 1/4" plain

3шт.

4

G13142

IGNITION SWITCH

SWITCH - light (includes knob)

1шт.

5

G13141

KNOB

- light switch

1шт.

6

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

A24511

SWITCH

- starting (Gas) includes keys

1шт.

7

A24509

KEY

- starting (See A20621)

1шт.

A20621

KEY

- starting (Indak) Before tractor #8201105

1шт.

8

G44874

X

HOLDER - fuse (w/wires attached) includes cap and fuse

1шт.

A22874

HOLDER

FUSE, (w/wires separate) includes cap and fuse

1шт.

9

A10958

CAP

- fuse holder

1шт.

10

223-20

FUSE,20 Amp, Type SFE

- (Mfrs. #SFE-20)

1шт.

11

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch (Use with A22874)

1шт.

12

A22876

ELECTRICAL WIRE

WIRE - fuse to starting switch (use with A22874)

1шт.

13

G13345

UNIT

LIGHTER UNIT - (Before tractor #8191147)

1шт.

G44919

LIGHTER UNIT - (Tractor #8191147 and after)

1шт.

14

G13344

SOCKET - (includes fuse and cable) Before tractor #8191147

1шт.

G44916

SOCKET

- (includes fuse and cable) Tractor #8191147 and after

1шт.

15

G44803

FUSE - lighter socket (Before tractor #8191147)

1шт.

G44918

FUSE - lighter socket (Tractor #8191147 and after)

1шт.

16

G44022

ELECTRICAL WIRE

CABLE - lighter socket (Before and after)

1шт.

17

G46107

PIN

SHELL - clamping, lighter socket (Before tractor #8191147)

1шт.

G46381

SHELL - clamping, lighter socket (Tractor #8191147 and after)

1шт.

18

G45366

WIRE - choke (Gas engine)

1шт.

G45367

WIRE - shut-off (Diesel engine)

1шт.

19

04599AB

CLIP - choke rod

1шт.

02825A6

CLIP - shut-off rod

1шт.

20

A49058

X

GAUGE - converter oil pressure

1шт.

21

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- tube to gauge (incl. Ref. 22)

1шт.

22

222-500

TUBE NUT,5/16" - 24 NPT

NUT - tube, 1/8"

2шт.

23

G46292

TUBE,0.125" OD x 28" L

- oil pressure gauge to converter valve

1шт.

24

A49059

X

GAUGE - converter temperature

1шт.

25

A23599

TUBE NUT

ADAPTER - temperature bulb

1шт.

26

A21642

SENDER - engine temperature

1шт.

27

G45357

CABLE

ASSEMBLY - Tachometer drive (50-1/2" long)

1шт.

28

A24523

KIT

CABLE KIT - tachometer drive

1шт.

29

06168AB

CLIP - tachometer cable

1шт.

30

G45274

TACHOMETER

DRIVE ASSEMBLY - tachometer (includes ref. 31 thru 36)

1шт.

31

G45303

HOUSING

- tachometer drive

1шт.

32

A36522

GEAR WHEEL

GEAR - driven, tachometer drive

1шт.

33

G46306

GEAR WHEEL

GEAR - drive, tachometer drive

1шт.

34

G46882

GASKET

- cover, tachometer drive

1шт.

35

G46307

COVER - tachometer drive

1шт.

36

182-83

SCREW

- cover, #8-32 x 5/16" pan hd.

3шт.

37

119-518

SCREW - tach drive to generator, #8-32 x 1" pan hd.

3шт.

38

G46878

GASKET

- tach, Serial Range: drive-generator

1шт.

39

G44882

CLUSTER, (Auto-Lite for Gas Engine)

1шт.

Repair parts shown on Fig. 47

1шт.

G44883

CLUSTER - instrument (Auto-Lite for Diesel Engine)

1шт.

Repair parts shown on Fig. 47

1шт.

40

A35222

INSTRUMENT CLUSTER

CLUSTER - (Stewart-Warner for Gas Engine)

1шт.

Repair parts shown on Fig. 49

1шт.

A23429

PANEL

CLUSTER - instrument (Stewart-Warner for Diesel Engine)

1шт.

Repair parts shown on Fig. 49

1шт.
