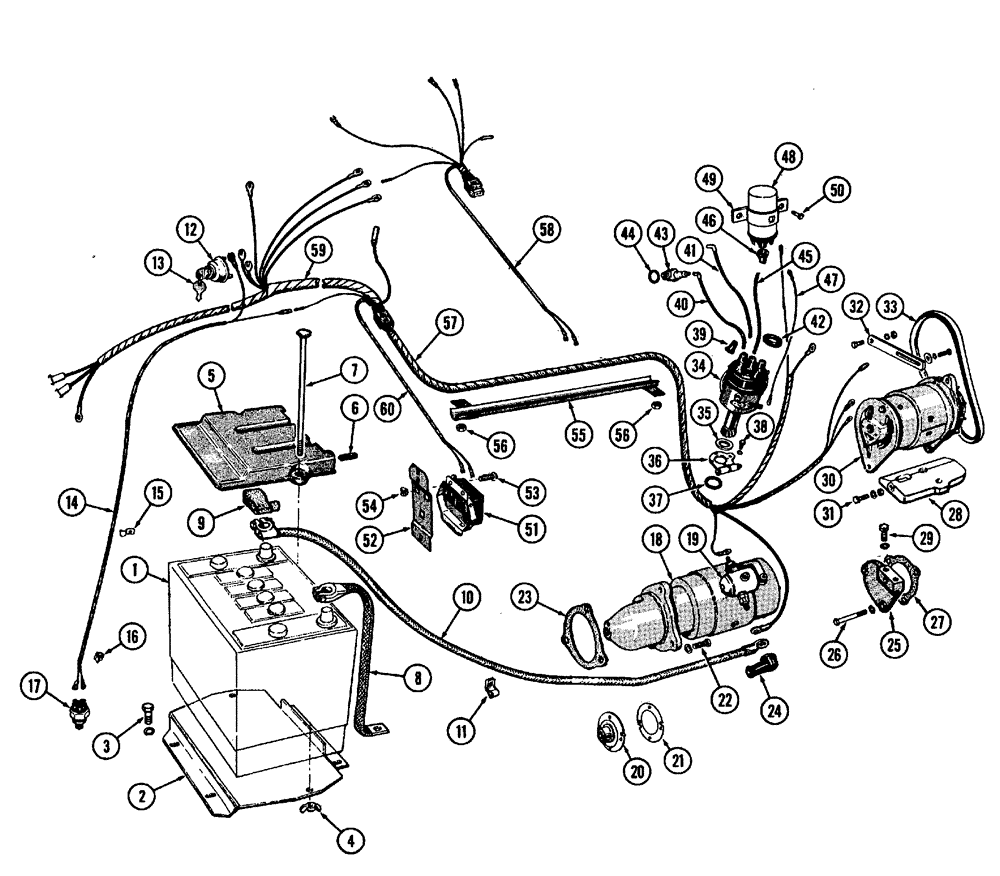

Запчасти Case IH 630 (044) - ELECTRICAL SYSTEM - GAS ENGINE (04) - ELECTRICAL SYSTEMS

1

11MS

BATTERY - 12 volt

1шт.

2

G30267

BASE

BASE - battery

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8" x 1-1/2" N.C. hex hd.

4шт.

92-6

LOCK WASHER,3/8"

LOCK WASHER, , std. 3/8"

4шт.

4

G49020

NUT

NUT - wing, cover bolt (5/16" N.C.)

2шт.

5

G30268

COVER

COVER - battery (incl. Ref. 6)

1шт.

6

G46164

SPARE PART MOLDING - rubber

2шт.

7

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16" x 9" rd. hd. sq. nk. (plated)

2шт.

8

VT2336

X

STRAP - ground

1шт.

9

G46879

COVER

COVER - rubber, battery terminal

1шт.

10

G44049

CABLE

SPARE PART CABLE -, Serial Range: battery-solenoid

1шт.

11

G16005

SPARE PART CLIP - cable

1шт.

12

A24511

SWITCH

SWITCH - starting w/key (Gas) (includes A24509 keys)

1шт.

13

A24509

KEY

KEY - starting switch (See A20621)

1шт.

A20621

KEY

KEY - starting switch (Before tractor #8201105)

1шт.

14

G44066

CABLE

CABLE - starting switch to safety switch

1шт.

15

07532AB

CLIP - cable to fuel tank

1шт.

16

G46047

SPARE PART CLIP - cable to battery base

1шт.

17

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

18

G44880

SPARE PART MOTOR starting - (Auto-Lite #MDU-7102) includes ref. 19, 20 & 21

1шт.

19

A20145

X

SOLENOID - starting (Auto-Lite #SAW-4201)

1шт.

20

G45478

PLATE

PLATE - bearing and oil seal (Auto-Lite MDL-1080A)

1шт.

21

G46910

GASKET

GASKET - bearing plate (Auto-Lite #MDL-73)

1шт.

22

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

92-6

LOCK WASHER,3/8"

LOCK WASHER, , std. 3/8"

3шт.

23

G46873

GASKET

GASKET - starting motor (w/Case-O-Matic only)

1шт.

24

A21753

CAP

NIPPLE - terminal

1шт.

25

G2098

SPARE PART SUPPORT - generator bracket (with no power steering)

1шт.

26

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8" x 3-1/4" N.C. hex hd.

3шт.

92-6

LOCK WASHER,3/8"

LOCK WASHER, , std. 3/8"

3шт.

27

VT3691

X

GASKET -, Serial Range: support-block

1шт.

28

G2131

X

BRACKET - generator mounting

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - 5/16" x 1-1/2" N.C. hex hd.

1шт.

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

2шт.

30

G44879

SPARE PART GENERATOR - (Auto-Lite #GJT-7104A) includes G4521 pulley

1шт.

30

108012A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

30

108012A1C

CORE

Return Number, Generator, 12 volt 11 ampere

1шт.

G4521

PULLEY

PULLEY - generator drive (Auto-Lite #DU-548) Not Shown

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

2шт.

32

G11344

SPARE PART STRAP - adjusting generator

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

BOLT - std. 3/8"

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

BOLT - 5/16" x 1-1/4" N.F. hex hd.

1шт.

33

A49149

X

BELT - generator drive

1шт.

34

VTA2758

X

DISTRIBUTER, (Auto-Lite #IAD-6003-2F)

1шт.

35

VT5060

X

WASHER - thrust (Auto-Lite #IG-816)

1шт.

36

VTA2775

X

ARM - advance distributor (Auto-Lite #IG-186O-A1)

1шт.

37

VT4593

X

"O" RING -, Serial Range: distributor-block

1шт.

38

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

39

VT3561

X

NIPPLE - distributor wire

5шт.

40

G44044

ELECTRICAL WIRE

WIRE WIRE - #1 and #4 spark plug (11-1/2" long)

2шт.

41

VT2879

X

WIRE - #2 and #3 spark plug (10-1/2" long)

2шт.

42

V20356

NUT

"O" RING - harness, spark plug wire

1шт.

43

G44840

SPARK PLUG

SPARK PLUG - (includes gasket)

4шт.

44

G46839

GASKET

GASKET - spark plug

4шт.

45

G44045

SPARE PART CABLE - coil to distributor (6" long)

1шт.

46

G46803

BOOT

NIPPLE - coil cable

1шт.

47

G13085

ELECTRICAL WIRE

WIRE CABLE - coil to distributor (12" long)

1шт.

48

A33438

COIL

COIL - ignition

1шт.

49

G46106

BRACKET

CLAMP - coil (includes #10-32 x 1-1/2" screw)

1шт.

50

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

SCREW - coil to head, 5/16" x 1/2" N.C. hex hd. screws

2шт.

51

G44878

REGULATOR

REGULATOR - voltage (Auto-Lite #VBO-62010-1)

1шт.

52

G15617

BRACKET - voltage regulator

1шт.

53

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

SCREW - 1/4" x 1/2" truss hd.

3шт.

54

131-102

SPRING NUT,Ret, 1/4"-20

NUT, Ret, 1/4"-20

3шт.

55

A20411

CONDUIT - master cable

1шт.

56

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

57

G44063

SPARE PART CABLE - master, lower half (use with Auto-Lite Cluster See Fig. 46)

1шт.

A35305

CABLE

CABLE - master, lower half (use with Stewart-Warner Cluster See Fig. 46)

1шт.

58

G44062

CABLE

CABLE - master, upper half (use with Auto-Lite Cluster See Fig. 46)

1шт.

59

A35304

HARNESS

CABLE - master, upper half (use with Stewart-Warner Cluster (See Fig. 46)

1шт.

60

G44051

CABLE PULLING GRIP

CABLE - ammeter to master cable

1шт.
