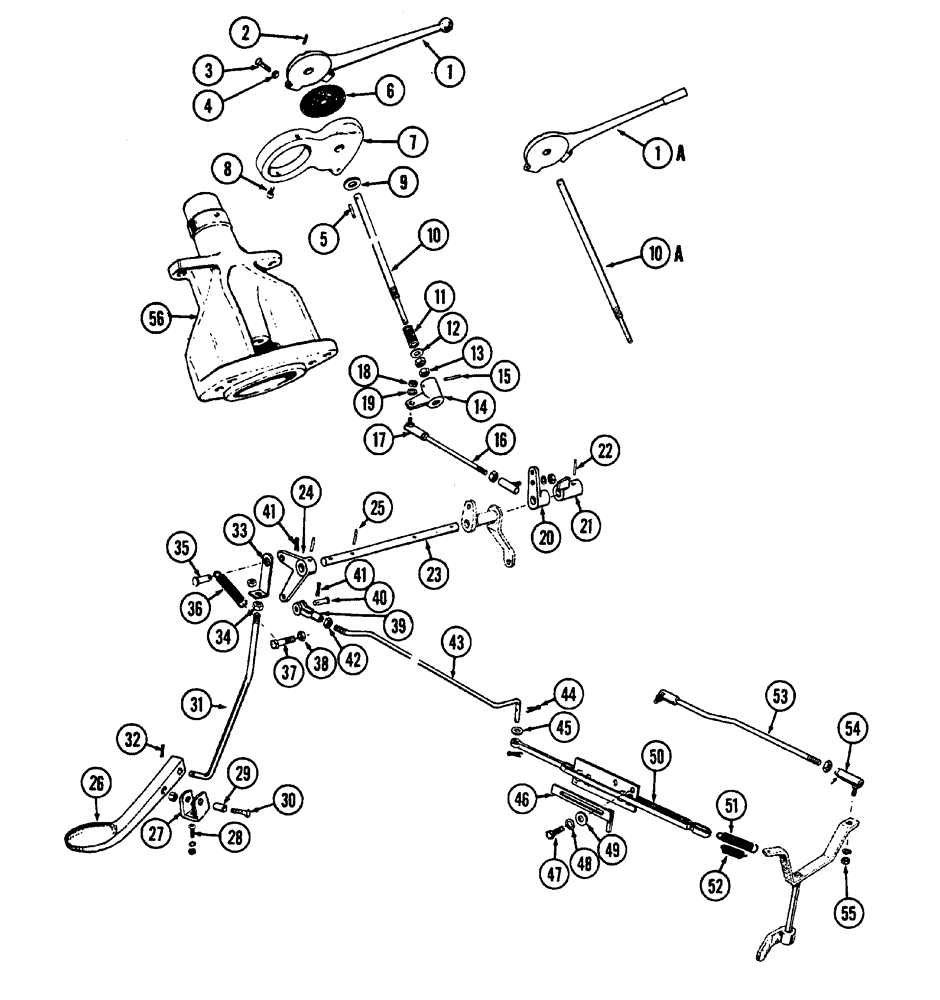

Запчасти Case IH 630 (020) - GAS THROTTLE LINKAGE - TRACTOR #8218458 AND AFTER (03) - FUEL SYSTEM

1

A35632

X

LEVER - hand (Can use 1A and 10A)

1шт.

1a

A36513

LEVER

- hand (Use with A36512 Shaft ref. 10A)

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Stop Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, , Lever stop 1/4" x 1 1/8", Slotted

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

A35706

SUPPORT - hand lever and disc

1шт.

8

09788AB

SCREW- set, support

2шт.

9

01509B

WASHER - spacer

1шт.

10

A35643

SHAFT - hand lever (12-1/4" long) Use with A35632 ref. 1

1шт.

10a

A36512

SHAFT

- hand lever (12-1/16" long) Use with A36513 ref. 1A

1шт.

11

A22618

SPRING

- tension

1шт.

12

195-33

WASHER,1/2"

- plain 1/2"

1шт.

13

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F.

2шт.

14

A35644

LEVER ower

1шт.

15

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

16

A35642

ROD

- intermediate

1шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

2шт.

18

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

A35638

LEVER

- cross shaft

1шт.

21

A35639

LEVER

- override, foot throttle

1шт.

22

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

23

A35637

SHAFT - cross

1шт.

24

A35633

LEVER - throttle rod

1шт.

25

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

26

G15692

PEDAL

- foot throttle

1шт.

27

G15694

BRACKET

- pivot, foot pedal

1шт.

28

77-512

SCREW

- truss hd., 5/16" x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

29

G49618

BUSHING

- pedal pivot

1шт.

30

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex hd.

1шт.

31

A35830

ROD

- foot throttle

1шт.

32

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

33

G16898

LINK - foot throttle rod

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

2шт.

35

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

36

O1294FS

X

SPRING - return

1шт.

37

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex hd.

1шт.

38

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

39

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - throttle rod

1шт.

40

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

41

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

42

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

43

A35634

ROD

- throttle

1шт.

44

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

2шт.

45

95-6

WASHER,3/8"

- plain 3/8"

1шт.

46

G45792

STOP

- governor control

1шт.

47

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

49

195-521

WASHER,5/16", SAE

- 5/16" plain (pltd.)

2шт.

50

G45793

ROD

- governor control

1шт.

51

G48515

SPRING

- outer, governor control

1шт.

52

G48510

X

SPRING - inner, governor control

1шт.

53

G45310

ROD ASSY.

ROD - carburetor (incl. Ref. 54 & 55)

1шт.

54

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

55

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

3шт.

56

A36525

COLUMN - steering shaft (includes bushings)

1шт.
