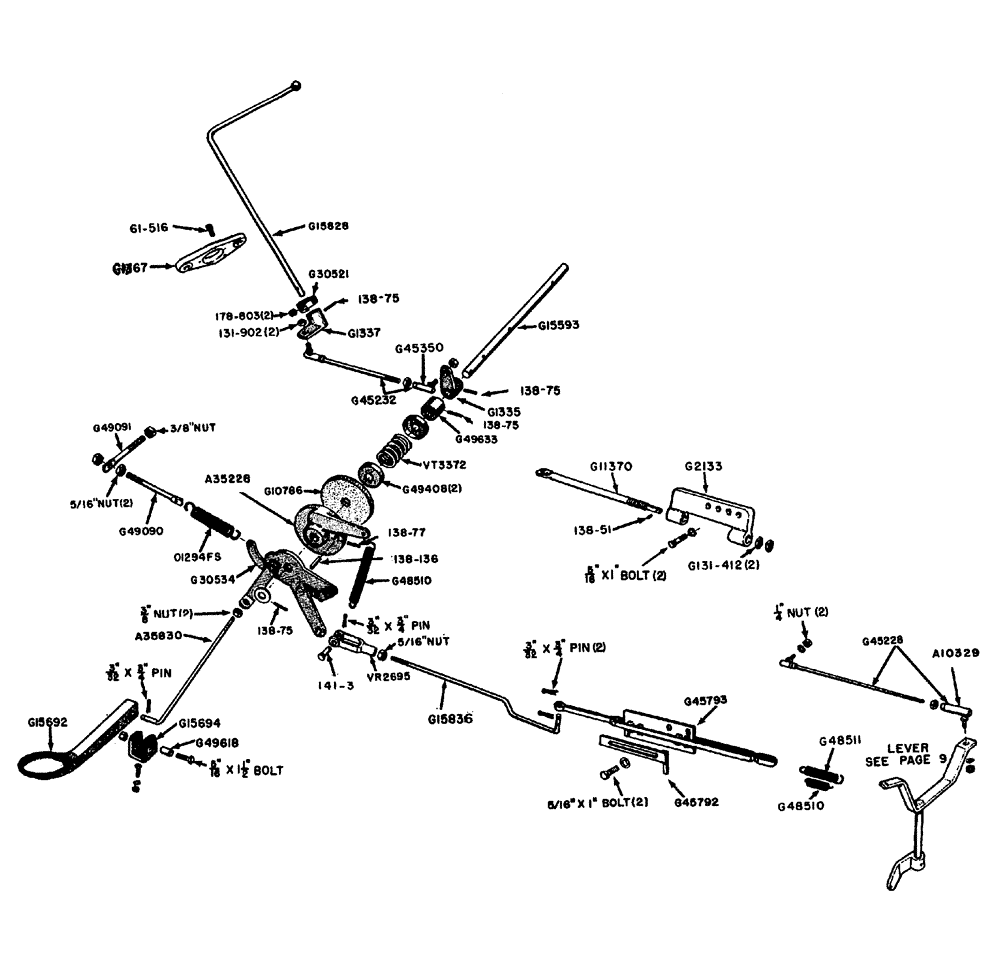

Запчасти Case IH 630 (019) - THROTTLE CONTROL LINKAGE - TRACTOR #6165270 THRU 8218458, FOOT THROTTLE (03) - FUEL SYSTEM

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting link to lever 5/16" x .940"

1шт.

3/32" x 3/4" cotter pin

1шт.

G1335

LEVER - throttle control, cross shaft

1шт.

G1337

LEVER

- lower, throttle control handle

1шт.

G1367

Plate - throttle control handle (General Purpose w/power steering)

1шт.

A35228

PLATE

- friction

1шт.

G2133

GUIDE

- governor control rod

1шт.

5/16" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G4520

COLLAR - (Use G30521)

1шт.

G10786

DISC

- cork, friction plate

1шт.

A10329

BALL JOINT,1/4" - 28 x 1"

- (part of G45228)

1шт.

G11370

ROD - governor control

1шт.

G15593

SHAFT - cross

1шт.

7/16" plain washer

1шт.

G15828

HANDLE

- throttle control

1шт.

G15836

LINK - connecting, governor control rod

1шт.

3/32" x 3/4" cotter pin

2шт.

G30521

COLAR - lock, throttle handle (includes (2) G178-803 set screws)

2шт.

G30534

LEVER - cross shaft to governor control

1шт.

G4S228

ROD - governor arm to carburetor (includes ball joints)

1шт.

G45232

BALL

JOINT ASSEMBLY - double, throttle handle to cross shaft (includes G45350)

1шт.

G45350

BALL JOINT

- (part of G45232)

1шт.

G45792

STOP

- governor control

1шт.

5/16" plain washer

2шт.

G45793

ROD

- governor control

1шт.

G48510

X

SPRING - tension, throttle lever

1шт.

5/16" N.F. hex jam nut and lockwasher

1шт.

G48510

X

SPRING - inner, governor speed control

1шт.

G48511

SPRING

- outer, governor speed control

1шт.

G49090

EYEBOLT - adjusting, tension spring

1шт.

G49091

EYEBOLT - anchor, tension spring

1шт.

3/8" N.C. hex nut

1шт.

G49408

SEAT - tension spring, friction plate

2шт.

G49633

SPACER - retaining, tension spring

1шт.

VT3372

SPRING

- tension, friction plate

1шт.

01294FS

SPRING - lever to anchor bolt

1шт.

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - connecting link

1шт.

5/16" N.F. hex jam nut

1шт.

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - cap, G1367 support (5/16" x 1" N.C. socket hd.)

1шт.

5/16" lockwasher

1шт.

131-412

NUT - lock, governor control rod (7/16" N.F. Pal nut)

2шт.

131-902

NUT,1/4"-28

- lock, G45232 to lever (1/4" N.F. Two-Way)

2шт.

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Spring anchor 1/8" x 3/8", Slotted

1шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Throttle handle and cross shaft 5/32" x 7/8", Slotted

4шт.

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Friction plate to shaft 5/32" x 1", Slotted

1шт.

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Lever stop 1/4" x 1 1/4", Slotted

1шт.

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - throttle handle collar (1/4" x 1/2" socket hd., Nylok)

2шт.

G15692

PEDAL

- foot throttle

1шт.

5/16" x 1-1/2" N.F. hex hd. bolt w/hex nut, lockwasher and plain washer, foot throttle

1шт.

G15694

BRACKET

- pivot, foot pedal, throttle

1шт.

5/16" x 3/4" truss hd. mach. screw w/hex nut and lockwasher, foot throttle

2шт.

A35830

ROD

- connecting, foot throttle

1шт.

3/8" N.F. hex nut, foot throttle

2шт.

3/32" x 3/4" cotter pin, foot throttle

1шт.

G49618

BUSHING

- pivot, foot pedal, throttle

1шт.
