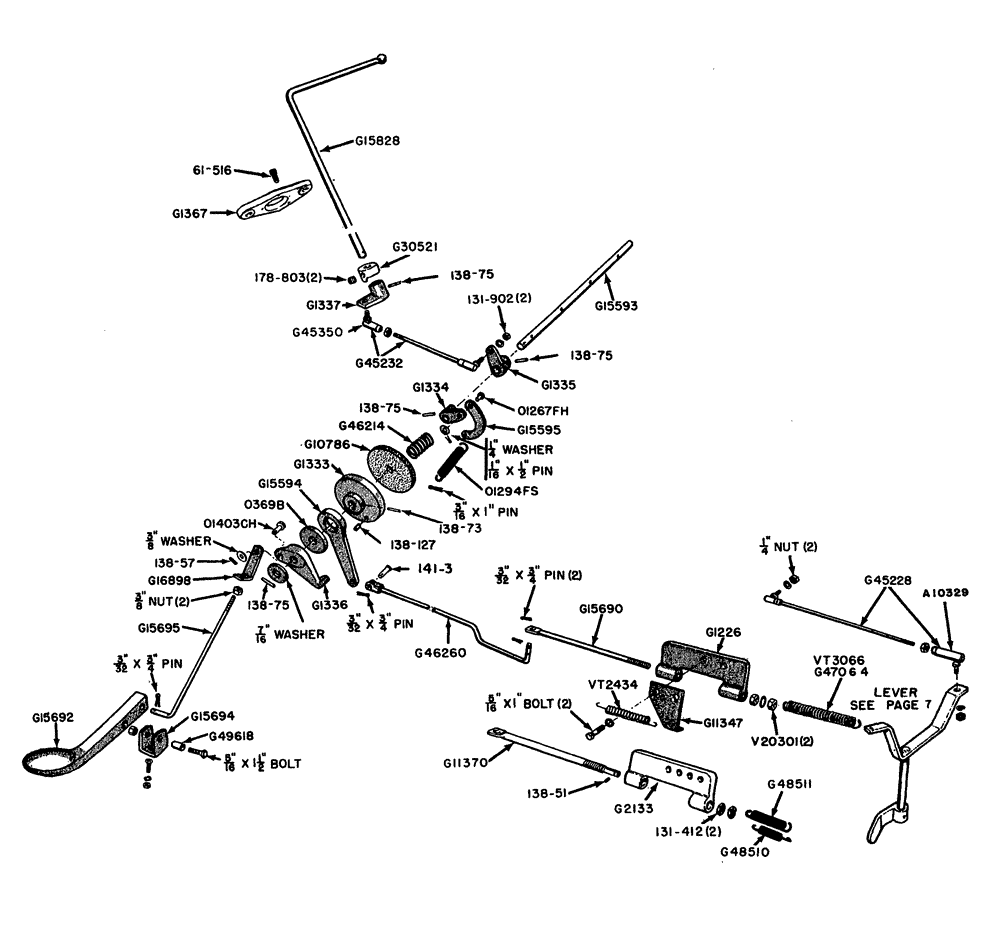

Запчасти Case IH 630 (018) - THROTTLE CONTROL LINKAGE - BEFORE TRACTOR #6165270 (03) - FUEL SYSTEM

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting link to lever 5/16" x .940"

1шт.

3/32" x 3/4" cotter pin

1шт.

G1226

GUIDE - governor control rod

1шт.

5/16" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G1333

PLATE - friction

1шт.

G1334

LEVER - spring balance

1шт.

G1335

LEVER - cross shaft

1шт.

G1336

LEVER - cross shaft actuating, foot throttle

1шт.

G1337

LEVER

- lower, hand lever

1шт.

G1367

PLATE - throttle handle (General Purpose w/power steering)

1шт.

G4520

COLLAR - (Use G30521)

1шт.

G10786

DISC

- cork, friction plate

1шт.

G10329

BALL JOINT - (part of G45228)

1шт.

G11347

BRACKET - return spring

1шт.

G15593

SHAFT - cross

1шт.

G15594

LEVER - cross shaft to connecting link

1шт.

G15595

LEVER - over-center, cross shaft

1шт.

G15690

ROD - governor control

1шт.

G15828

HANDLE

- throttle control

1шт.

G30521

COLLAR - lock, throttle handle (includes (2) G178-803 set screws)

1шт.

G45228

ROD

- governor arm to carburetor (includes ball joints)

1шт.

1/4" N.F. hex nut and lockwasher

2шт.

G45232

BALL

JOINT ASSEMBLY - control handle to cross shaft (includes G45350)

1шт.

G45350

BALL JOINT

(part of G45232)

1шт.

G46214

SPRING

- tension, friction plate

1шт.

G46260

LINK - connecting, throttle

1шт.

3/32" x 3/4" cotter pin

2шт.

G47064

SPRING

- governor speed control (w/Case-O-Matic drive)

1шт.

VT2434

X

SPRING - return

1шт.

VT3066

X

SPRING - governor speed control (w/dry clutch drive)

1шт.

0369B

WASHER - spacer, actuating lever (1-11/16" O.D. x 55/64" I.D. #14 gal. )

1шт.

01267FH

RIVET - drilled, over-center lever (1/4" x 5/8")

1шт.

1/4" plain washer

1шт.

1/16" x 1" cotter pin

1шт.

01294FS

SPRING - over-center lever

1шт.

3/16" x 1" cotter pin

1шт.

V20301

LOCK WASHER

NUT - adjusting, governor control rod (3/8" N.F.)

2шт.

3/8" I.T. Shakeproof lockwasher

1шт.

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - G1367 support (5/16" x 1" N.C. Socket hd.)

1шт.

131-902

NUT,1/4"-28

- lock, G45232 ball joint (1/4" N.F. Two-Way)

2шт.

138-73

LOCK PIN,5/32" x 3/4", Slotted

ROLL PIN - friction plate (1/4" x 1-1/8")

1шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Throttle handle 5/32" x 7/8", Slotted

1шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Cross shaft 5/32" x 7/8", Slotted

3шт.

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , G1333 Friction plate 1/4" x 1/2", Slotted

1шт.

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - lock collar (1/4" x 1/2" N.F. socket hd. Nylok)

2шт.

G2133

GUIDE

- governor control rod, double spring

1шт.

5/16" x 1" N.C. hex hd. bolt w/lockwasher, double spring governor control

2шт.

G11370

ROD - governor control, double spring

1шт.

G48510

X

SPRING - inner, governor speed control, double spring

1шт.

G48511

SPRING

- outer, governor speed control, double spring

1шт.

131-412

NUT - lock, governor control rod (7/16" N.F. Pal nut), double spring

2шт.

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Spring anchor, double governor control 1/8" x 3/8", Slotted

1шт.

G15692

PEDAL

- foot throttle

1шт.

5/16" x 1-1/2" N.F. hex hd. bolt w/hex nut, lockwasher and plain washer, foot throttle

1шт.

G15694

BRACKET

- pivot, foot pedal, throttle

1шт.

5/16" x 3/4" truss hd. mach. screw w/hex nut and lockwasher, foot throttle

2шт.

G15695

X

ROD - connecting, foot throttle

1шт.

3/8" N.F. hex nut, foot throttle

2шт.

3/32" x 3/4" cotter pin, foot throttle

1шт.

G16898

LINK - connecting, yoke to lever, foot throttle

1шт.

G49618

BUSHING

- pivot, foot pedal, throttle

1шт.

O1403CH

RIVET - drilled, G16898 link to G1336 lever (3/8" x 3/4"), foot throttle

1шт.

3/8" plain washer, foot throttle

1шт.

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Drilled rivet, foot throttle 1/8" x 3/4", Slotted

1шт.
