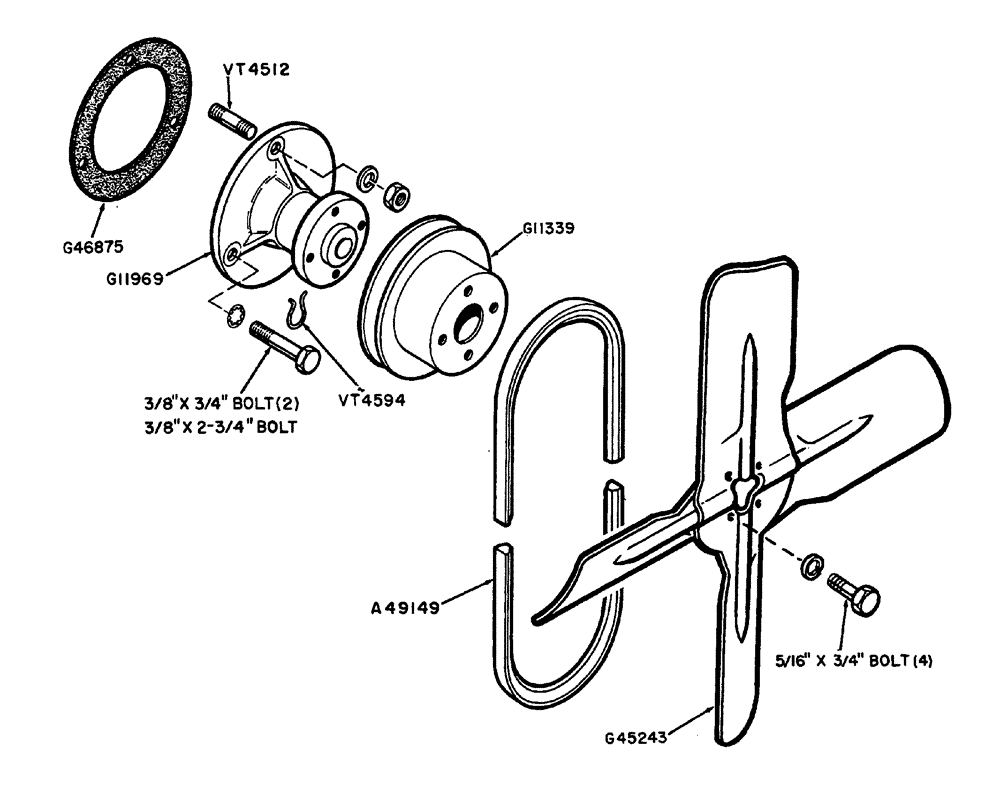

Запчасти Case IH 630 (011) - WATER PUMP AND FAN (02) - ENGINE

A49149

X

"V" Belt - fan drive

1шт.

G11339

PULLEY

PULLEY - water pump and fan

1шт.

G11969

X

ASSEMBLY water pump (includes G4687S gasket)

1шт.

3/8" x 3/4" N.C. hex hd. bolt w/lockwasher

1шт.

3/8" x 2-3/4" N.C. hex hd. bolt w/lockwasher

1шт.

G45243

FAN

FAN

1шт.

5/16" x 3/4" N.C. hex hd. bolt w/lockwasher

4шт.

G46238

BELT,0.55" W x 17.78" L

Fan Drive, Use A49149

1шт.

G46875

GASKET

GASKET -, Serial Range: pump-head

1шт.

VT341

SPARE PART BODY - pump (Use G11969)

1шт.

VT4594

X

RING - retainer

1шт.

VT4512

X

STUD - water pump

1шт.
