Запчасти Case IH 630 (007) - VALVES AND PUSH RODS, VALVE ROCKER ARMS-GAS (02) - ENGINE

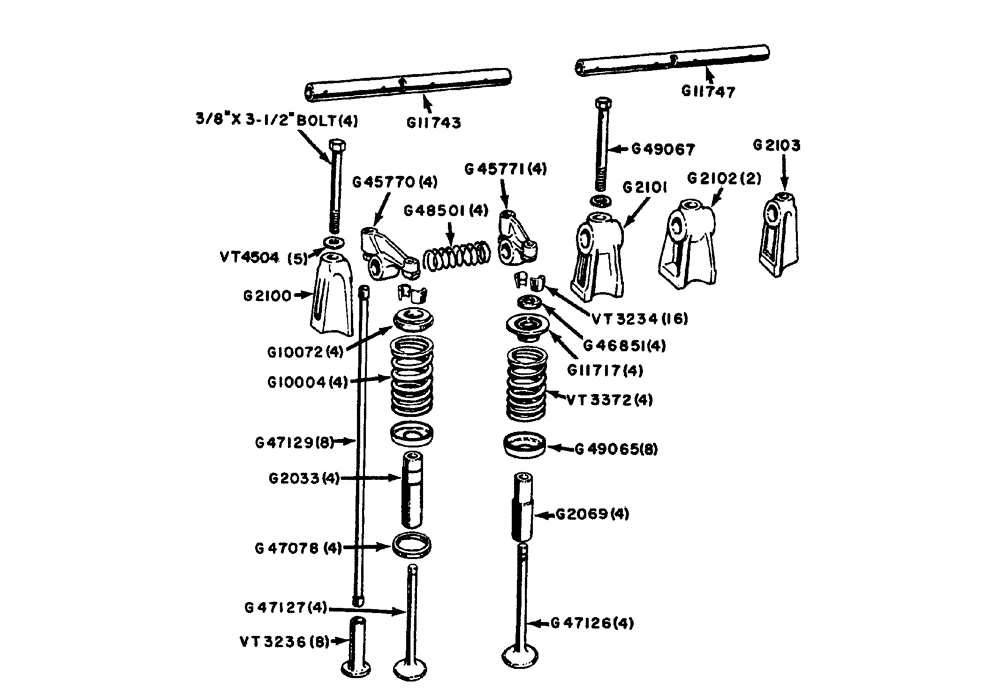

Схема запчастей Case IH 630 - (007) - VALVES AND PUSH RODS, VALVE ROCKER ARMS-GAS (02) - ENGINE
vt3236
g47129
g11747
g48501
g2102
g47078
g45770
g10004
g2103
g45771
g49065
vt4504
g2100
g2101
g2069
g47126
g10072
g46851
g11717
vt3234
g47127
vt3372
g2033
g11743
g49067

Артикул

Название

Примечание

Количество

G2033

GUIDE

- exhaust valve stem (Use G11861)

4шт.

G2069

GUIDE

- intake valve stem (Use G11946)

4шт.

G10004

SPRING

- exhaust valve

4шт.

G10072

CAP

ROTO - exhaust valve (Use G11928)

4шт.

G11717

RETAINER

- intake valve spring (Use G11927)

4шт.

G11861

GUIDE

S - exhaust valve stem (set of 4)

1шт.

G11927

RETAINER

Set of 4-G11717 retainers and 8-VT3234 locks

1шт.

G11928

CAP

Set of 4-G10072 exhaust valve roto-caps

1шт.

G11929

LOCK

Set of 4-VT3234 valve spring retainer locks

4шт.

G11946

GUIDE

S - intake valve stem (set of 4)

1шт.

G11986

KIT

INSERTS - exhaust valve seat (set of 4-G47078)

1шт.

G11987

VALVE

S - intake (set of 4)

1шт.

G11988

VALVE

S - exhaust (set of 4)

1шт.

G46851

SEAL

- rubber, intake valve

4шт.

G47078

INSERT - exhaust valve seat (Use G11986)

4шт.

G47126

VALVE,ENGINE,INLET,S

VALVE - intake (Use G11987)

4шт.

G47127

ROD

VALVE - exhaust (Use G11988)

4шт.

G47129

PUSH ROD

8шт.

G49065

SEAT

- valve spring

8шт.

VT3234

X

LOCK - retaining, valve spring (See G11927 and G11929)

16шт.

VT3236

X

TAPPET - valve

8шт.

VT3372

SPRING

- intake valve

4шт.

G2100

BRACKET

- front, rocker arm shaft, valve rocker arms

1шт.

3/8" x 3-1/2" N.C. hex hd. bolt, valve rocker arms

1шт.

G2101

BRACKET

- center, rocker arm shaft, valve

1шт.

G2102

BRACKET

- intermediate, rocker arm shaft, valve

2шт.

3/8" x 3-1/2" N.C. hex hd. bolt, valve rocker arms

2шт.

G2103

X

BRACKET - rear, rocker arm shaft

1шт.

3/8" x 3-1/2" N.C. hex hd. bolt, valve rocker arms

1шт.

G11743

SHAFT

- rocker arm front, valve

1шт.

G11747

X

SHAFT - rocker arm rear, valve

1шт.

G45770

ARM

- rocker, R.H. (includes G49075 adjusting screw), valve

4шт.

G45771

ARM

- rocker, L.H. (includes G49075 adjusting screw), valve

4шт.

G48501

SPRING

- rocker arm shaft, valve

4шт.

G49067

BOLT

- drilled, center bracket (3/8" x 3-1/2" N.C. hex hd.), valve rocker arms

1шт.

3/8" plain washer, valve rocker arms

1шт.

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm (not shown), valve

8шт.

VT4504

WASHER

- rocker shaft bracket bolt, valve

5шт.

Выбрано товаров: 38
