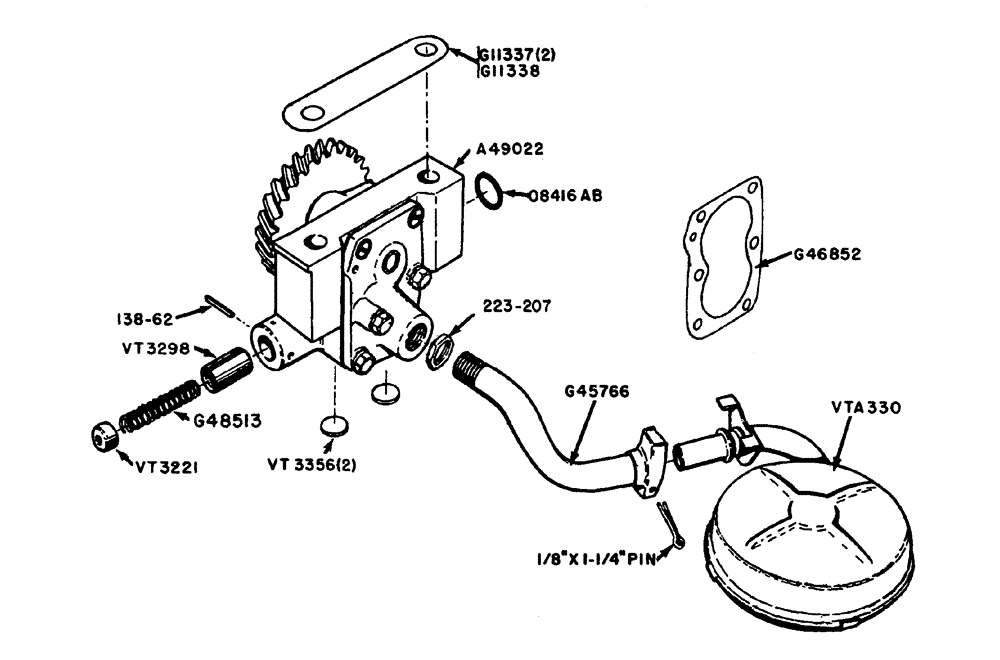

Запчасти Case IH 630 (005) - ENGINE OIL PUMP (02) - ENGINE

G2038

X

BODY (Use A49022)

1шт.

G2039

COVER

- (Use A49022)

1шт.

G11337

SHIM,.002" Thk

Pump to bearing cap .002" Thk

2шт.

G11338

SHIM,.005" Thk

Pump to bearing cap .005" Thk

1шт.

A49022

X

PUMP complete oil (includes drive gears, idler stud, and G46852 gasket)

1шт.

G45766

PIPE, EXHAUST SYSTEM

PIPE -, Serial Range: float-pump

1шт.

G46852

GASKET

-, Serial Range: cover-body

1шт.

G48513

VALVE SPRING

SPRING - relief

1шт.

08416AB

"O" RING - port hole, pump body

1шт.

VT3221

X

RETAINER - spring, relief valve

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3356

PLUG - pump body

2шт.

VTA330

ASSEMBLY float - oil pan (includes screen)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL - retainer, relief valve (1/8" x 1-1/4")

1шт.

223-207

LOCK NUT

NUT - lock, G45766 pipe (3/8" P.T. conduit nut)

1шт.
