Запчасти Case IH 630 (133) - FRONT END WEIGHTS AND BUMPERS (09) - CHASSIS

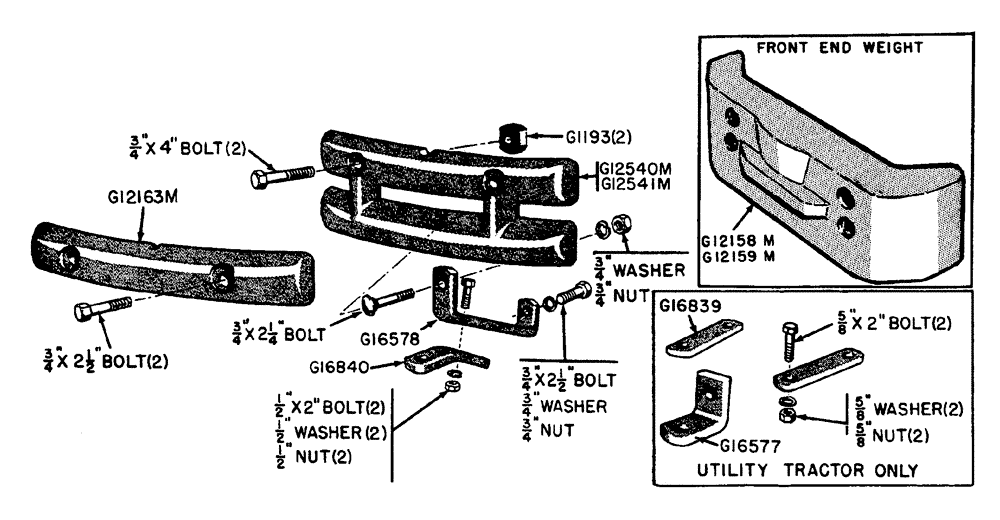

Схема запчастей Case IH 630 - (133) - FRONT END WEIGHTS AND BUMPERS (09) - CHASSIS
g12158m
g12541m
g16577
g12163m
g16840
g16839
g12540m
g1193
g12159m
g16578

Артикул

Название

Примечание

Количество

A20338

WEIGHT, (Use G12158M or G12159M)

1шт.

G1192

SPARE PART BUMPER (Use G12163M)

1шт.

G1193

SPACER - double bar bumper (Gen Purpose w/adjustable front axle)

2шт.

G1194

SPARE PART BUMPER - double (Use G12540M or G12541M)

1шт.

G12158M

WEIGHT - front (includes 2- 3/4" x 4" N.C. hex hd bolt w/lockwasher) Mchy. Item

1шт.

G12159M

WEIGHT - front end, extra set (includes 2-5/8" x 7" Carr. bolt w/hex nut and lockwasher) Mchy. It

1шт.

G12163M

SPARE PART BUMPER - single bar (includes 2 - 3/4" x 2-1/2" N.C. hex hd. bolt) Mchy Item

1шт.

G12540M

BUMPER - double bar (Gen Purpose w/front drawbar) Mchy. Item

1шт.

G12541M

BUMPER - double bar (Utility w/front drawbar) Mchy. Item

1шт.

G16577

DRAWBAR - front (Utility)

1шт.

3/4" x 2-1/4" N.C. hex hd. bolt w/hex nut and lockwasher

2шт.

G16578

BRACE - double front bumper (Gen Purpose)

1шт.

G16579

DRAWBAR - front (Gen Purpose)

1шт.

1/2" x 2" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

G16839

BRACE - double bar bumper (Utility)

1шт.

5/8" x 2" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

G16840

BRACE - double front drawbar (Gen. Purpose)

1шт.

3/4" x 2-1/4" carr. bolt w/hex nut and lockwasher

1шт.

3/4" x 2-1/2" N.C. hex hd. bolt w/hex nut and lockwasher

1шт.

Выбрано товаров: 19
