(132) - UPHOLSTERED SEAT - TRACTOR #6167835 AND AFTER

Запчасти Case IH 630 (132) - UPHOLSTERED SEAT - TRACTOR #6167835 AND AFTER (09) - CHASSIS

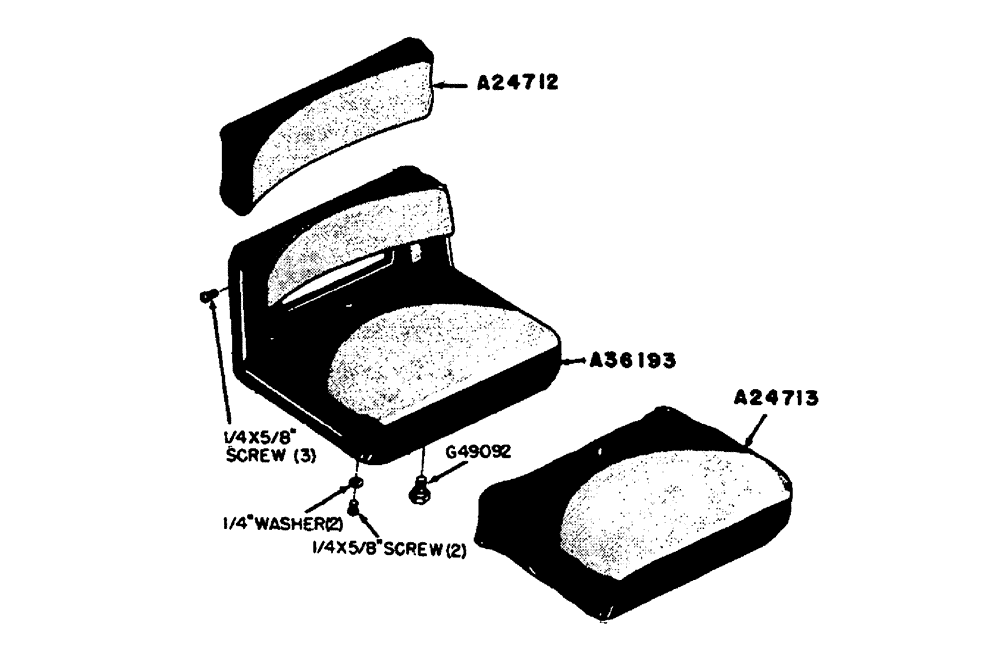

Схема запчастей Case IH 630 - (132) - UPHOLSTERED SEAT - TRACTOR #6167835 AND AFTER (09) - CHASSIS
a24713
g49092
a36193
a24712
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A24712

BACKREST

CUSHION

1шт.

1/4" x 5/8" rd. hd. mach. screw (Phillips recessed)

3шт.

A24713

CUSHION

seat

1шт.

1/4" x 5/8" rd. hd. mach. screw (Phillips recessed)

2шт.

1/4" plain washer

2шт.

A36193

SEAT ASSY.

complete

1шт.

G49092

SPARE PART shoulder, seat mounting

1шт.

A23697

COVER

seat (Not shown)

1шт.

Выбрано товаров: 8
