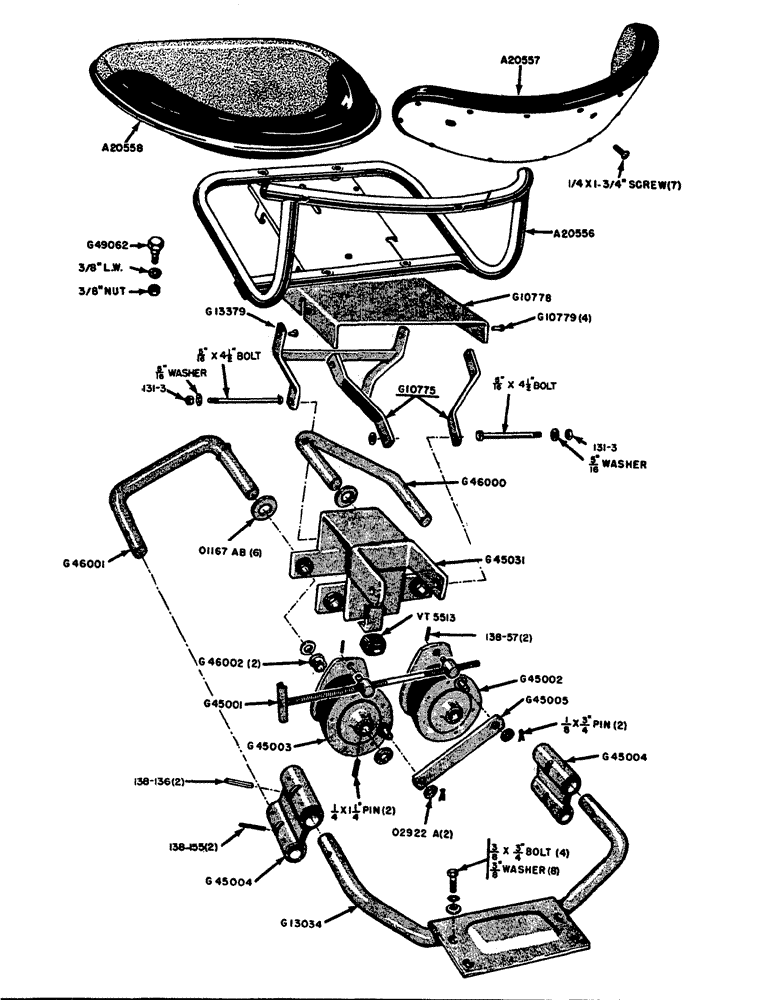

Запчасти Case IH 630 (131) - DELUXE SEAT AND SUPPORT (09) - CHASSIS

A20458

SEAT

- deluxe, complete (includes P/N's A20556, A20557, and A20558) (Before Tractor #6167835)

1шт.

A20556

FRAME and GUIDE

1шт.

Part of De luxe Seat, P/N A20458

1шт.

1/4" x 1-3/8" Philips hd. Mach. screw (zinc plated)

7шт.

A20557

BACKREST

REST- back

1шт.

Part of De luxe Seat, P/N A20458

1шт.

A20558

CUSHION - seat

1шт.

Part of De luxe Seat, P/N A20458

1шт.

A23584

COVER - seat (Before Tractor #6167835)

1шт.

G10775

ARM

- rear pivot, mounting channel

2шт.

5/16" x 4-1/2" N.F. hex hd. bolt w/plain washer

1шт.

G10778

CHANNEL

- seat mounting

1шт.

G10779

RIVET

- pivot arm, seat mounting channel

4шт.

G13034

SUPPORT - seat suspension assembly

1шт.

3/8" x 3/4" N.C. hex hd. bolt w/lockwasher

4шт.

G13379

ARM - front pivot, mounting channel

1шт.

5/16" x 4-1/2" N.F. hex hd. bolt w/plain washer

1шт.

G45001

STUD

- adjusting, seat suspension

1шт.

G45002

SPRING SEAT

RUBBER ASSEMBLY, R.H.

1шт.

1/4" x 1-1/4" groove pin - Type A

1шт.

G45003

SPRING SEAT

RUBBER ASSEMBLY, L.H.

1шт.

1/4" x 1-1/4" groove pin - Type A

1шт.

G45004

LEVER

- short suspension

2шт.

G45005

LINK - stabilizing

1шт.

1/8" x 3/4" cotter pin (132-46)

2шт.

G45031

BRACKET - support assembly

1шт.

A36193

SEAT ASSY.

SEAT - upholstered (Tractor #6167835 and after) See below

1шт.

G46000

SHAFT - spring, R.H.

1шт.

G46001

SHAFT - spring, L.H.

1шт.

G46002

FLANGED BEARING

BEARING - flange

2шт.

G49062

BOLT - shoulder, seat mounting

1шт.

3/8" N F hex nut and I.T. Shakeproof lockwasher

1шт.

02922A

WASHER - stabilizing link (1" O.D. x 17/32" I.D. #14 ga.)

4шт.

01167AB

WASHER - spring shafts (1-1/4" O.D. x 49) 64" I.D. #14 ga. )

6шт.

VT5513

X

BUMPER - rubber

1шт.

131-3

LOCK NUT,5/16"-24, GB

NUT - lock, pivot bolt (5/16" SI)

2шт.

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adjusted stud 1/8" x 3/4", Slotted

2шт.

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Spring shaft 1/4" x 1 1/4", Slotted

2шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , for G13034 support 5/16" x 1 1/4", Slotted

2шт.
