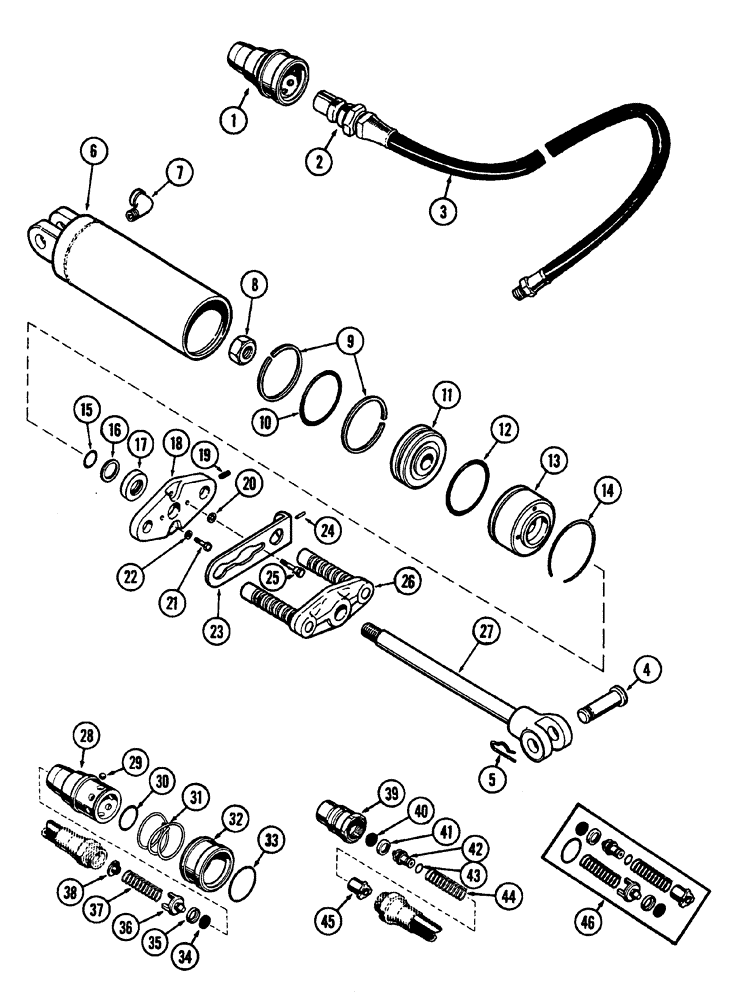

Запчасти Case IH 630 (127) - PORTABLE HYDRAULIC CYLINDER, HOSES & COUPLINGS, PARTS FOR G30463 FEMALE COUPLING & 4025AA MALE COUPL (08) - HYDRAULICS

1

G30463

COUPLING - female, hydraulic break-away (See below)

2шт.

2

4025AA

X

COUPLING - male, hydraulic break-away (See below)

2шт.

3

A35089

HOSE ASSY.

HOSE -, Serial Range: coupling-cylinder

2шт.

4

08361AB

PIN - coupling, cylinder

2шт.

5

VC1419

X

PIN - hairpin cotter, coupling pin

2шт.

B3785AA

CYLINDER - portable, 3-1/4" x 8" Use A23557 when stock is exhausted

1шт.

A23557

CYLINDER - portable, 3-1/4" x 8"

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER and HEAD Assembly, (Use A23557)

1шт.

4246AA

CYLINDER and HEAD ASSEMBLY, (B3785AA only)

1шт.

7

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - pipe, 1/2" 90° (both)

2шт.

8

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, 7/8" N.F. hex (both)

1шт.

9

A23562

OIL SEAL

RING - back-up, piston (A23557 only)

2шт.

10

08342AB

"O" RING - piston (both)

1шт.

11

A23560

PISTON - cylinder (A23557)

1шт.

6243A

PISTON - cylinder (B3785AA)

1шт.

12

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O"- RING - inner, cylinder head (A23557)

1шт.

08347AB

"O"- RING - inner, cylinder head (B3785AA)

1шт.

13

A23561

HEAD - cylinder, (A23557)

1шт.

6187A

HEAD - cylinder (B3785AA)

1шт.

14

09303AB

RING - snap, cylinder head (both)

1шт.

15

08346AB

"O"- RING - piston rod (both)

1шт.

16

A23553

RING

- back-up, piston rod (A23557 only)

1шт.

08345AB

GASKET - piston rod (B3785AA only)

1шт.

17

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL oil - piston rod (A23557)

1шт.

03869AB

SEAL - oil, piston rod (B3785AA)

1шт.

18

08354AB

GUIDE - limit stop pin (both)

1шт.

19

08602AB

SPRING - limit stop latch (both)

1шт.

20

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex hd.

2шт.

22

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

2шт.

23

3859AA

X

LATCH - limit stop (includes roll pin) (both)

1шт.

24

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, (Both) 1/4" x 5/8", Slotted

1шт.

25

08601AB

SCREW - stop latch (both)

2шт.

26

3756AA

STOP ASSEMBLY - limit (both)

1шт.

27

4417AA

ROD - piston (both)

1шт.

28

08371AB

BODY - socket, parts for G30463 female coupling

1шт.

29

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

BALL - locking, parts for G30463 female coupling

8шт.

30

08377AB

"O" RING - socket body, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

31

08379AB

SPRING - sleeve, ball retaining, parts for G30463 female coupling

1шт.

32

08378AB

SLEEVE - ball retaining, parts for G30463 female coupling

1шт.

33

08380AB

RING - snap, socket, parts for G30463 female coupling

1шт.

34

08372AB

SEAL - piston, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

35

A11325

X

RETAINER - seal, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

36

6119A

X

PISTON, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

37

G48506

SPRING

- piston, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

38

G16517

SPACER

- flow control, parts for G30463 female coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

39

08381AB

BODY, parts for 4025AA male coupling

1шт.

40

08372AB

SEAL - piston, parts for 4025AA male coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

41

A11325

X

RETAINER - seal, parts for 4025AA male coupling

1шт.

42

08859AB

PISTON, parts for 4025AA male coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

43

08386AB

"O" RING - piston sleeve, parts for 4025AA male coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

44

08375AB

SPRING - piston, parts for 4025AA male coupling

1шт.

Part of Service Kit, P/N G30463

1шт.

45

51200858

SLEEVE

- piston, parts for 4025AA male coupling

1шт.

46

G30455

KIT - service, G30463 and 4025AA coupling (Includes: Ref. # 30, 34, 35, 36, 37, 38, 40, 42, 43, 44

1шт.
