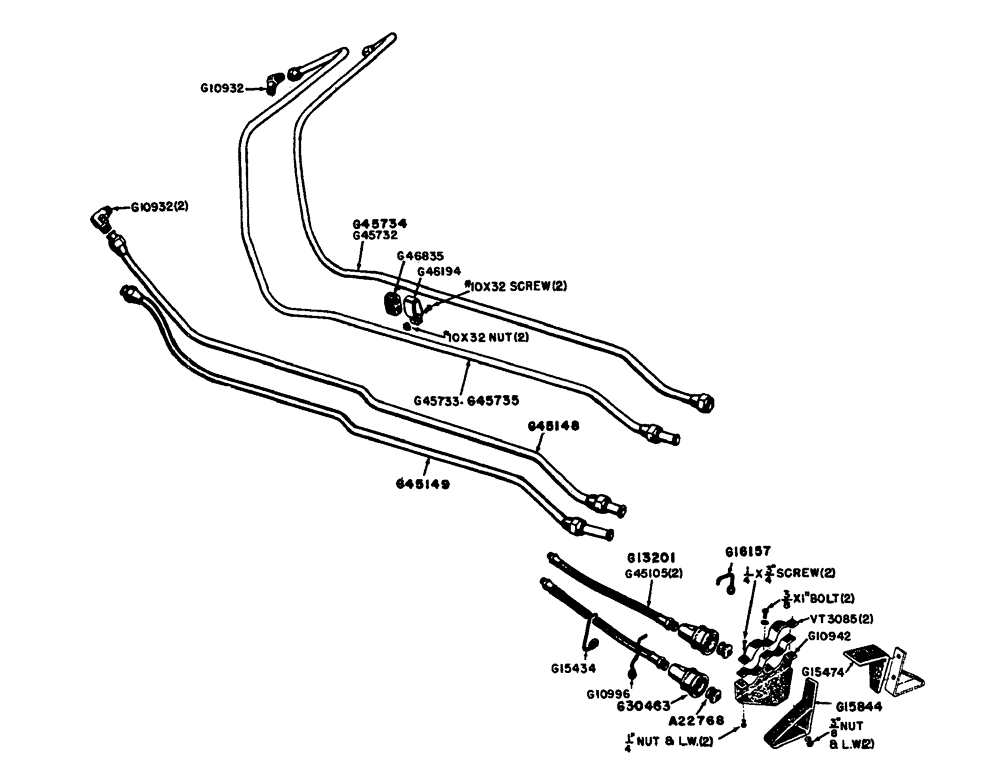

Запчасти Case IH 630 (126) - REMOTE CONTROL HYDRAULIC TUBES, HOSES AND COUPLINGS (08) - HYDRAULICS

A22768

PLUG

- dust, coupling socket

2шт.

G10932

ELBOW

- tube to interlock (3/4" N.F. x 3/8" male P.T.)

2шт.

G10942

HOLDER - hose clamp

1шт.

3/8" x 1" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

G10996

SUPPORT - tube to brake housing

1шт.

G13201

HOSE - hydraulic (55-1/4" long) (630, 631, 640, 641 w/o Eagle Hitch)

2шт.

3/8" street ell (221-413)

2шт.

G15434

SUPPORT - tube to transmission stud

1шт.

G15474

BRACKET - adapter, clamp holder (w/hoses on R.H. side)

1шт.

G15844

BRACKET - clamp holder

1шт.

3/8" x 3/4" N.C. hex hd. bolt w/lockwasher

2шт.

G16157

SUPPORT - hose or tube (on R.H. side only)

1шт.

G30463

COUPLING - socket, break-away

2шт.

G45105

X

HOSE - tube to coupling (18" long)

2шт.

G45148

TUBE - upper (630, 631, 640, 641 w/Eagle Hitch)

1шт.

G45149

TUBE - lower (630, 631, 640, 641 w/Eagle Hitch) 0.5" OD x 38.062" L

1шт.

G45732

TUBE - upper (630C, 631C, 640C, 641C w/Eagle Hitch) 0.5" OD x 31.375" L

1шт.

G45733

TUBE - lower (630C, 631C, 640C, 641C w/Eagle Hitch) 0.5" OD x 32" L

1шт.

G45734

TUBE - upper (63OC, 631C, 640C, 641C w/o Eagle Hitch)

1шт.

G45735

TUBE - lower (630C, 631C, 640C, 641C w/o Eagle Hitch)

1шт.

G46194

CLAMP

- tube

2шт.

#10-32 x 3/4" rd. hd. mach. screw w/hex nut and lockwasher

2шт.

G46835

GROMMET

- rubber, tube clamp

2шт.

VT3085

CLAMP - hose 1/4" x 3/4" rd. hd. mach. screw w/hex nut and lockwasher

2шт.
