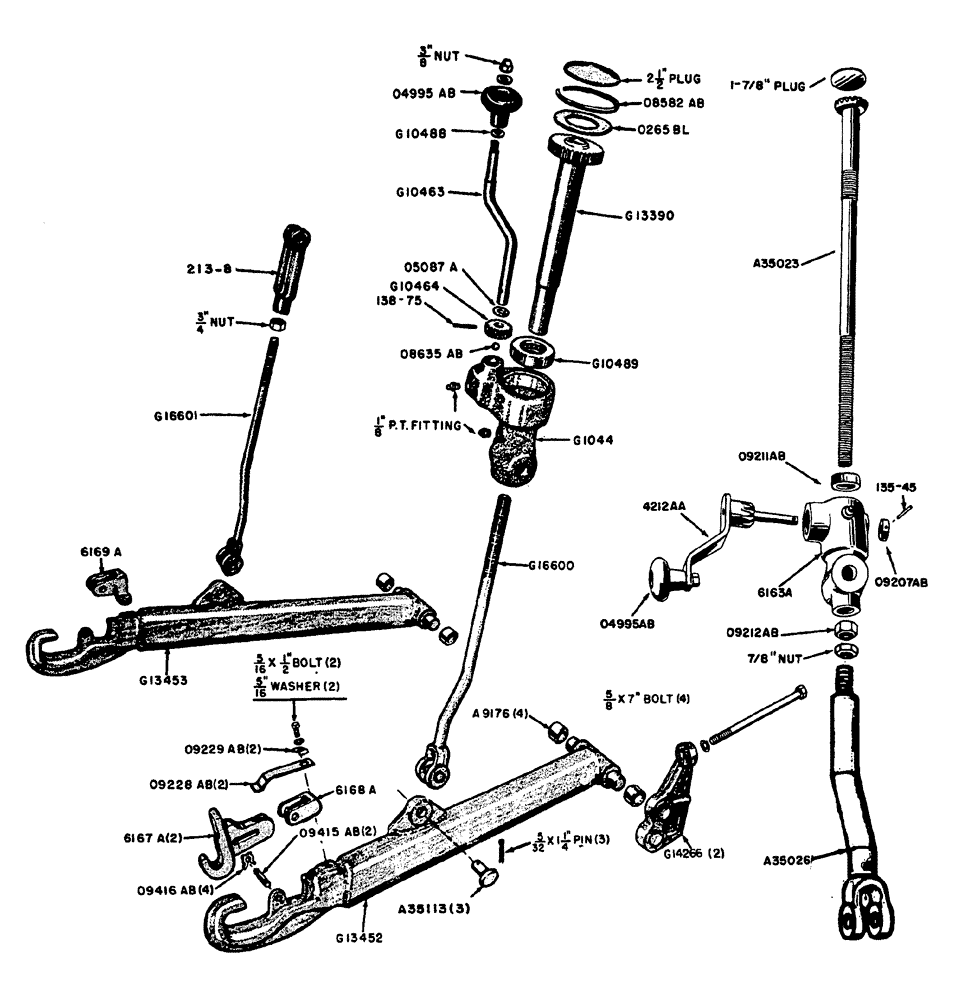

Запчасти Case IH 630 (124) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS, PARTS FOR ADJUSTING SCREW - TRACTOR #8191147 AND AFTER (08) - HYDRAULICS

A9176

BUSHING

- draft arm pivot (2 in. axle housings and 2 in. mounting brackets)

8шт.

G1044

HOUSING - adjusting screw (Before tractor #8191147)

1шт.

1/8" str. fitting (Lincoln #5000) (219-1)

1шт.

1/8" str. safety vent fitting (Lincoln #5099) (219-30)

1шт.

2-1/2" Welch Plug

1шт.

G10463

CRANK - adjusting screw (Before tractor #8191147)

1шт.

5/8" - 16 acorn nut, low crown

1шт.

G10464

GEAR - adjusting screw crank (Before tractor #8191147)

1шт.

G1D488

WASHER - thrust, adjusting crank (Before tractor #8191147)

1шт.

G10489

THRUST BEARING

BEARING - thrust (Nice #5136) (Before tractor #8191147)

1шт.

G13390

TUBE

GEAR - adjusting screw, w/tube (Before tractor #8191147)

1шт.

G13452

ARM - R.H. draft

1шт.

G13453

ARM - L.H. draft

1шт.

G14266

BRACKET - draft arm mounting, includes 2 - A9176 bushings

2шт.

5/8" x 7" N.C. hex hd. bolt w/lockwasher

4шт.

G16600

LINK

- lift, adjusting screw, R.H. (Before tractor #8191147)

1шт.

G16601

LINK - lift, L.H.

1шт.

3/4" N.F. hex jam nut

1шт.

G17022

BRACKET, (Use G14266)

1шт.

G17133

BRACKET, (Use G14266)

1шт.

6167A

X

LATCH - Eagle Hitch

2шт.

6168A

X

LOCK - Eagle Hitch latch, R.H.

1шт.

6169A

X

LOCK - Eagle Hitch latch, L.H.

1шт.

05087A

WASHER - thrust, crank gear

1шт.

04995AB

KNOB - hand spinner, adjusting crank

1шт.

08582AB

RING - snap, upper housing, adjusting screw (Before tractor #8191147)

1шт.

08635AB

BALL - crank bearing (Before tractor #8191147)

1шт.

09228AB

SPRING - latch, Eagle Hitch

2шт.

09229AB

RETAINER - latch spring

2шт.

5/16" x 1/2" N.C. hex hd. bolt w/lockwasher

2шт.

09415AB

PIN - latch, draft arm

2шт.

09416AB

RING - snap, retainer, latch pin

4шт.

A35113

PIN

- yoke, lift link

3шт.

5/32" x 1-1/4" cotter pin (132-71)

3шт.

213-8

CLEVIS,3/4"-16

YOKE- lift link

1шт.

0265BL

WASHER - adjusting screw gear (Before tractor #8191147)

1шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear 5/32" x 7/8", Slotted

1шт.

A35023

SCREW - leveling (includes gear), parts for adjusting screw, tractor #8191147 and after

1шт.

7/8" N.F. hex jam nut, parts for adjusting screw, tractor #8191147 and after

1шт.

A35026

YOKE - leveling screw, parts for adjusting screw, tractor #8191147 and after

1шт.

6163A

X

CASE - gear, leveling screw, parts for adjusting screw, tractor #8191147 and after

1шт.

1/8" str. fitting (Lincoln #5000) (219-1), parts for adjusting screw, tractor #8191147 and after

1шт.

1-7/8" Welch Plug, parts for adjusting screw, tractor #8191147 and after

1шт.

4212AA

X

PINION - leveling gear (includes crank), parts for adjusting screw, tractor #8191147 and after

1шт.

04995AB

KNOB - hand crank, parts for adjusting screw, tractor #8191147 and after

1шт.

09207AB

COLLAR - pinion shaft, parts for adjusting screw, tractor #8191147 and after

1шт.

09208AB

BOLT - knob, hand crank, parts for adjusting screw, tractor #8191147 and after

1шт.

3/8" N.F. hex nut and lockwasher, parts for adjusting screw, tractor #8191147 and after

1шт.

09211AB

BEARING - leveling screw (Nice #4962), parts for adjusting screw, tractor #8191147 and after

1шт.

09212AB

NUT - brass, leveling screw, parts for adjusting screw, tractor #8191147 and after

1шт.

135-45

PIN - pinion shaft collar (5/32" x 1" Type I), parts for adjusting screw, tractor #8191147 and after

1шт.
