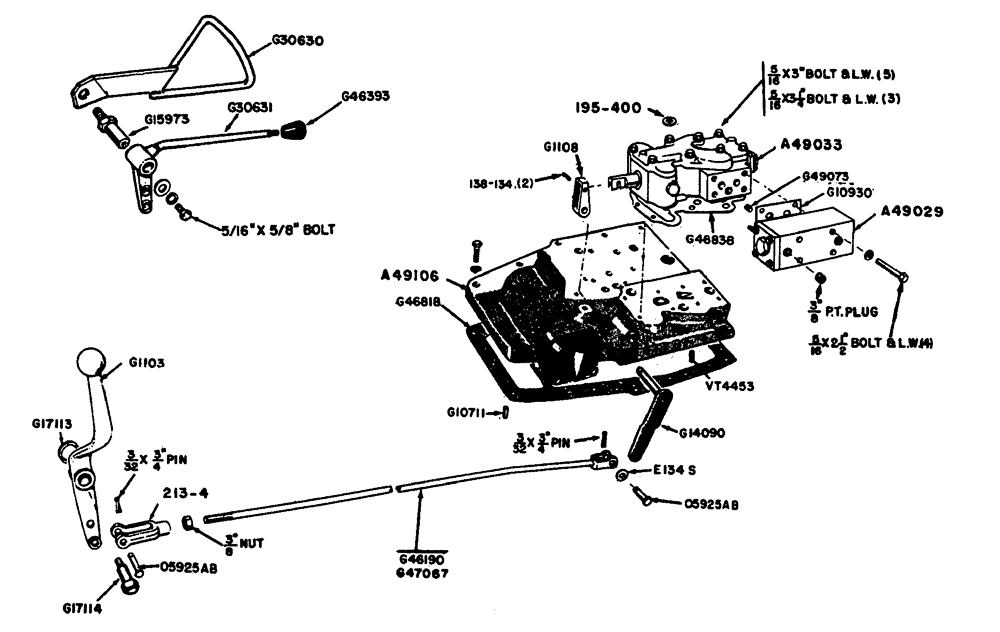

Запчасти Case IH 630 (117) - HYDRAULIC CONTROLS AND LEVER FOR EAGLE HITCH OR REMOTE CONTROL WITH CASE-O-MATIC DRIVE (08) - HYDRAULICS

G1103

LEVER

- hand (Before Tractor #8191147)

1шт.

G1108

ARM ASSY.

BELLCRANK - control valve

1шт.

A49106

HOUSING - adapter, hydraulic pump and control

1шт.

G10711

PIN

- dowel, rear, adapter housing

1шт.

G10930

GASKET

- interlock to control valve

1шт.

A49029

INTERLOCK - hydraulic/(See Fig. 113)

1шт.

5/16" x 2-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

G14090

CRANK - control rod (Before Tractor #8191147)

1шт.

A49033

VALVE - hydraulic control (See Fig. 113)

1шт.

5/16" x 3" N.C. hex hd. bolt w/lockwasher

5шт.

5/16" x 3-1/4" N.C. hex hd. bolt w/lockwasher

3шт.

G15973

BOLT- pivot, hand lever (1/2" x 2-3/4") (Tractor #8191147 and after)

1шт.

5/16" x 5/8" N.C. hex hd. bolt w/lockwasher

1шт.

G17113

WASHER - spacer, hand lever (Before tractor #8191147)

1шт.

G17114

BOLT - pivot, hand lever (1/2" x 2-3/4") (Before tractor #8191147)

1шт.

G30630

REST - steady, hand lever (Tractor #8191147 and after)

1шт.

G30631

LEVER ASSY.

LEVER - hand (Tractor #8191147 and after)

1шт.

G46190

ROD - control (w/Eagle Hitch)

1шт.

G46393

X

KNOB - hand lever (Tractor #8191147 and after)

1шт.

G46818

GASKET

- adapter housing to torque tube

1шт.

G46838

GASKET

- control valve

1шт.

195-400

WASHER

- sealing, valve cover bolt

1шт.

G47067

ROD - control (w/remote control)

1шт.

G49073

PLUG - drilled, interlock (w/Eagle Hitch only)

1шт.

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod

1шт.

3/8" N.F. hex nut

1шт.

O5925AB

X

PIN - yoke

2шт.

3/32" x 3/4" cotter pin (132-26)

2шт.

VT4453

X

PIN - dowel, front, adapter housing (3/8" x 3/4")

1шт.

E134S

WASHER - spacer, O5925AB pin

1шт.

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Bellcrank 1/4" x 1", Slotted

2шт.
