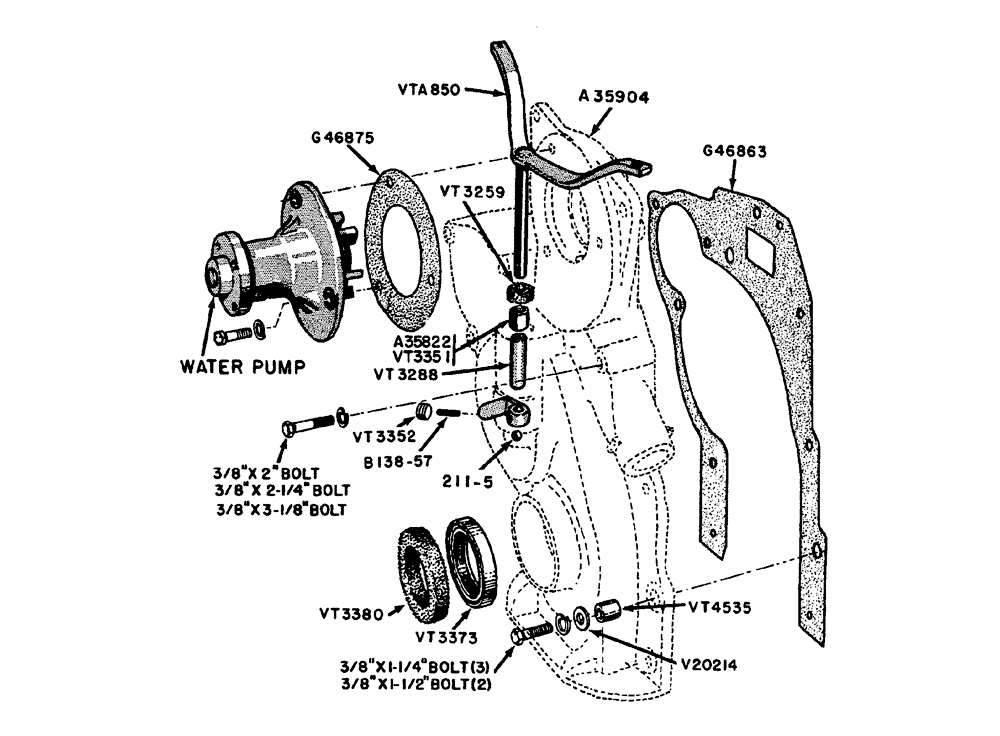

Запчасти Case IH 630 (003) - TIMING GEAR COVER (02) - ENGINE

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - governor shaft (Torr. #B68) Eng. #2030988 and after

2шт.

211-5

BALL,3/16" Dia

- thrust governor arm (3/16"" dia.)

1шт.

A35904

COVER - timing gear (includes 2-A35822 brg. and VT3380 dust seal)

1шт.

3/8" x 1-1/4" N.C. hex hd. bolt w/lockwasher

3шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

3/8" x 2" N.C. hex hd. bolt w/lockwasher

1шт.

3/8" x 2-1/4" N.C. hex hd. bolt w/lockwasher

1шт.

3/8" x 3-1/8" N.C. hex hd. bolt w/lockwasher

3шт.

G46863

GASKET

- gear, Serial Range: lever-block

1шт.

G46875

GASKET

- water pump

1шт.

VT3259

X

SEAL dust - felt, governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610) Before Eng. #2030988

1шт.

VT3352

X

PLUG - pipe, gear cover (1/8" slotted hd.)

1шт.

VT3373

SEAL - oil - front, crankshaft

1шт.

VT3380

DUST SEAL - felt, fan drive pulley

1шт.

VT4535

X

RING - dowel, timing gear, Serial Range: cover-block

2шт.

VTA850

X

ASSEMBLY lever and shaft - governor

1шт.

V20214

WASHER

- cover bolt (3/4" O.D. x 13/32" I.D. #16 ga.)

2шт.

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , VTA850 lever and shaft 1/8" x 3/4", Slotted

1шт.
