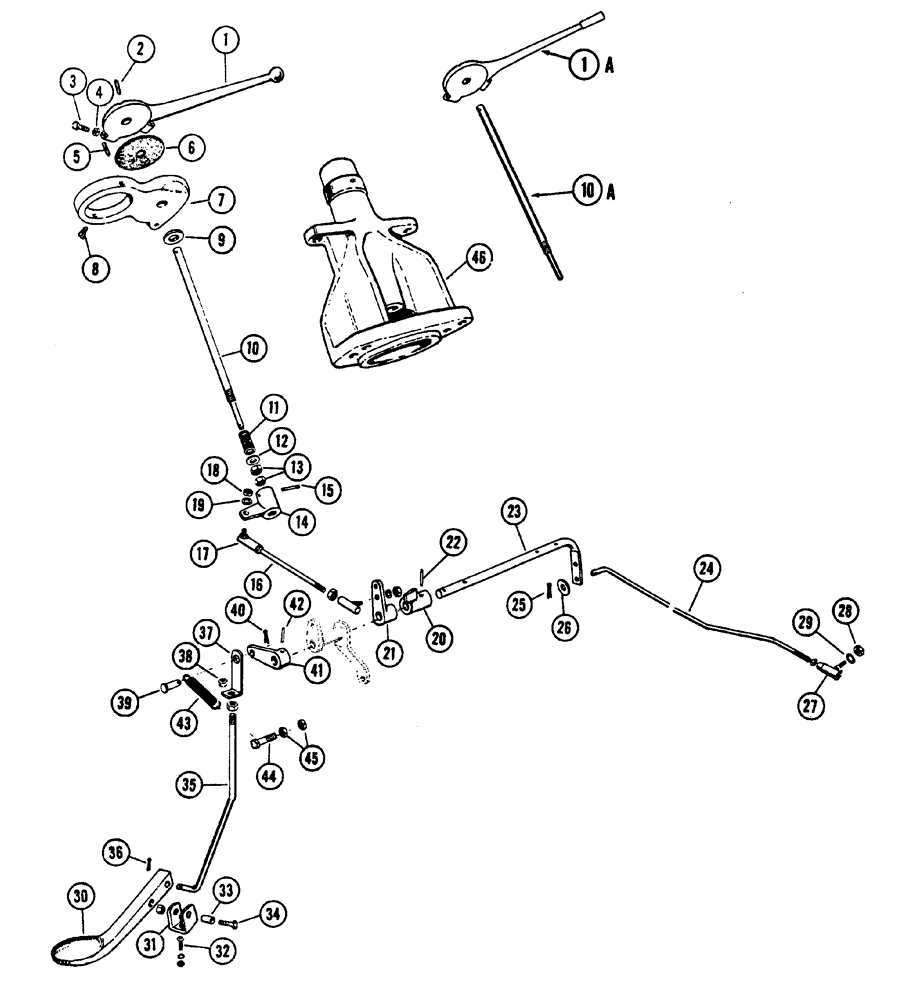

Запчасти Case IH 630 (043) - THROTTLE CONTROL LINKAGE - TRACTOR #8218458 AND AFTER (03) - FUEL SYSTEM

1

A35632

X

LEVER - hand (Can use 1A and 10A)

1шт.

1a

A3 6513

LEVER - hand (Use with A36512 shaft ref. 10A)

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Stop Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, , Lever stop 1/4" x 1 1/8", Slotted

1шт.

6

A11969

GASKET

DISC - friction

1шт.

7

A35706

SUPPORT - hand lever and disc

1шт.

8

09788AB

SCREW - set, support

2шт.

9

01509B

WASHER - spacer

1шт.

10

A35643

SHAFT - hand lever, (12-1/4" long) Use with A35632 ref. 1

1шт.

10a

A3 6512

SHAFT - hand lever (12-1/16" long) Use with A36513 ref. 1A

1шт.

11

A22618

SPRING

- tension

1шт.

12

195-33

WASHER,1/2"

- plain 1/2"

1шт.

13

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

2шт.

14

A35644

LEVER - lower

1шт.

15

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

16

A35642

ROD

- intermediate

1шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

2шт.

18

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

A35638

LEVER

- cross shaft

1шт.

21

A35639

LEVER

- override, foot throttle

1шт.

22

133-77

ROLL PIN - 5/32" x 1"

2шт.

23

A35636

SHAFT

- cross

1шт.

24

A35635

ROD - cross, Serial Range: shaft-pump

1шт.

25

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

1шт.

27

A10329

BALL JOINT,1/4" - 28 x 1"

-, Serial Range: rod-pump

1шт.

28

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

G15692

PEDAL

- foot throttle

1шт.

31

G15694

BRACKET

- pivot, foot pedal

1шт.

32

77-512

SCREW

- truss hd., 5/16" x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

2шт.

33

G49618

BUSHING

- pedal pivot

1шт.

34

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex hd.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

35

A35641

ROD

- foot throttle

1шт.

36

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

37

G16898

LINK - foot throttle rod

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

2шт.

39

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Link to lever 3/8" x 1.060"

1шт.

40

132-26

COTTER PIN

PIN - cotter, 3/32" x 3/4"

1шт.

41

A35640

LEVER - foot throttle

1шт.

42

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

43

O1294FS

X

SPRING - return

1шт.

44

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex hd.

1шт.

45

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

1шт.

46

A36525

COLUMN - steering (includes bushings)

1шт.
