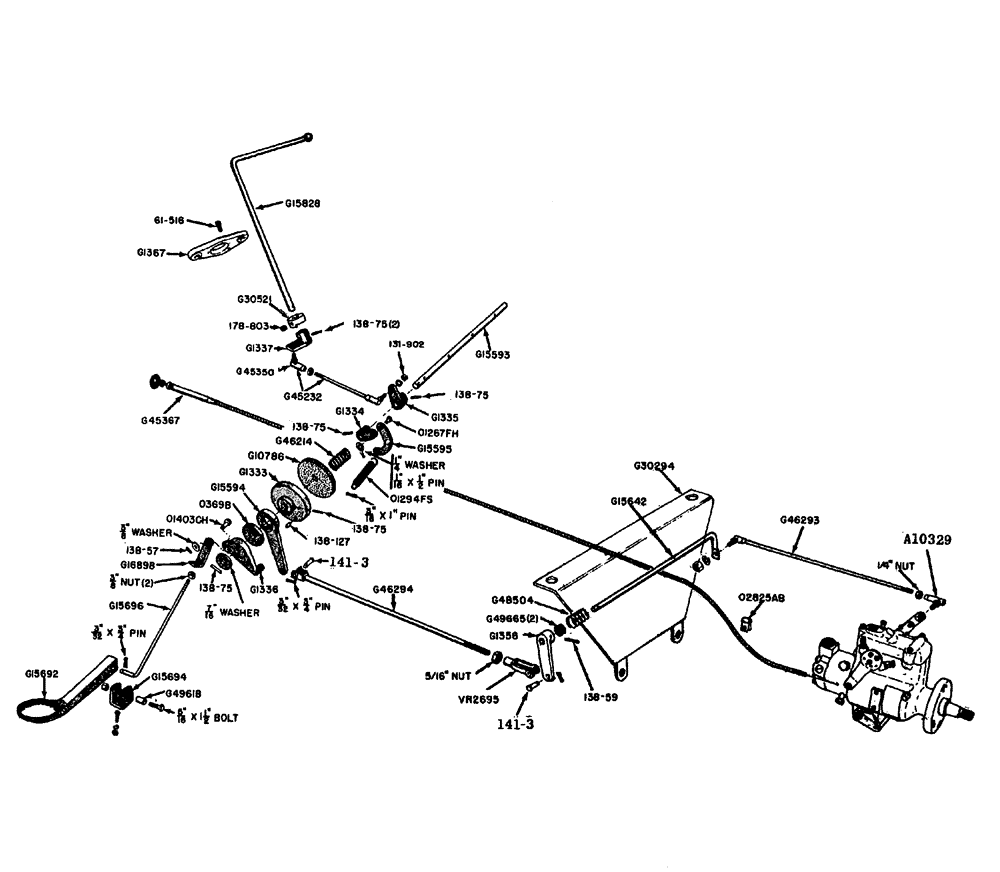

Запчасти Case IH 630 (042) - THROTTLE CONTROL LINKAGE BEFORE TRACTOR #8218458, FOOT THROTTLE (03) - FUEL SYSTEM

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

3/32" x 3/4" cotter pin (132-26)

1шт.

G1333

PLATE - friction

1шт.

G1334

LEVER - spring balance

1шт.

G1335

LEVER - throttle, cross shaft

1шт.

G1336

LEVER - actuating, foot throttle

1шт.

G1337

LEVER

- lower, throttle handle

1шт.

G1356

LEVER - front cross shaft

1шт.

G1367

PLATE - support, throttle handle (Gen. Purpose w/power steering only)

1шт.

G4520

COLLAR, (Use G30521)

1шт.

G10786

DISC

- friction

1шт.

A10329

BALL JOINT,1/4" - 28 x 1"

- throttle rod to injection pump

1шт.

G15593

SHAFT - cross, throttle control

1шт.

7/16" plain washer

1шт.

G15594

LEVER - main throttle

1шт.

G15595

LEVER - over-center, cross shaft

1шт.

G15642

SHAFT - cross, front

1шт.

G15828

HANDLE

- throttle control

1шт.

G30521

COLLAR - set, throttle handle (includes (2) 178-803 screws)

1шт.

G30294

SUPPORT - front, fuel tank (w/cross shaft brackets)

1шт.

G45232

BALL

JOINT - double, throttle handle to cross shaft lever (includes G45350 ball joint)

1шт.

G45367

WIRE - fuel shut-off

1шт.

G45350

BALL JOINT

- (part of G45232)

1шт.

G46214

SPRING

- compression, friction disc

1шт.

G46293

ROD - cross shaft to injection pump (w/ball joint)

1шт.

1/4" N.F. hex nut

1шт.

G46294

ROD and YOKE - rear cross shaft to front cross shaft

1шт.

5/16" N.F. hex jam nut

1шт.

G48504

SPRING

- torsion, front cross shaft

1шт.

G49665

BUSHING - nylon, cross shaft

2шт.

02825AB

CLIP - shut-off wire

1шт.

0369B

WASHER - spacer, actuating lever (1-11/16" O.D. x 57/64" I.D. #10 ga.)

1шт.

01267FH

PIN - drilled, over center lever to spring lever

1шт.

1/4" plain washer

1шт.

1/16" x 1/2" cotter pin (132-5)

1шт.

01294FS

SPRING - over center

1шт.

3/16" x 1" cotter pin (132-91)

1шт.

VR2695

X

YOKE - G46294 rod

1шт.

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - G1367 support (5/16" x 1" socket hd.)

1шт.

131-902

NUT,1/4"-28

- lock, G45232 ball joint (1/4" N.F. Two-Way)

2шт.

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , G1356 lever 1/8" x 7/8", Slotted

1шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

6шт.

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , G1333 Friction plate 1/4" x 1/2", Slotted

1шт.

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - throttle handle collar (1/4" x 1/2" socket hd. - Nylok)

2шт.

G15692

PEDAL

- foot throttle

1шт.

5/16" x 1-1/2" N.F. hex hd. bolt w/hex nut, lockwasher and plain washer, foot throttle

1шт.

G15694

BRACKET

- pivot, foot pedal, throttle

1шт.

5/16" x 3/4" truss hd. mach screw w/hex nut and lockwasher, foot throttle

2шт.

G15696

ROD - connection, foot throttle

1шт.

3/8" N.F. hex nut, foot throttle

2шт.

3/32" x 3/4" cotter pin (132-26), foot throttle

1шт.

G16898

LINK - connecting, yoke to lever, foot throttle

1шт.

G49618

BUSHING

- pivot, foot pedal, throttle

1шт.

01403CH

RIVET - drilled, G16898 link to G1336 lever (3/8" x 3/4"), foot throttle

1шт.

3/8" plain washer, foot throttle

1шт.

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Drilled rivet, foot throttle 1/8" x 3/4", Slotted

1шт.
