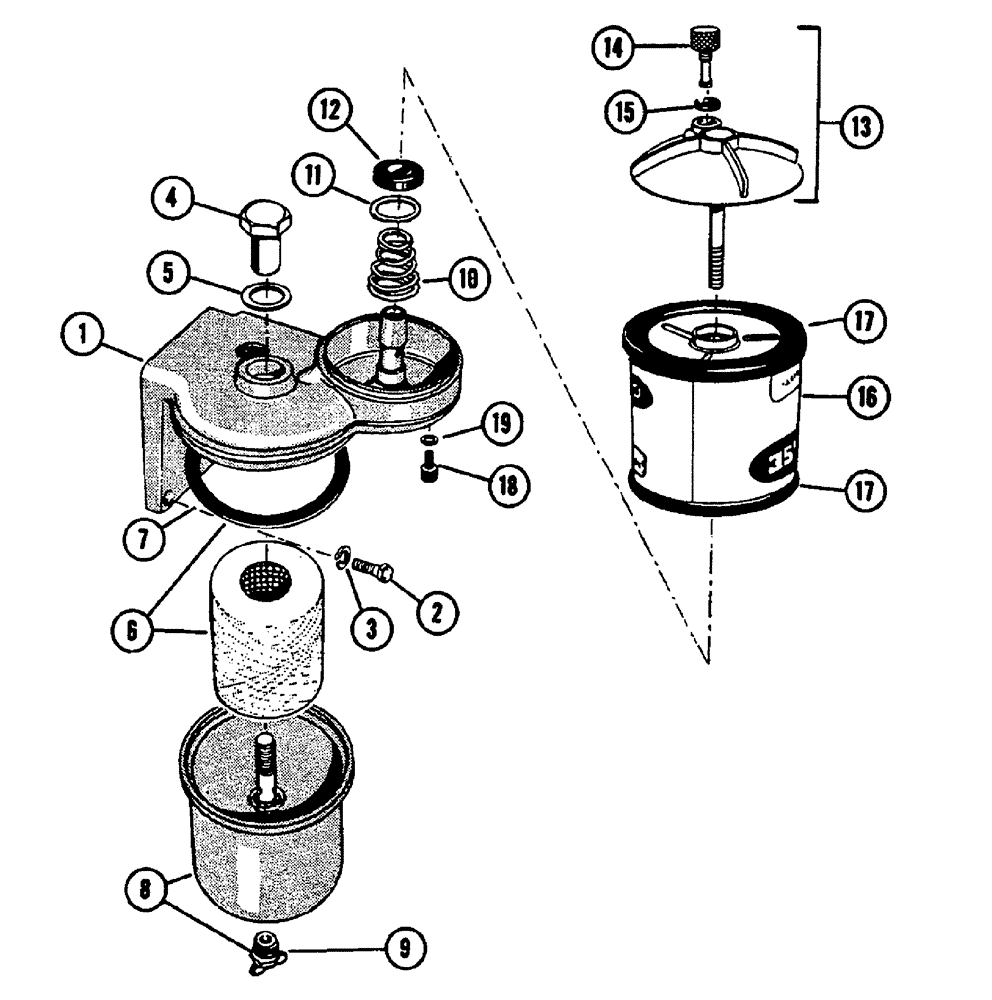

Запчасти Case IH 630 (041) - A35735 FUEL FILTERS ASSY. (03) - FUEL SYSTEM

1

A35664

HEAD

- fuel filter mounting

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

3шт.

4

A21131

NUT

- primary filter, Serial Range: body-head

1шт.

5

010344AB

GASKET -, Serial Range: nut-head

1шт.

6

A35863

FILTER, ELEMENT

ELEMENT - primary filter (includes ref. 7)

1шт.

7

010345AB

GASKET - primary filter, Serial Range: body-head

1шт.

8

28085

BODY - primary filter (includes ref. 9)

1шт.

9

VT2784

X

DRAIN - cock primary filter

1шт.

10

A35669

SPRING

- final filter

1шт.

11

A35670

WASHER

- final filter

1шт.

12

A35671

GASKET

- rubber

1шт.

13

A35672

CAP

- final filter (includes ref. 14 and 15)

1шт.

14

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder

1шт.

15

A35972

BUSHING

GASKET - bleeder valve

1шт.

16

A35668

FILTER

- final (includes ref. 17)

1шт.

17

G46895

GASKET

- final filter

2шт.

18

G49080

PLUG

- drain, final filter

1шт.

19

G46886

O-RING

GASKET - drain plug, final filter

1шт.
