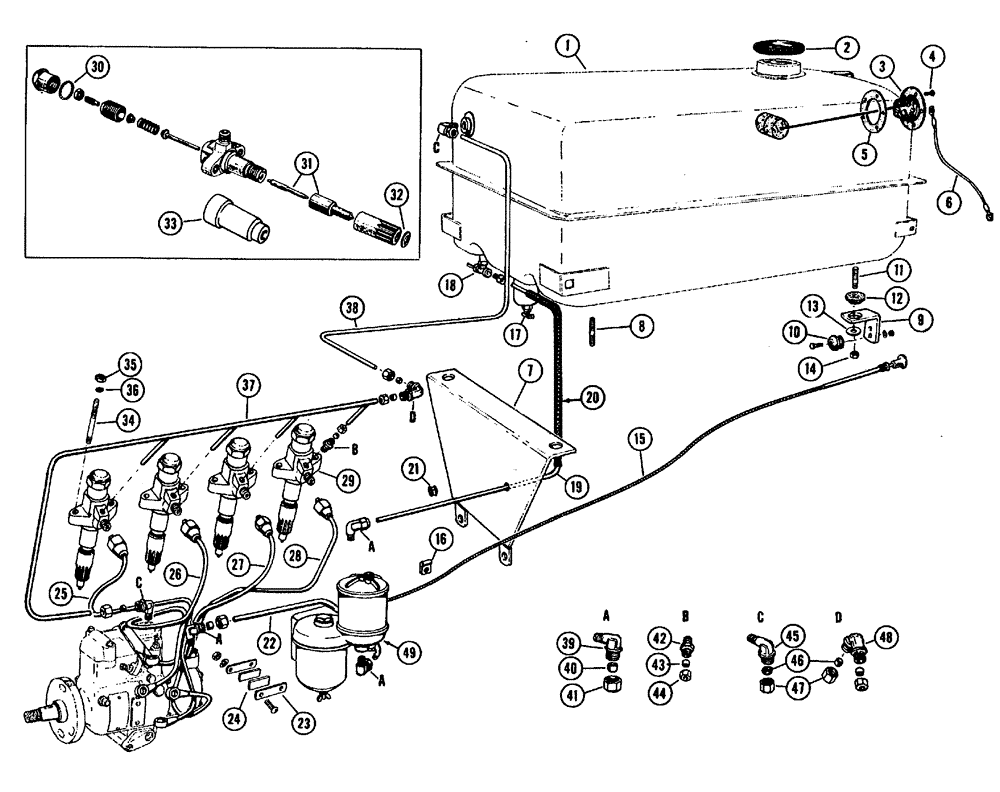

Запчасти Case IH 630 (039) - FUEL TANK AND INJECTION SYSTEM TRACTOR #820801 AND AFTER (03) - FUEL SYSTEM

1

A22449

FUEL TANK

TANK

1шт.

2

A33558

CAP

- fuel tank

1шт.

3

A23480

SENDER UNIT

SCREW - fuel gauge

1шт.

4

193-501

SCREW -, Serial Range: sender-tank

5шт.

5

A11822

GASKET

- sender

1шт.

6

A11783

ELECTRICAL WIRE

CABLE -, Serial Range: sender-gauge

1шт.

7

A35629

SUPPORT front, fuel tank

1шт.

8

A8373

STUD

- front, fuel tank (3/8" x 2-7/16")

2шт.

9

A36177

SUPPORT - rear fuel tank

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex hd.

2шт.

92-5

LOCK WASHER,5/16"

LOCKWASHER - std. 5/16"

2шт.

10

A7336

CUSHION

BUSHING rubber, rear support

2шт.

11

06328AB

STUD rear, fuel tank

1шт.

12

A7336

CUSHION

- rubber, fuel tank

3шт.

13

030577HT

WASHER fuel tank stud

3шт.

14

131-5

LOCK NUT,3/8"-16, GB

NUT LOCK - lock, fuel tank stud

3шт.

15

G45367

WIRE - fuel shut-off

1шт.

16

02825AB

CLIP - shut-off wire

1шт.

17

217-107

VALVE

DRAIN cock - fuel tank

1шт.

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain (Not shown) 0.25" ID x 15.00", SAE SC716 CS

1шт.

18

A7313

VALVE

- needle (incl. 40 and 41)

1шт.

19

A35630

TUBE

LINE - fuel, tank valve to primary filter

1шт.

20

07666AB

LOOM - fuel line

1шт.

21

G49665

BUSHING - fuel line

1шт.

22

A35710

LINE - fuel, final filter to pump (original equipment)

1шт.

A36566

TUBE

LINE - fuel, final filter (for use with a block heater)

1шт.

23

09970AB

CLAMP - injection tube

2шт.

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach. #10-24 x 1" rd. hd.

2шт.

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

24

09973AB

CUSHION - tube clamp

2шт.

25

A35058

TUBE

- injection pump to #1 injector

1шт.

26

A35059

TUBE

- injection pump to #2 injector

1шт.

27

A35060

TUBE

- injection pump to #3 injector

1шт.

28

A35061

TUBE

- injection pump to #4 injector

1шт.

29

A49056

NOZZLE CAP

INJECTOR - fuel (incl. Ref. 30, 31 & 32)

4шт.

30

G46885

GASKET

- injector cap

4шт.

31

A35085

NOZZLE CAP

NOZZLE - injector

4шт.

32

G49068

GASKET

- seat, fuel, Serial Range: injector-nozzle

4шт.

33

G11724

LINER

- injector to head (in head)

4шт.

34

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

36

92-6

LOCK WASHER,3/8"

std. 3/8"

8шт.

37

G45376

TUBE - manifold injector leak-off

1шт.

38

A35631

TUBE

LINE - leak-off manifold, Serial Range: tube-tank

1шт.

39

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- fuel link, 3/8" x 1/4" (incl. 40 & 41)

3шт.

40

222-104

SLEEVE,3/8" Tube

- tube, 3/8"

3шт.

41

222-114

NUT,5/8"-24

NUT - tube, 3/8"

3шт.

42

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off, Includes 43 & 44 7/16"-24 x 1/8" NPTF

4шт.

43

222-101

SLEEVE,3/16" Tube

- tube, 3/16"

4шт.

44

222-111

TUBE NUT,7/16" - 24

NUT - tube, 3/16"

4шт.

45

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- leak-off tube, 5/16" (incl. 46 & 47)

2шт.

46

222-103

SLEEVE,5/16" Tube

- tube, 5/16"

4шт.

47

222-113

TUBE NUT,9/16"-24

NUT - ELBOW - tube, 5/16"

4шт.

48

222-133

ELBOW,90 Degree, 9/16"-24

- manf. to return, 5/16" (incl. 46 & 47)

1шт.

49

A35735

FILTER

ASSEMBLY - complete (See Fig. 41)

1шт.
