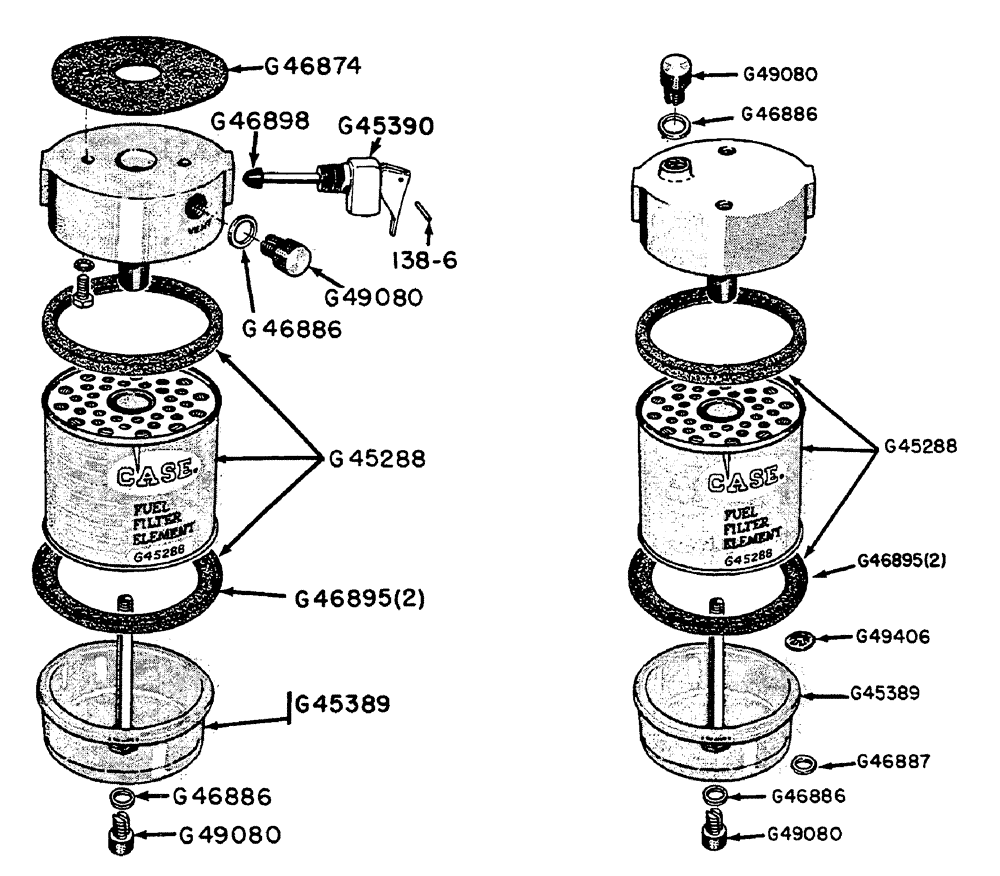

Запчасти Case IH 630 (037) - PARTS FOR G45254 AND G45316 FILTERS (03) - FUEL SYSTEM

G45288

X

ELEMENT - filter (includes (2) G46895 gaskets)

1шт.

G45389

BOWL

- sediment, glass (includes screw and seal)

1шт.

G45390

VALVE - shut-off, complete

1шт.

G46874

GASKET

- filter to tank (not part of G45254)

1шт.

G46886

O-RING

GASKET - air vent and drain plug screws

2шт.

G46895

GASKET

- rubber, filter element

2шт.

G46898

SEAL - rubber, shut-off valve plunger

1шт.

G49080

PLUG

SCREW - air vent and drain plug

2шт.

138-6

LOCK PIN,1/16" x 1/2", Slotted

ROLL PIN - shut-off lever (1/16" x 1/2")

1шт.

G45288

X

ELEMENT - filter (includes (2) G46895 gasket), parts for G45316 final stage

1шт.

G45389

BOWL

- sediment (includes screw, gasket and ring), parts for G45316 final stage filter

1шт.

G46886

O-RING

GASKET - air vent and drain plug, parts for G45316 final stage filter

2шт.

G46887

SEAL

GASKET - filter stud to bowl, parts for G45316 final stage filter

1шт.

G46895

GASKET

- rubber, filter element, parts for G45316 final stage filter

2шт.

G49080

PLUG

SCREW - air vent and drain plug, parts for G45316 final stage filter

2шт.

G49406

RING, LOCKING

RING - retaining, filter stud to bowl, parts for G45316 final stage filter

1шт.
