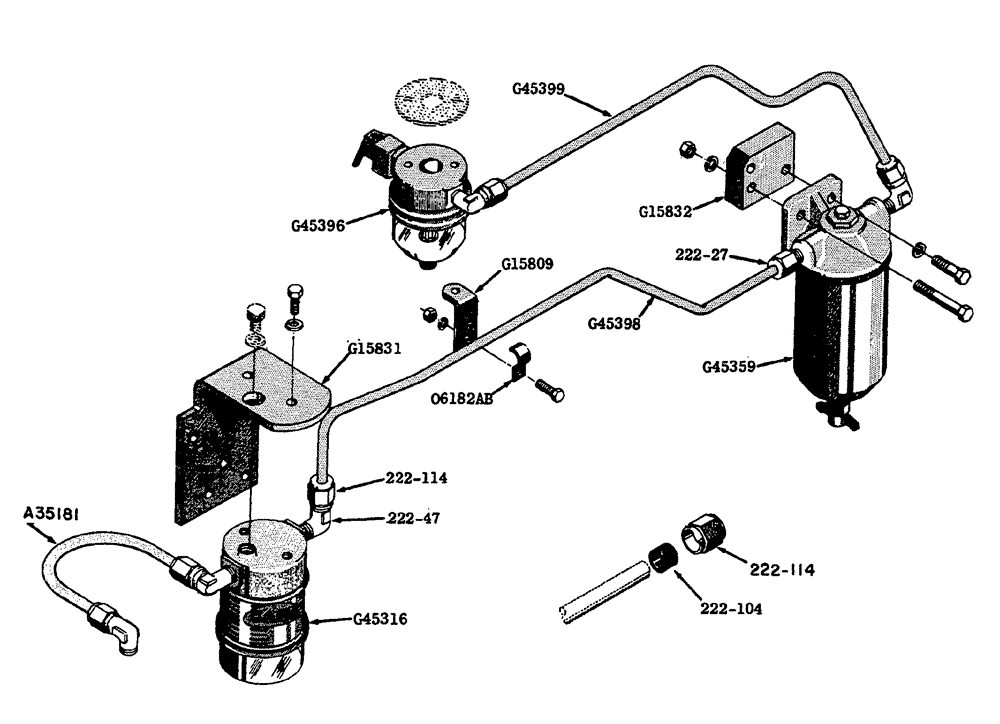

Запчасти Case IH 630 (036) - FIRST STAGE FUEL FILTER SYSTEM (03) - FUEL SYSTEM

G15809

BRACKET - fuel line clip

1шт.

G15831

BRACKET - final stage filter

1шт.

5/16" x 5/8" N.C. hex hd. bolt w/lockwasher

2шт.

G15832

BRACKET - first stage filter

1шт.

3/8" x 1-1/4" N.C. hex hd bolt w/lockwasher

1шт.

G45316

FILTER - fuel, final stage (See Fig. 37)

1шт.

5/16" x 5/8" N.C. hex hd. bolt w/lockwasher

2шт.

G45359

SPARE PART fuel, first stage (See Fig. 36)

1шт.

3/8" x 2-1/4" N.C. hex hd. bolt w/hex nut and lockwasher

2шт.

G45396

BOWL - fuel (includes shut-off valve) (See Fig. 36)

1шт.

A35181

SPARE PART LINE - fuel, final stage filter to pump (includes nuts and sleeves)

1шт.

G45398

LINE - fuel, first stage to final stage filter (includes sleeves and nuts)

1шт.

G4S399

LINE - fuel, tank to first stage filter (includes sleeves and nuts)

1шт.

06182AB

CLIP - fuel line

1шт.

5/16" x 1/2" N.F. hex hd. bolt w/hex nut and lockwasher

1шт.

165-111

HEX SOC SCREW,1/4" - 28 x 5/8"

CAP - fuel bowl to tank (1/4" x 5/8" socket hd.)

2шт.

1/4" E.T. Shakeproof lockwasher

2шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

fuel line to first stage filter (68FL-3/8" O.D. x 1/4" P.T., includes 222-104 sleeve

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ELBOW - fuel line (69FL-3/8" O.D. x 1/4" P.T., includes 222-104 sleeve and 222-114 nut)

1шт.

222-104

SLEEVE,3/8" Tube

fuel line (60FL-3/8")

5шт.

222-114

NUT,5/8"-24

fuel line (61FL-3/8")

5шт.
