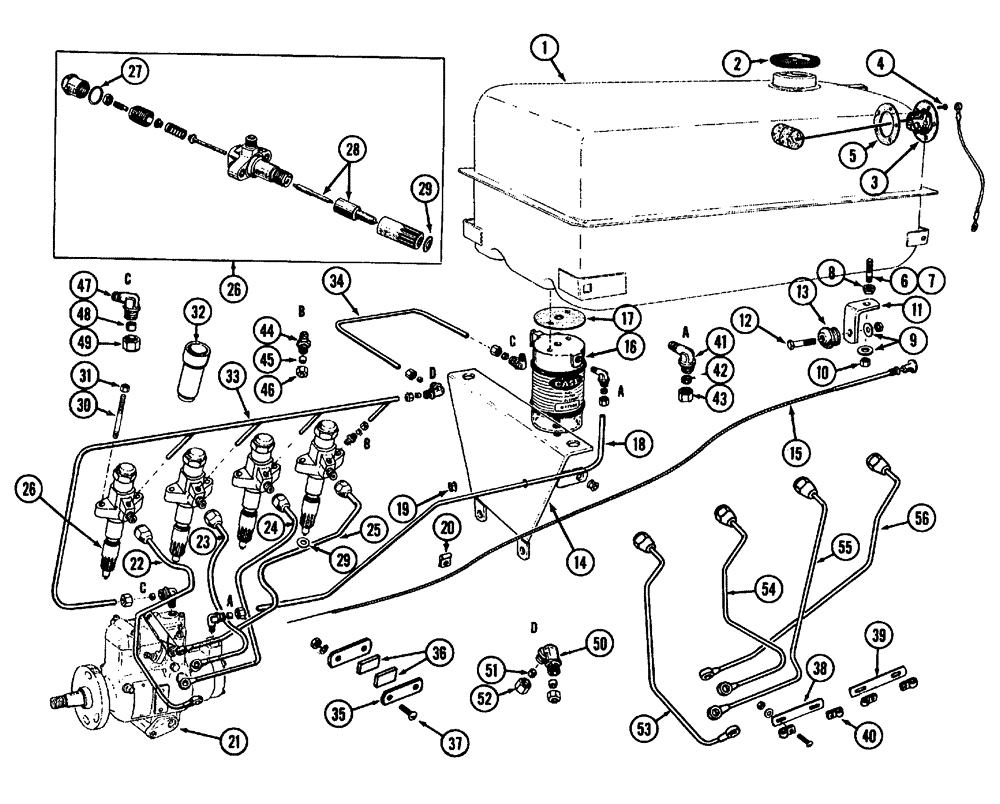

Запчасти Case IH 630 (035) - FUEL TANK AND INJECITON SYSTEM BEFORE TRACTOR #8212357 (03) - FUEL SYSTEM

1

A49139

TANK - fuel

1шт.

2

A33558

CAP

- fuel tank

1шт.

3

A23480

SENDER UNIT

SENDER - fuel gauge

1шт.

4

193-501

SCREW - sender to tank (#10-32 x 7/16" rd. hd. header point)

5шт.

5

A11822

GASKET

-, Serial Range: sender-tank

1шт.

6

G10710

STUD

front, fuel tank (3/8" x 1-3/4")

2шт.

7

O6328AB

STUD - rear, fuel tank (3/8" x 1-3/8")

1шт.

8

A7336

CUSHION

- rubber, fuel tank

3шт.

9

O30577HT

X

WASHER - fuel tank stud

4шт.

10

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, fuel tank stud

3шт.

11

G15765

SUPPORT - rear, fuel tank

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

13

G45344

BUSHING

- rubber, tank support

1шт.

14

G30294

SUPPORT - front, fuel tank

1шт.

15

G45367

WIRE - fuel shut-off

1шт.

16

G45254

SET OF PARTS

FILTER - fuel (See Fig.37)

1шт.

165-111

HEX SOC SCREW,1/4" - 28 x 5/8"

SCREW - filter to tank, 1/4" x 5/8" N.F. socket hd.

2шт.

193-60

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" E.T. Shakeproof

2шт.

17

G46874

GASKET

-, Serial Range: filter-tank

1шт.

18

G45377

SPARE PART

LINE - fuel, Serial Range: filter-pump

1шт.

19

G49665

BUSHING - nylon, fuel, Serial Range: line-support

1шт.

20

O2825AB

X

CLIP - shut-off, Serial Range: wire-block

1шт.

21

A35775

PUMP

- fuel injection (w/dry clutch) See Fig. 40

1шт.

A35776

PUMP

- fuel injection (w/torque converter) See Fig. 40

1шт.

22

A35058

TUBE

- injection pump to #1 injector

1шт.

23

A35059

TUBE

- injection pump to #2 injector

1шт.

24

A35060

TUBE

- injection pump to #3 injector

1шт.

25

A35061

TUBE

- injection pump to #4 injector

1шт.

26

A49056

NOZZLE CAP

INJECTOR - fuel, complete (incl. Ref. 27, 28 and 29)

4шт.

27

G46885

GASKET

- injector cap

4шт.

28

A35085

NOZZLE CAP

NOZZLE - fuel injector

4шт.

29

G49068

GASKET

- seat, Serial Range: injector-liner

4шт.

30

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

8шт.

32

G11724

LINER

-, Serial Range: injector-head

4шт.

33

A36511

PIPE

TUBE - manifold, leak off (includes fittings)

1шт.

34

G45378

TUBE -, Serial Range: leak-off-filter

1шт.

35

09970AB

CLAMP - injection tube

2шт.

36

09973AB

CUSHION - clamp

2шт.

37

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

#10-24 x 1" rd. hd.

2шт.

129-7

NUT,Hex, #10 - 24

hex #10-24

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

38

G15969

STRAP - support, injection tube front (Before eng #2003318)

1шт.

39

G15970

STRAP - support, injection tube rear (Before eng #2003318)

1шт.

40

G46395

CLAMP - nylon, injection tube (Before eng #2003318)

4шт.

41

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- fuel line, filter to pump, 3/8" x 1/4" (incl. Ref. 42 & 43)

2шт.

42

222-104

SLEEVE,3/8" Tube

- tube, 3/8"

2шт.

43

222-114

NUT,5/8"-24

NUT - tube, 3/8"

2шт.

44

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off manifold, Includes Ref. 45 & 46 7/16"-24 x 1/8" NPTF

4шт.

45

222-101

SLEEVE,3/16" Tube

- tube, 3/16"

4шт.

46

222-111

TUBE NUT,7/16" - 24

NUT - tube, 3/16"

4шт.

47

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- leak-off to pump & filter, 5/16" x 1/8" (incl. Ref. 48 & 49)

2шт.

48

222-103

SLEEVE,5/16" Tube

- tube, 5/16"

2шт.

49

222-113

TUBE NUT,9/16"-24

NUT - tube, 5/16"

2шт.

50

222-133

ELBOW,90 Degree, 9/16"-24

- leak-off manifold to return tube (incl. Ref. 51 & 52)

1шт.

51

222-103

SLEEVE,5/16" Tube

- tube, 5/16"

2шт.

52

222-113

TUBE NUT,9/16"-24

NUT - tube, 5/16"

1шт.

53

NS

NOT SERVICED

TUBE - injection pump to #1 injector (old style)

1шт.

When replacing any of the old style injector tubes it is recommended that Ref. 22, 23, 24, 25, 35, 36 and 37 be used.

1шт.

54

NS

NOT SERVICED

TUBE - injection pump to #2 injector (old style)

1шт.

When replacing any of the old style injector tubes it is recommended that Ref. 22, 23, 24, 25, 35, 36 and 37 be used.

1шт.

55

NS

NOT SERVICED

TUBE - injection pump to #3 injector (old style)

1шт.

When replacing any of the old style injector tubes it is recommended that Ref. 22, 23, 24, 25, 35, 36 and 37 be used.

1шт.

56

NS

NOT SERVICED

TUBE - injection pump to #4 injector (old style)

1шт.

When replacing any of the old style injector tubes it is recommended that Ref. 22, 23, 24, 25, 35, 36 and 37 be used.

1шт.
