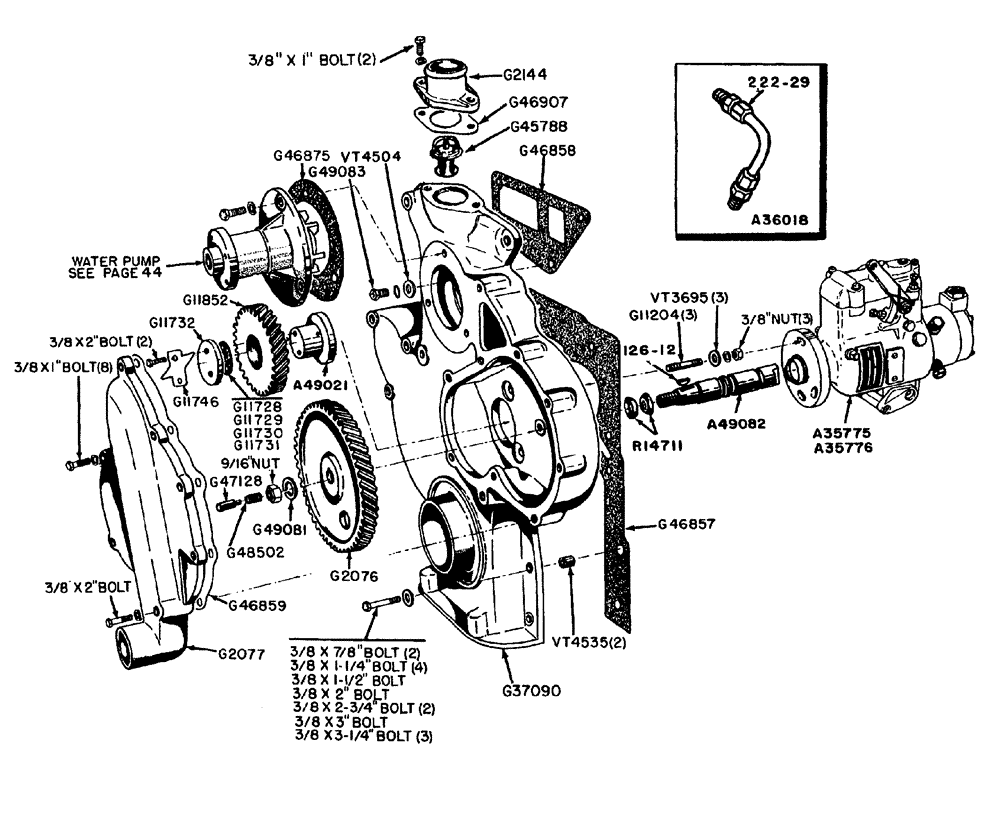

Запчасти Case IH 630 (034) - TIMING GEAR COVER AND FUEL INJECTION PUMP DRIVE (02) - ENGINE

A36018

SPLIT PIN/SAFETY PIN

- water by-pass (includes (2) - 222-29 conn fittings & water tube)

1шт.

G2074

COVER, (Use G37090)

1шт.

G2143

COVER, (Use G37090)

1шт.

G2144

FITTING

CONNECTION - water outlet

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher

2шт.

G37090

CASE

COVER - tuning gear (includes G2144 connection, G46907 gasket, G45788 thermostat and VT4504 washer)

1шт.

3/8" x 7/8" N.C. hex hd. bolt w/I.T. Shakeproof lockwasher

2шт.

3/8" x 1-1/4" N.C. hex hd. bolt w/lockwasher

2шт.

3/8" x 1-1/2" N.C. hex hd. bolt w/lockwasher

2шт.

3/8" x 2" N.C. hex hd. bolt w/lockwasher

1шт.

3/8" x 2-3/4" N.C. hex hd. bolt w/lockwasher

3шт.

3/8" x 3" N.C. hex hd. bolt w/lockwasher

1шт.

3/8" x 3-1/4" N.C. hex hd. bolt w/lockwasher

3шт.

G45788

THERMOSTAT - (180°) Tractor #8191147 and after

1шт.

G46857

GASKET

-, Serial Range: cover-block

1шт.

G46858

GASKET

-, Serial Range: cover-head

1шт.

G46875

GASKET

- water, Serial Range: pump-head

1шт.

G46907

GASKET

- water outlet

1шт.

G49083

BOLT

- drilled, timing gear cover to head (1/2" x 3/4")

1шт.

VT4504

WASHER

BOLT - drilled, (7/8" 0.D. x 13/32" I.D. 1/8")

1шт.

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

3/8" plain washer

2шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Drilled bolt Int Tooth, 1/2"

1шт.

G2076

GEAR

- injection pump drive, fuel

1шт.

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Fuel injection pump and drive #6, 5/32" x 5/8"

1шт.

G2077

COVER ASSY

COVER - pump drive, fuel injection

1шт.

3/8" x 1" N.C. hex hd. bolt w/lockwasher, fuel injection pump and drive

8шт.

3/8" x 2" N.C. hex hd. bolt w/lockwasher, fuel injection pump and drive

1шт.

G11204

STUD

- injection pump mounting (3/8" x 1-7/16"), fuel and drive

3шт.

3/8" N.C. hex nut, fuel injection pump and drive

3шт.

A49021

X

HUB - idler gear, injection pump, fuel and drive

1шт.

G11728

SHIM,.005" Thk

Idler gear, Fuel injection pump and drive .005" Thk

1шт.

G11729

SHIM,.006" Thk

Idler gear, Fuel injection pump and drive .006" Thk

1шт.

G11730

SHIM,.007" Thk

Idler gear, Fuel injection pump and drive .007" Thk

1шт.

G11731

SHIM,.009" Thk

Idler gear, Fuel injection pump and drive .009" Thk

1шт.

G11732

PLATE

- thrust, idler gear, fuel injection pump and drive

1шт.

G11746

PLATE

- lock, idler gear, fuel injection pump and drive

1шт.

3/8" x 2" N.C. hex hd. bolt, fuel injection pump and drive

2шт.

G11852

GEAR

- idler, injection pump (includes bushing), fuel and drive

1шт.

A35775

PUMP

- fuel injection (w/dry clutch drive)

1шт.

The fuel injection pump is packaged for repairs and includes A49082 drive shaft, G47128 plunger, G48502 spring, 2-R14711 seals, G49081 washer and 9/16" N.F. hex jam nut. It is pre-set for engine speed according to type of drive on tractor

1шт.

A35776

PUMP

- fuel injection (w/Case-O-Matic drive), pump and drive

1шт.

The fuel injection pump is packaged for repairs and includes A49082 drive shaft, G47128 plunger, G48502 spring, 2-R14711 seals, G49081 washer and 9/16" N.F. hex jam nut. It is pre-set for engine speed according to type of drive on tractor

1шт.

G45218

PUMP - injection (Use A35775 or A35776) See Fig. 40, fuel and drive

1шт.

G45420

PUMP - injection (Use A35775 or A35776) See Fig. 40, fuel and drive

1шт.

G46859

GASKET

- gear cover, fuel injection pump and drive

1шт.

R14711

SEAL

- pump drive shaft, fuel injection

2шт.

A49082

SHAFT - pump drive, fuel injection

1шт.

G47128

PLUNGER

- thrust spring, pump drive shaft, fuel injection

1шт.

G48502

SPRING

- thrust, pump drive shaft, fuel injection

1шт.

G49081

WASHER

- lock, pump drive shaft, fuel injection

1шт.

9/16" N.F. hex jam nut, fuel injection pump and drive

1шт.

VT3695

X

WASHER - clipped, pump mounting stud, fuel injection and drive

3шт.
